Service Manual Combics
RS-232/485 Pin Assignment
Option (A6/A7)

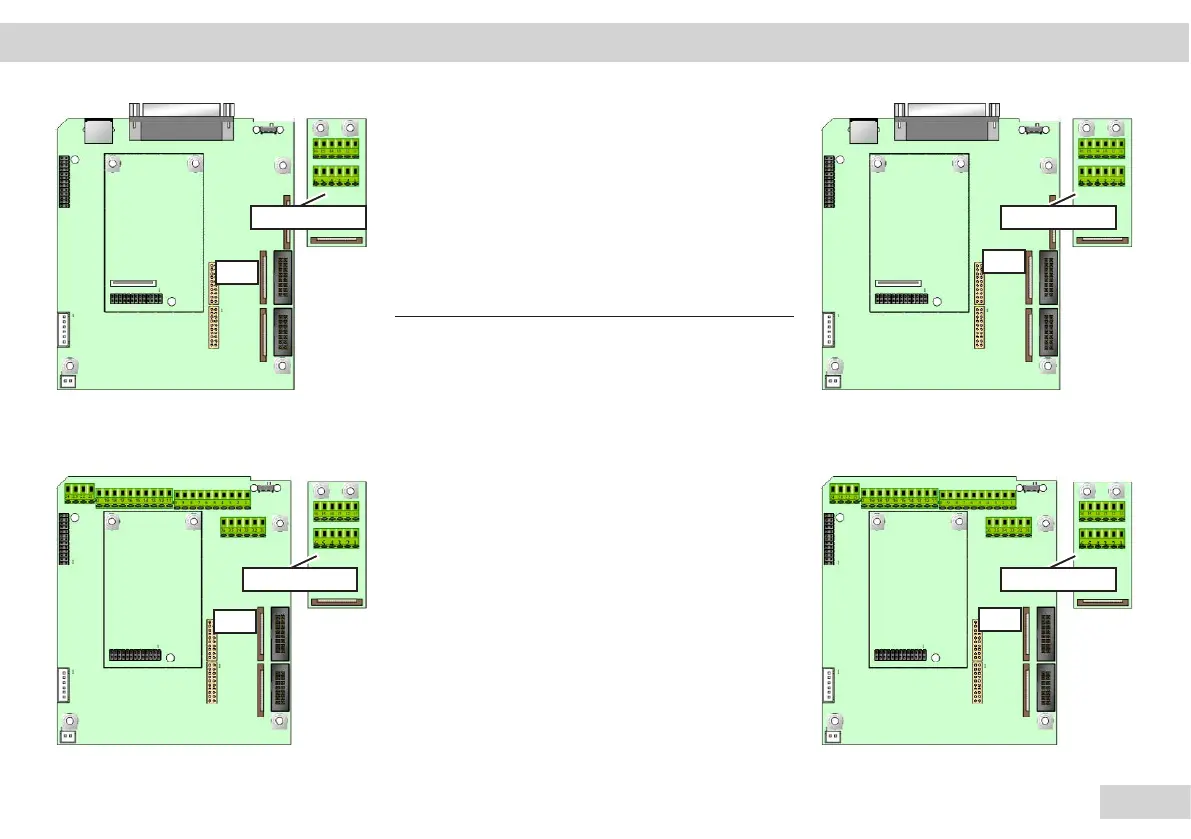

DSUB or screw terminals Combics 1 interface
RS-232/485 (see left image)
DSUB or screw terminals Combics 2/3
(see right image)
RS-232/485 interface
Connection Function
1CTS
2 DTR
3 RxD
4 TxD
5 GND
6 Adjust Lock
11 TxD/RxD+
12 TxD/RxD-
13 LINE_OUT
14 LINE_OUT
15 GND
16 GND
A6/7, RS232/485
A6/7, RS232/485
A6/7, RS232/485
A6/7, RS232/485
Interface Description | PCBs
BU2
BU2
BU2
BU2
