43
Service Manual Combics
Test Adapter for Combics 1| 2 | 3
Test adapters are required for testing interfaces. They connect the output signals of the
interfaces with their inputs. Different adapters are required depending on the device (CAIS
or CAISL) and whether or not CAIS devices have a cable with a DSUB25 or a Mini-DIN
connection. The configuration also depends on the type of interface. If you are talking
about CAIS devices (IP69) without a cable, then a standard cable must be connected to the
associated adapter for the test at the corresponding screw terminals.
Test Adapter for Com 1 and Com 2
The connections can also be linked directly to the clamp connectors.

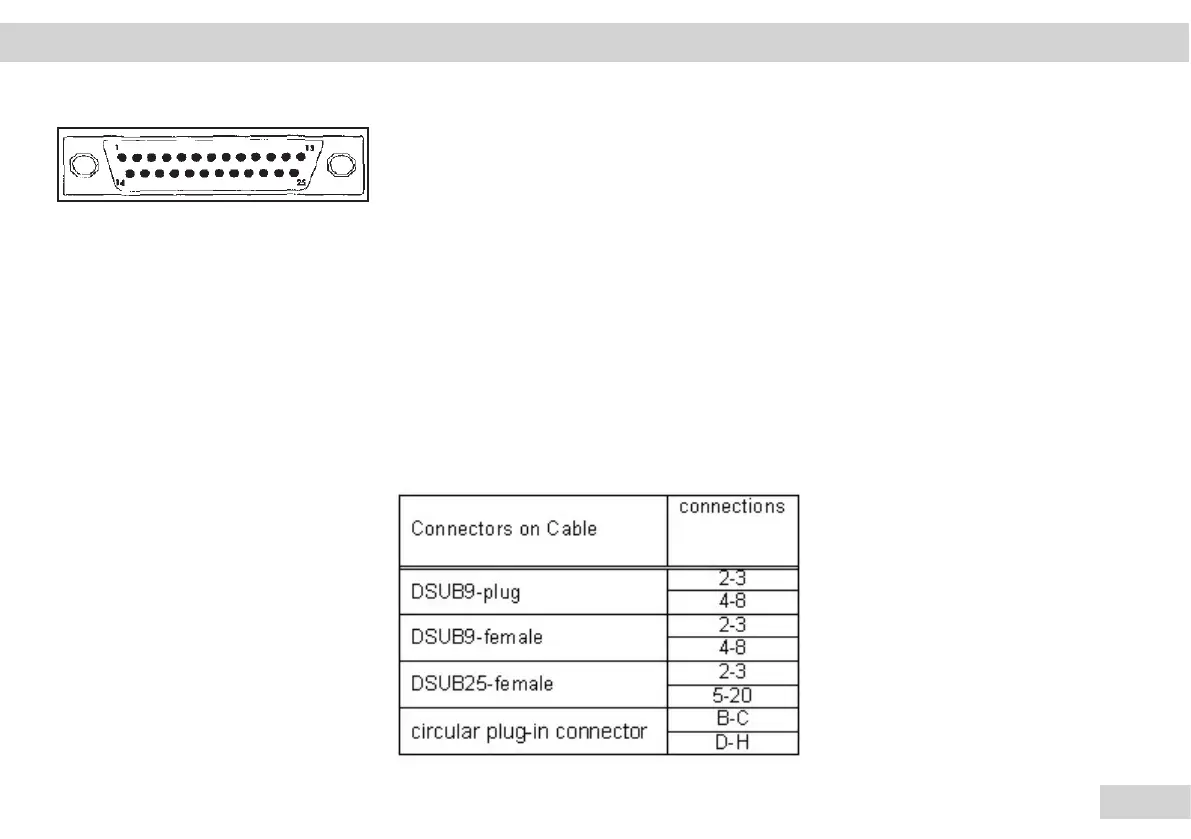

Test adapter for COM1 for interface options A1 and A2.
The adapter wiring for the interface test:
COM 1, COM 2
A1 (RS-232, UNICOM)
and A2 (RS-422, UNICOM)
is included in the following table.
Operating Design | Test Adapter Test Combics | 1 | 2 | 3
