Service Manual Combics
Device Description
Minebea Intec Combics indicators or complete scales are mainly used in industrial applications. Due to the various options available,
these models are built in accordance with customer wishes.

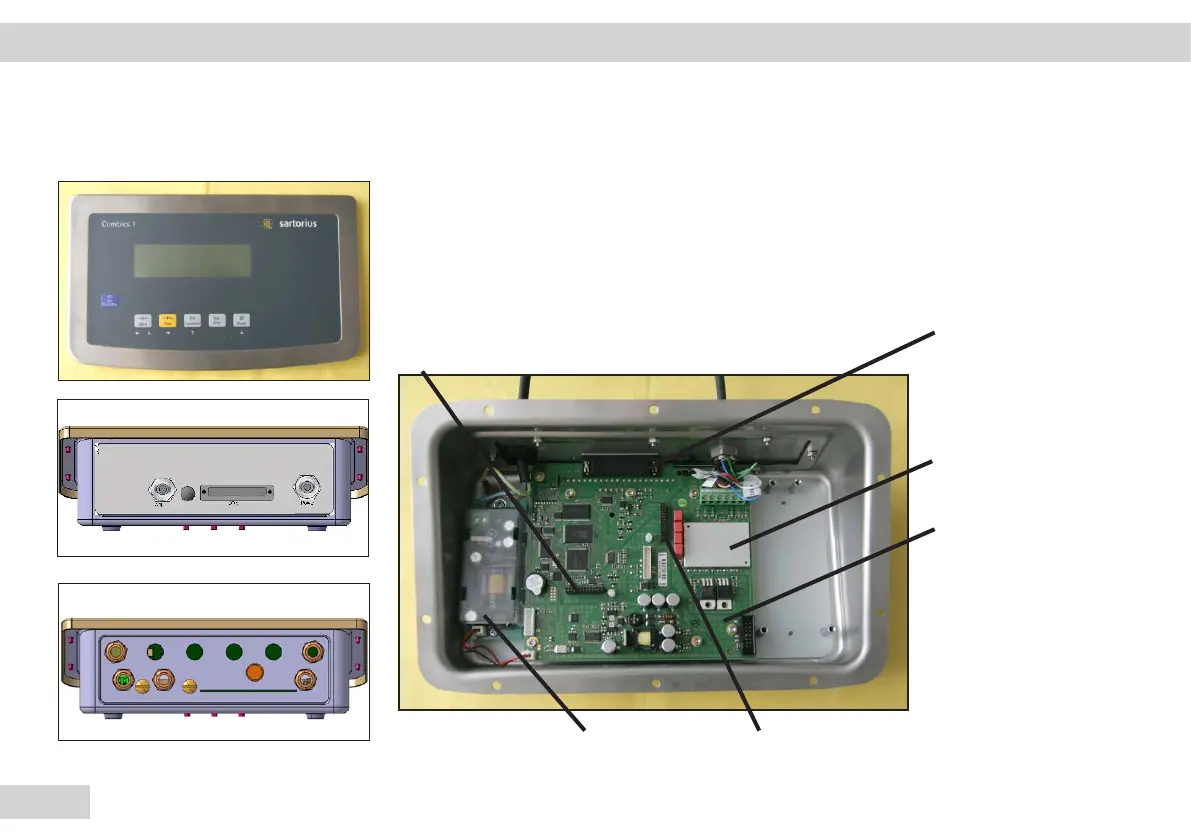

The Combics 1 indicator includes:
– Front plate with keypad and digital display
– Combics indicators (CAIS1 or CAISL1) come with either
a D-Sub 25 (IP44) or cable glands (IP69).
The digital PCB (see page 52) can also be integrated for
option A6/A7/A10.
Main PCB with H8S
processor, analog/digital
converter and DC/DC
converter
Power supply PCB
Unicom interfaces in several versions
com1 interface in
2 versions
Alibi memory (optional)
Onboard ADC
2*3000e multi-interval
CAIS_1b.tif
