4.4 Hardware construction
4.4.1 Notes for connection

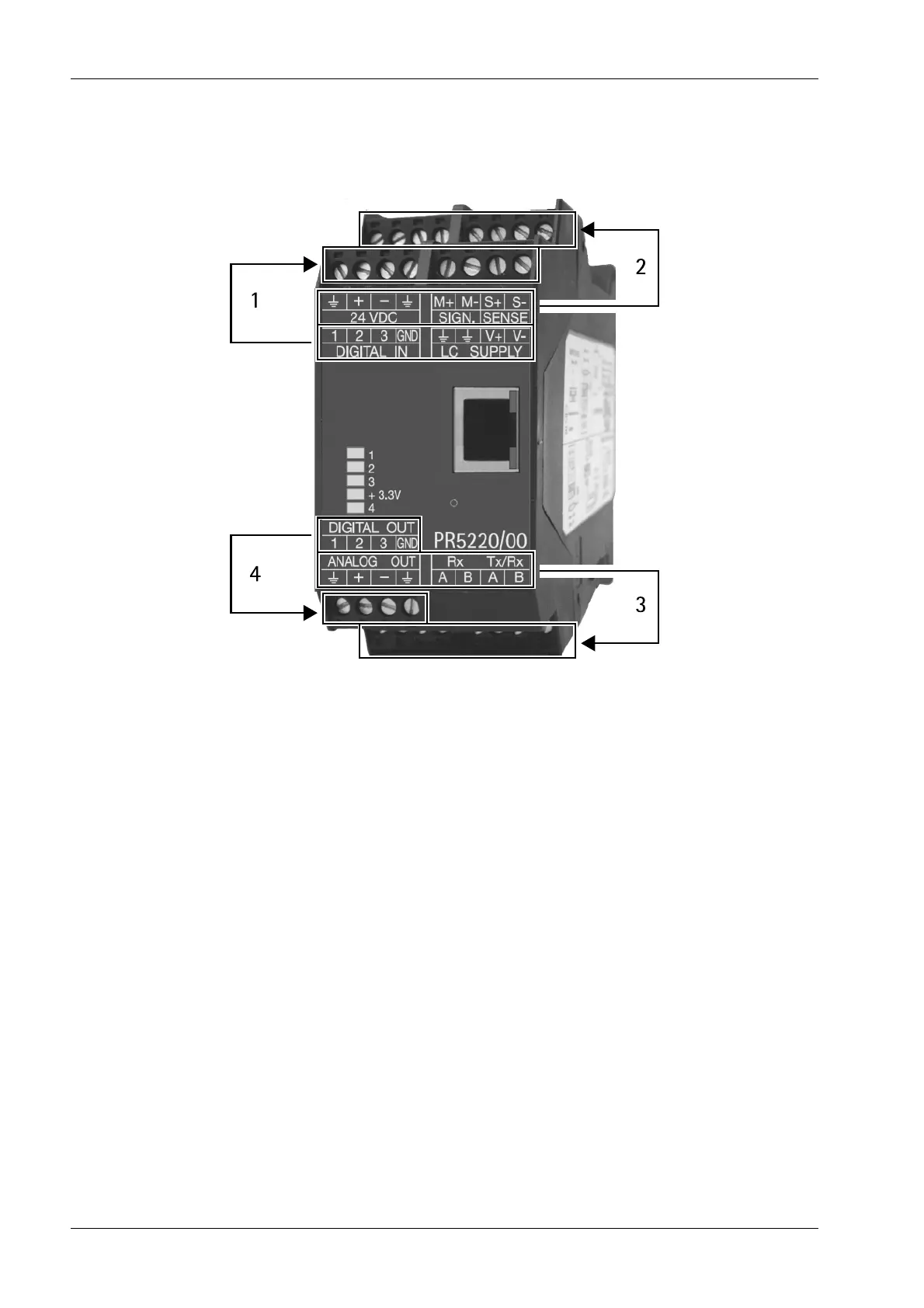

The labels on the front side of the transmitter are assigned to the clamps as follows:
- Lower line to the front clamps (1)
- Upper line to the back clamps (2)
- Lower line to the back clamps (3)
- Upper line to the front clamp (4)
4.4.2 Network port
The device has an internal Ethernet port.
4.4.2.1 Ethernet port
The Ethernet port contains a powerful TCP/IP interface connection with transfer rates of
10 or 100 Mbit/s.
Function tests can be made via the LEDs (green and yellow) in the RJ-45 socket.
Transmitter Series PR 5220 4 Device installation
Minebea Intec EN-26
