4.5.2 DeviceNet interface

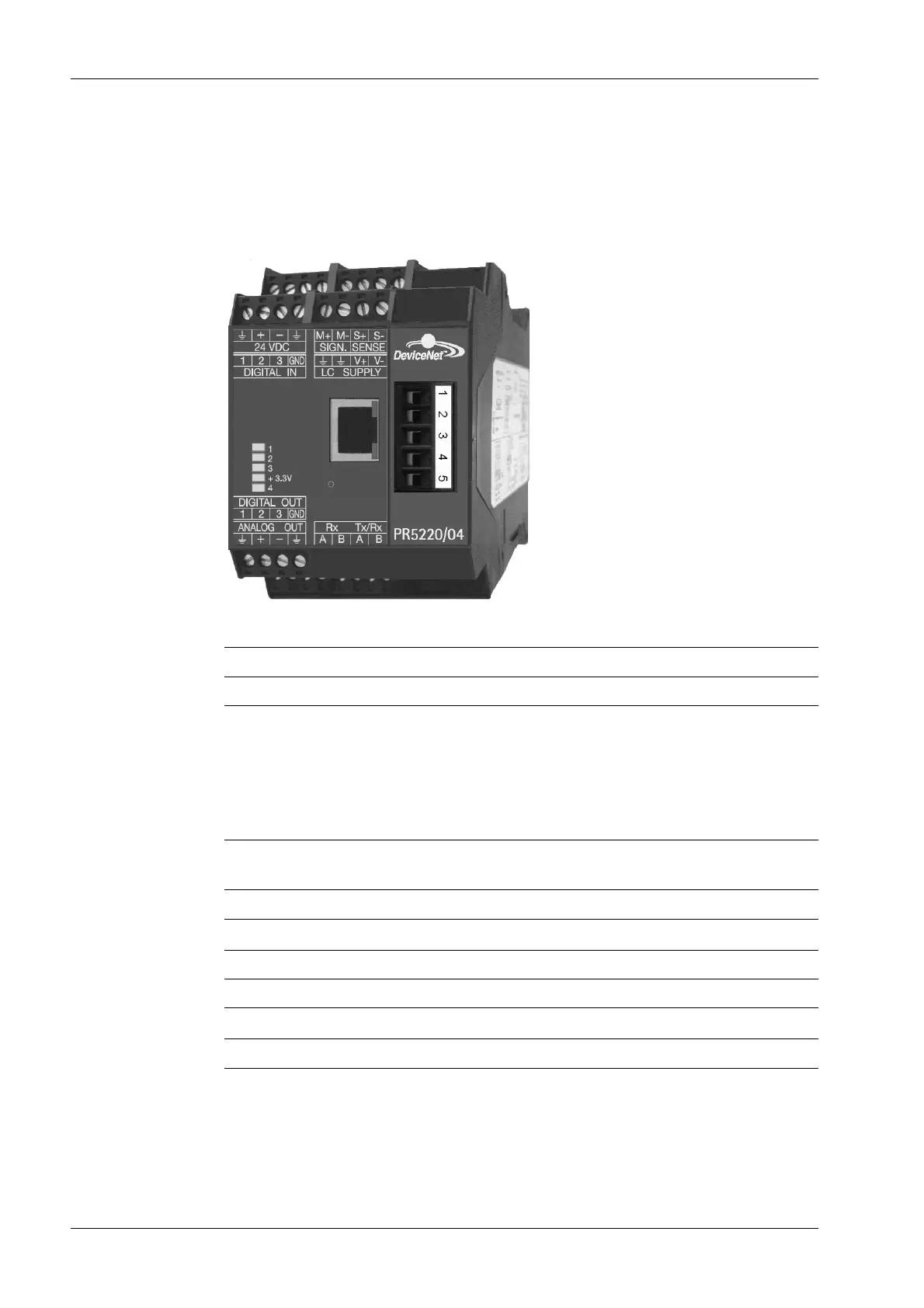

The DeviceNet interface has the type designation PR 5220/04.
It is a complete DeviceNet adapter (slave) with CAN controller and transfer rates up to
500 kbit/s.
The DeviceNet connection is established by 5-pin terminal.
Specications
Description Data
Transmission rate 125, 250 and 500 kbit/s
Protocol DeviceNet Master Slave
- Polling procedure (polled IO)
- CRC error recognition according to IEC 62026 (EN 50325)
- Max. 64 station nodes
- Data width max. 512 byte "input & output"
Conguration EDS le "sag_5220.eds"
MAC-ID (162)
Potential isolation Yes, optocoupler and DC/DC converter
Bus termination
120  at the cable ends
Bus load 33 mA @ 24 V DC
Cable type DeviceNet; color: petrol green; 2x2 twisted pair; screened
Cable impedance
150 
Cable length
Depends on cable type and transmission rate: 100500 m
