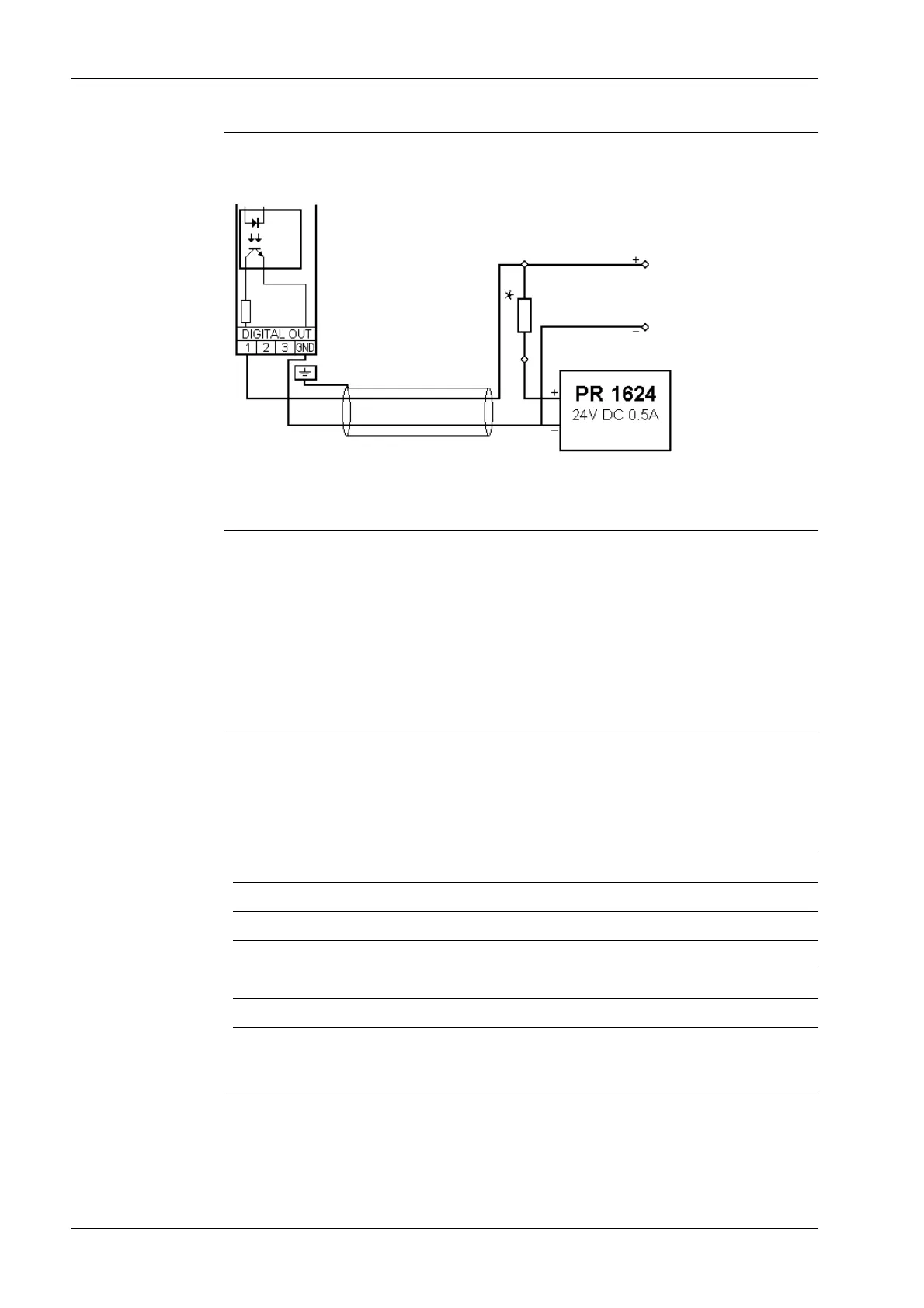

Example:
Voltage output
When the output 1 is active (true), the output voltage drops from 24/12 V DC to <3 V DC.
* The load resistance must be 2.2/1 k.
4.4.7 Connecting analog load cells and platforms
4.4.7.1 General information
Load cells can be connected to the device doing the following:
- One load cell directly, see Chapter 4.4.7.2 and 4.4.7.3
- several load cells in the junction box via connecting cable, see Chapter 4.4.7.4 and
3.4.1
Note:
The colors listed here are valid for the Minebea Intecload cells and connection cables of
type "PR "
Color code
bk = black
bu = blue
gn = green
gy = gray
rd = red
wh = white
For additional information on the connection of load cells and junction boxes refer to
the corresponding installation manuals.
Transmitter Series PR 5220 4 Device installation
Minebea Intec EN-38
