Description Data
Supply voltage max. 24 V +10% external
Switching current max. 30 mA
Signals GND (-) common for all outputs
Potential isolation Yes, via optocoupler
Cable length max. 50 m screened

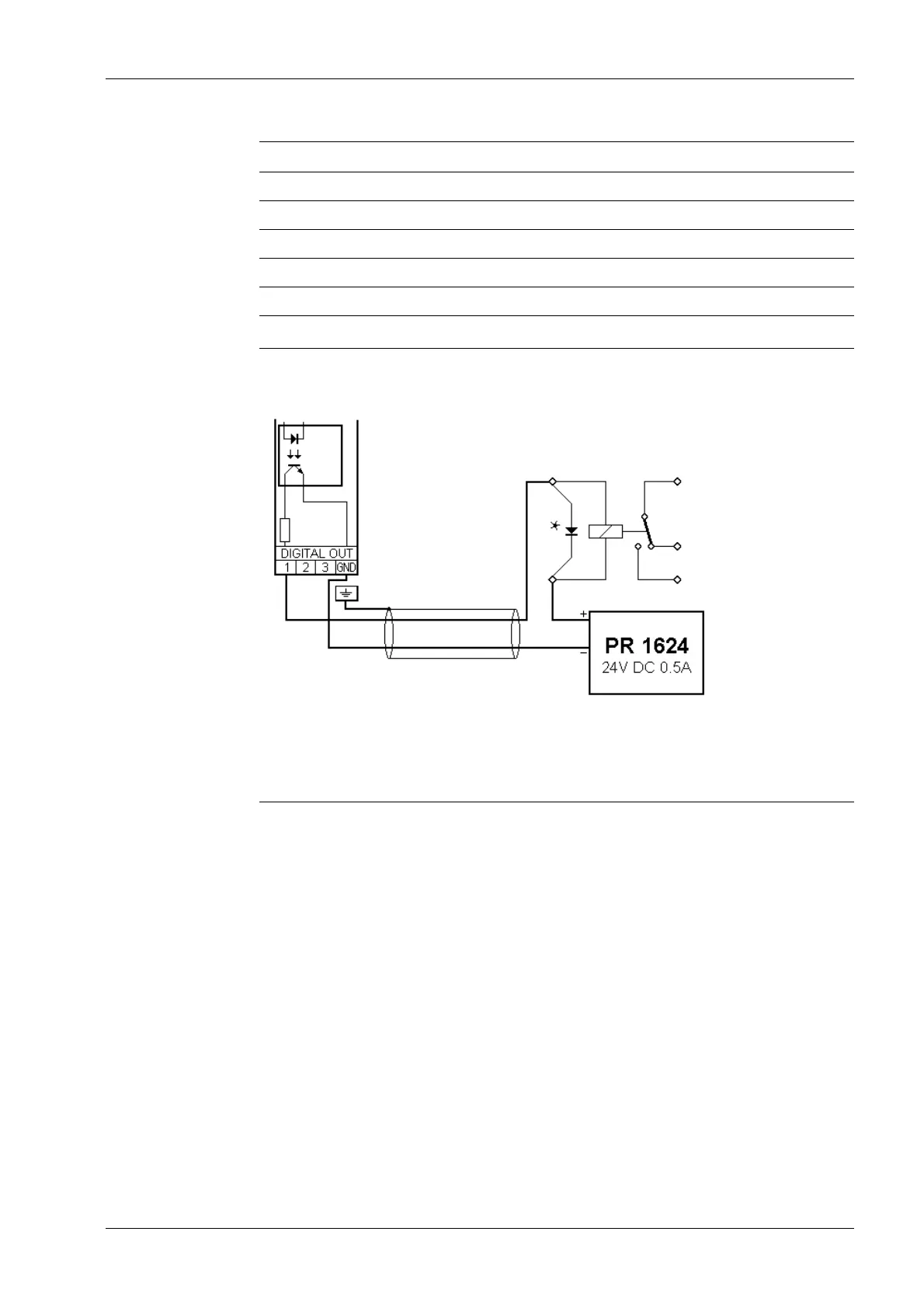

Example:
Relay control (power output)
* inductive load, supression diode
The relay switches when the output 1 is active (true).
To protect the output circuit, relays must be equipped with free-wheel diodes.
