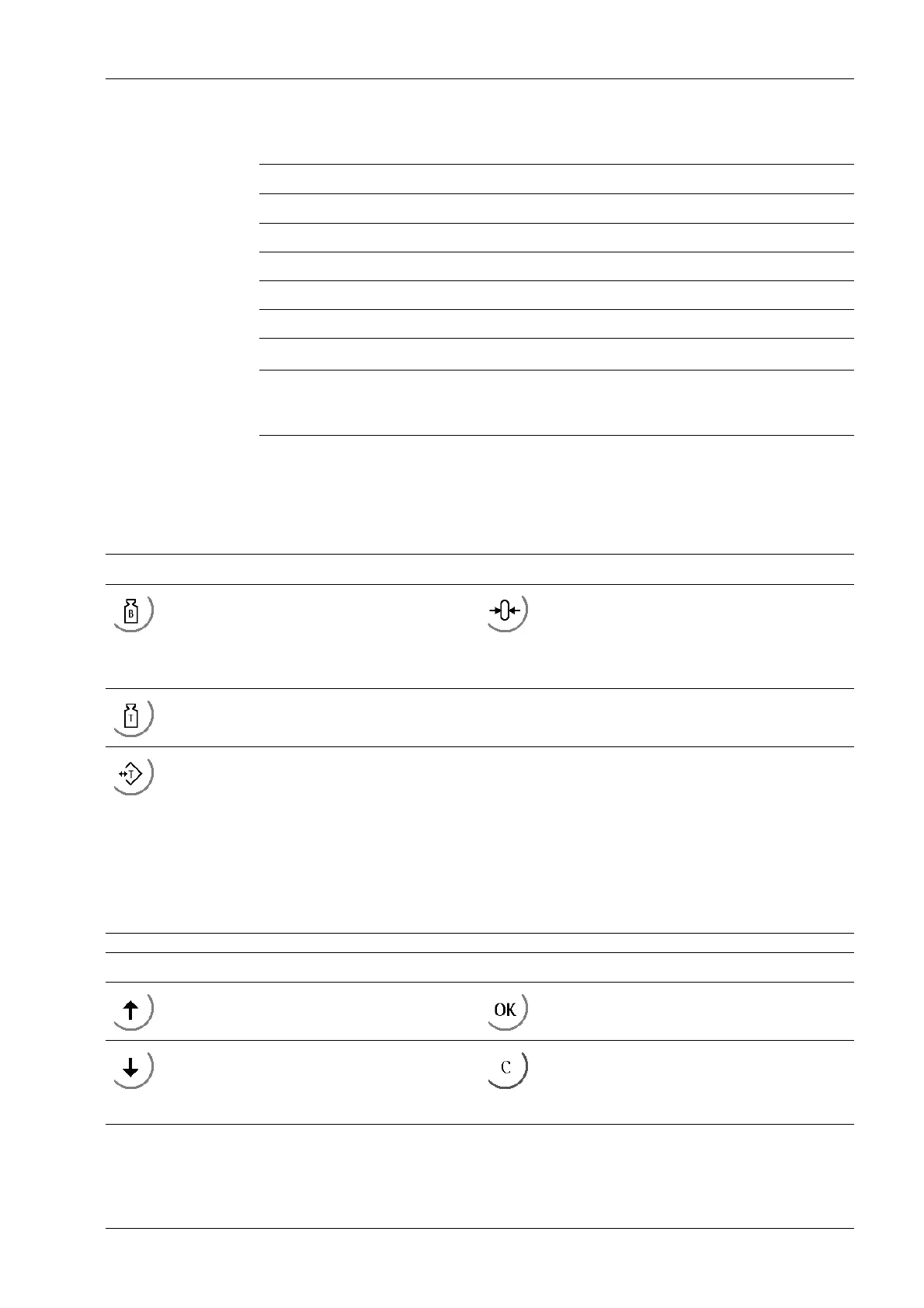

Minebea Intec PR 5220/06 User Manual

Weight status
LED Standstill ± Null < Null or > FSD
1 lit
2 lit
3 lit
+3.3V
4
Note:
For weight error status, see Chapter 16.2.
3.5.4 Operating elements
3.5.4.1 User interface
The following tables show the basic meanings of symbols on the operator interface.
Indicator keys
Display gross weight Sets gross weight to zero, provided that
- weight value is stable;
- weight is within zero setting range.
This function depends on the conguration.
Display tare weight.
Taring
The current gross weight is stored in
the tare memory, provided that
- weight value is stable;
- the instrument is not in error sta-
tus.
This function depends on the congu-
ration.
Navigation/menu keys
Scroll up in the menu. Conrm input/selection.
Scroll down in the menu. - Backspace
- Pressing the delete key deletes indivi-
dual characters (within an entry).
3 Device description Transmitter Series PR 5220
EN-19 Minebea Intec

Minebea Intec PR 5220/06 Specifications

General

Brand	Minebea Intec
Model	PR 5220/06
Category	Transmitter
Language	English
