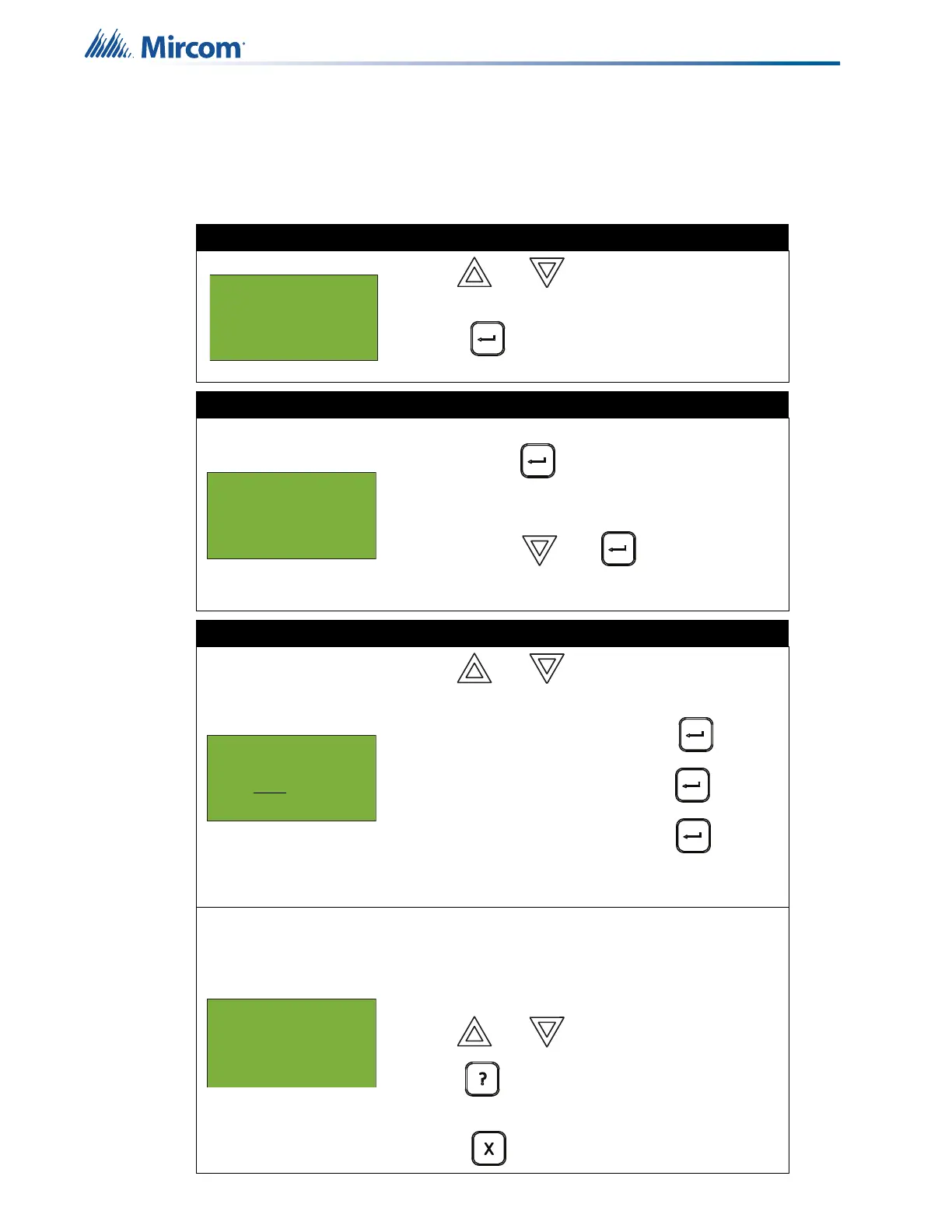

Front Panel Menu Operation
5.1.4 Sensitivity Level
The sensitivity level report is used for annual inspection to validate against a measured
sensitivity. The report displays all detectors on the specified node, card and loop, that have a
sensitivity configured.
Step 1: Select Sensitivity Level
1. Use and to scroll the cursor to
“Sensitivity lev”.
2. Press to select the Sensitivity Level
submenu.
Step 2: Print or view the sensitivity level
• To print the Sensitivity Level report to the
printer, press when the cursor flashes
beside “Printer”.
• To view the Sensitivity Level report on the
screen, press then to select
“Screen”. Follow the instructions below to
navigate the Sensitivity Level.
Step 3: Select node, card, and loop
1. Use and to scroll through the
numbers.
2. Select the Node number, then press .
3. Select the Card number, then press .
4. Select the Loop number, then press .
• You can also choose all nodes, all cards, or all
loops by selecting ALL.
An example is shown on the left.
The second and third lines pinpoint the exact device.
The fourth line shows the reported sensitivity level of the
device.
• Use and to scroll through the log.
• Hold down for more information on the
logged event.
• Press to exit to the Reports Menu.
- Reports Menu -
1 Event Log
2 Current Levels
4 Sensitivity lev
- Report to -
1 Printer
2 Screen
Select Node, Card
& Loop
Node:ALL
Node 1 Card 1 Lp 1
01-01-011N-S001.001
(CLIP)Heat Det
Lvl: 3.66%
To Next Page
