Configuration
8
Configuration
The shared display consists of a 2 line by 20 characters LCD and control keys. It operates in three basic modes:
status display mode, queue display mode and command mode.

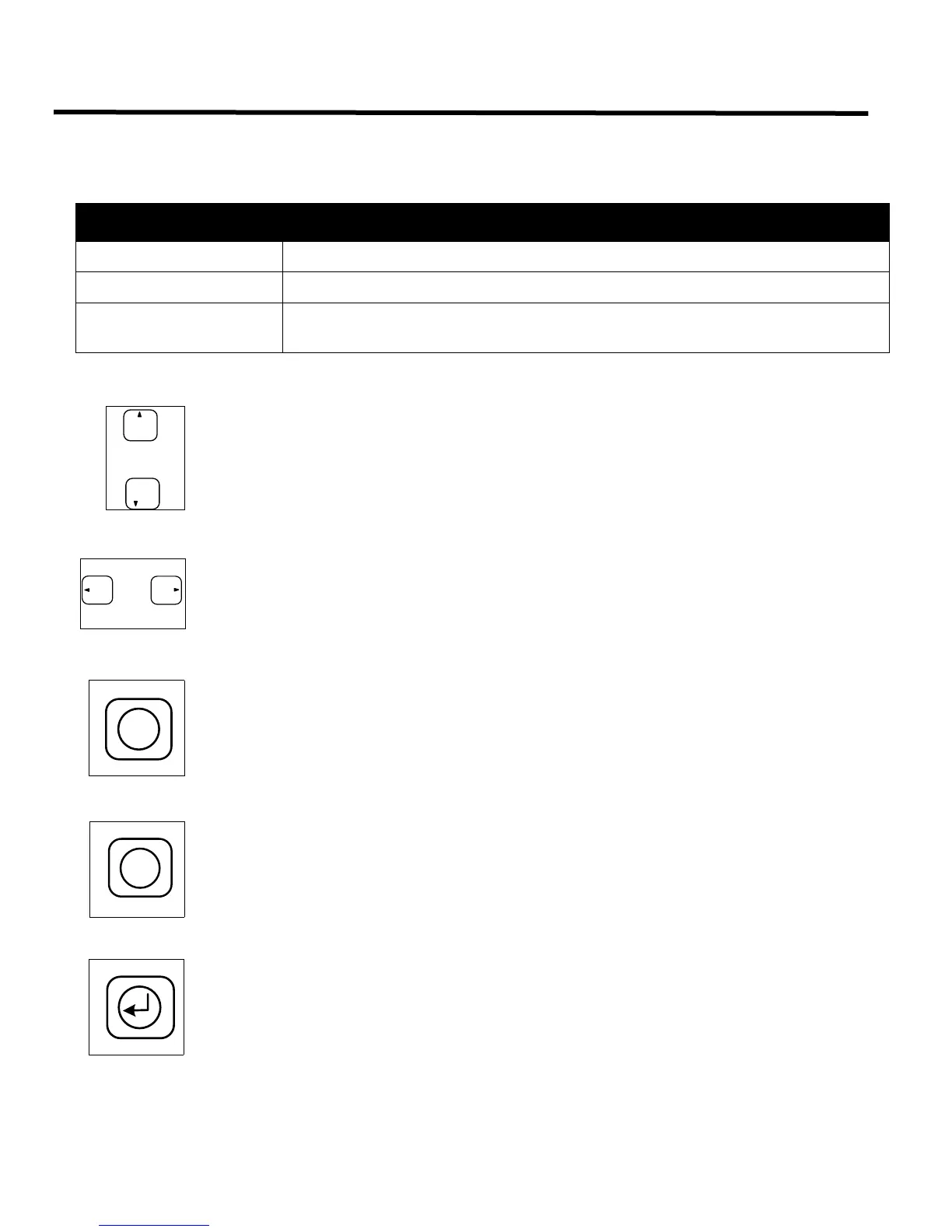

The following push buttons are used by the shared display:
•UP/DOWN - scroll through common alarm, supervisory, trouble and monitor queues.
- scroll through menu selections when in command mode.
RIGHT/LEFT - moves to the next or previous field or digit in command mode.
- make a selection, for example, checking/unchecking the selection box.
- RIGHT key to add items for example Remote LED groups, correlation etc.
- LEFT key to delete items for example LED groups, etc.
INFO - displays additional information for the currently selected item in queue display mode or
when a pre-alarm, alarm verification or retard operation is active in status display mode.
MENU - enter command mode or returns to base menu if already in command mode.
ENTER - accepts currently selected item or menu selection in command mode.
Shared Display Mode Function
Status Status display mode shows system activity when the queues are empty.
Queue Queue display mode is used to browse the status of all active points in the queue.
Command
Command mode allows the user to execute certain commands, perform certain
system tests and configure the system at the front panel.
2
ABC
8
TUV
6
MNO
4
GHI
?
M
