Misonix sonastar SYSTEM-M200 - Figure 3-3 Wireless Footswitch with Integrated IR Receivers on Console Top and Left

Instructions for Use SonaStar Ultrasonic Surgical Aspiration System
IFU-601 Rev T March 2023 Page 25 of 73
The wireless footswitch enables the operator to activate and control the system functions remotely
without physically connecting a cable to the generator. The footswitch functions are: VIBRATION,
VIBRATION+COAG, COAG, and FLUSH.
Four coded Wireless frequencies are available to independently allow use of multiple systems in the
same transmitting distance. Both integrated IR receivers and the wireless footswitch will each have a
corresponding color-coded label and number ending in either 0, 1, 2, 3. The label will appear on the
footswitch and a matching label will appear on the dome top of each integrated IR receiver. The
remote IR receiver does not have a color coded label and will function as required for all four coded
wireless frequencies.
Upon release of a footswitch function a “STOP” command is sent to the console, disabling the function.
The footswitch activation LED on the top of the console may continue to illuminate for a short period of
time after footswitch release-this is normal.
If the footswitch signal is blocked or otherwise interrupted, activation will cease after approximately 2
seconds.

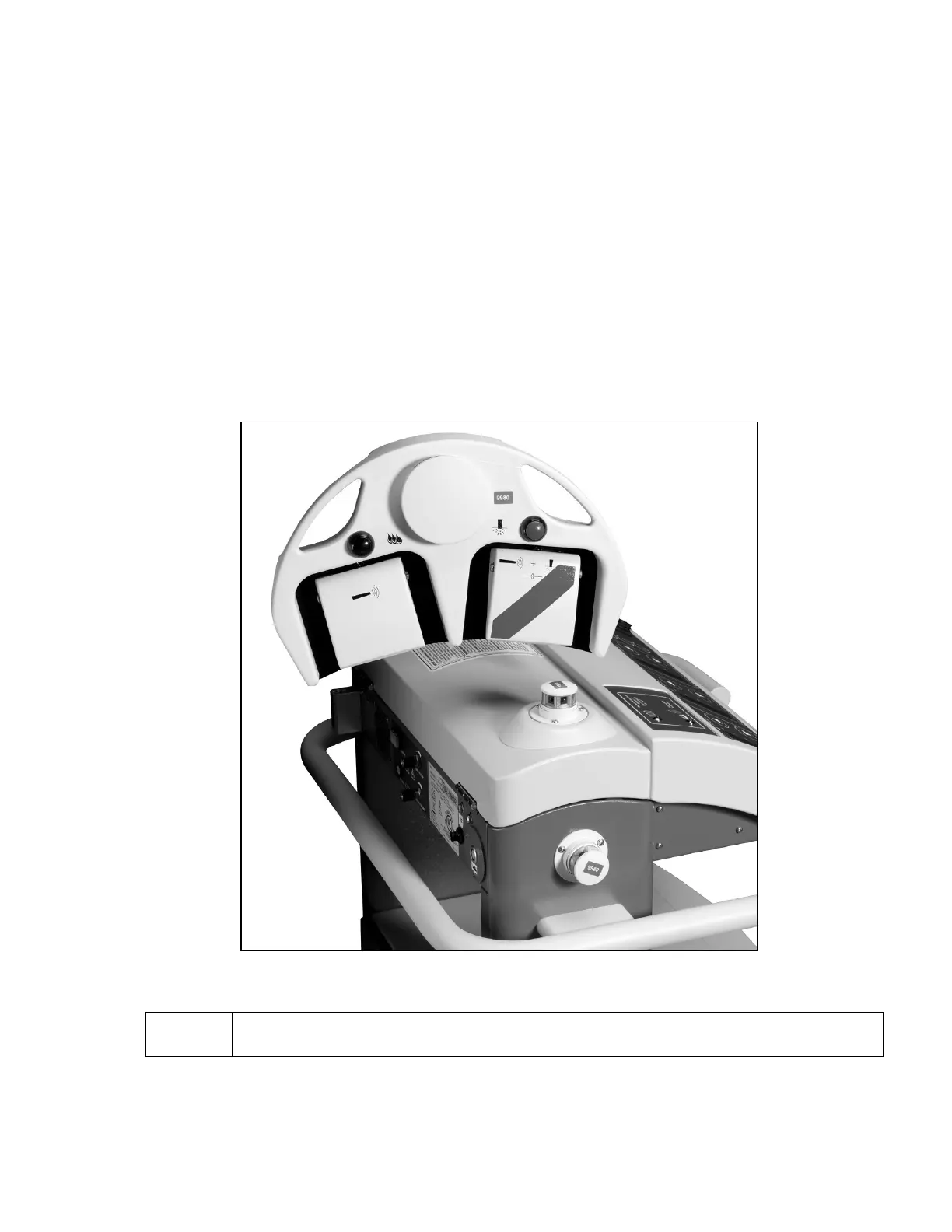

Figure 3-3: Wireless Footswitch with integrated IR Receivers on Console Top and Left Side
Caution The console and wireless footswitch must have the same frequency code number for
proper operation.
