Misonix sonastar SYSTEM-M200 - Electrosurgery Connector Assembly; Figure 5-6 Handpiece with Monopolar Cable Connections

Instructions for Use SonaStar Ultrasonic Surgical Aspiration System
IFU-601 Rev T March 2023 Page 40 of 73
Electrosurgery Connector Assembly
1. The electrosurgery connector is located on the rear cap of the handpiece, adjacent to the cable
strain relief.
2. For electrosurgery capability, plug the appropriate end of the Single-Use Monopolar Handpiece
Cable into the handpiece end, as shown in Figure 5-6.
Note: that this cable is supplied sterile, and is NOT sterilizable.
Warning Improper assembly of Single-Use Monopolar Handpiece Cable to endcap can expose
potentially dangerous electrosurgery voltage. Always make sure the Single-Use Monopolar
Handpiece Cable socket is fir
mly and fully engaged onto the pin
in the e
ndcap.
3. See Chapter 7 for COAG setup and use instructions.

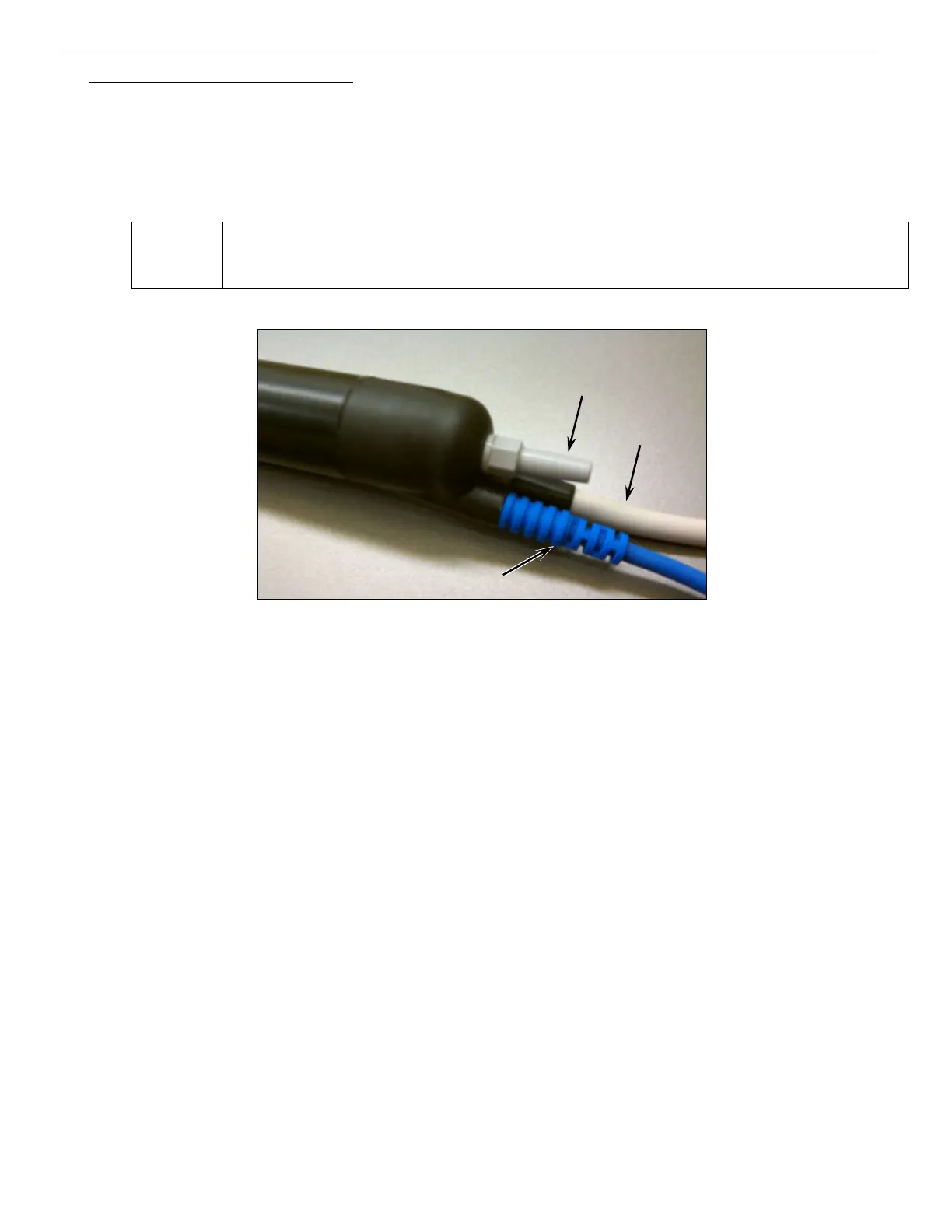

Figure 5-6: Handpiece with Monopolar Cable Connection
1: Aspiration Port
2: Ultrasound Power Cable
3:
Single
-
Use Monopolar
Handpiece Cable
1
2
3
