119
LCD PC E
LCD PC E
-
-
8590 MAINTENANCE
8590 MAINTENANCE
6. To detach the housing, first lift the upper edge and then separate it from the system. (Figure 2-18)
7. Remove five screws fastening the system board’s upper bracket. (Figure 2-19)

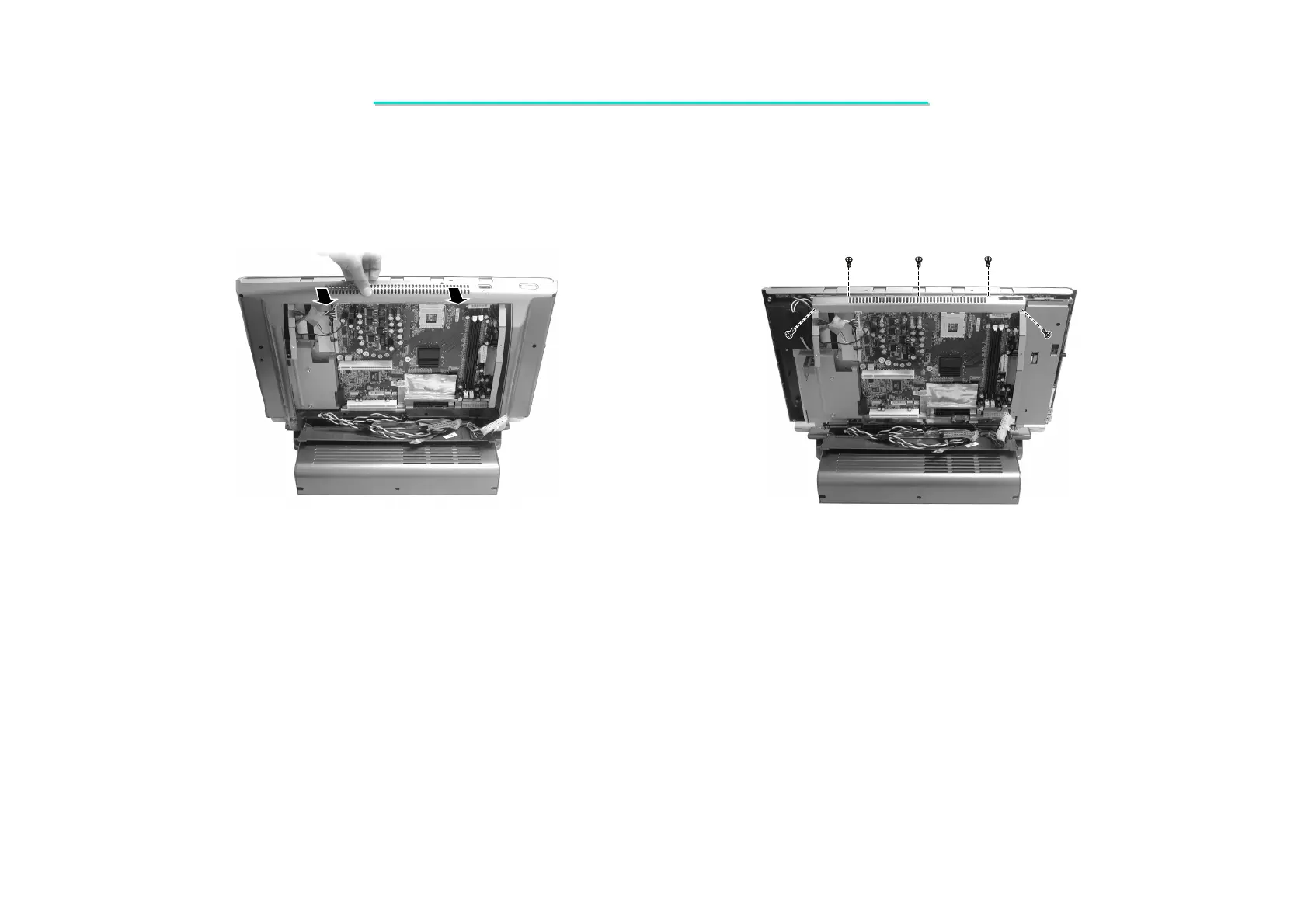

Figure 2-18 Detach the housing Figure 2-19 Remove the upper bracket
