8. To remove the PCMCIA bracket, unscrew one screw. (Figure 2-20)
9. Disconnect the IR sensor’s cable (); inverter board’s cable (); stereo speaker set(L,R) (); LCD’s cable ()
and keyboard’ cable (). (Figure 2-21). (Figure 2-21)







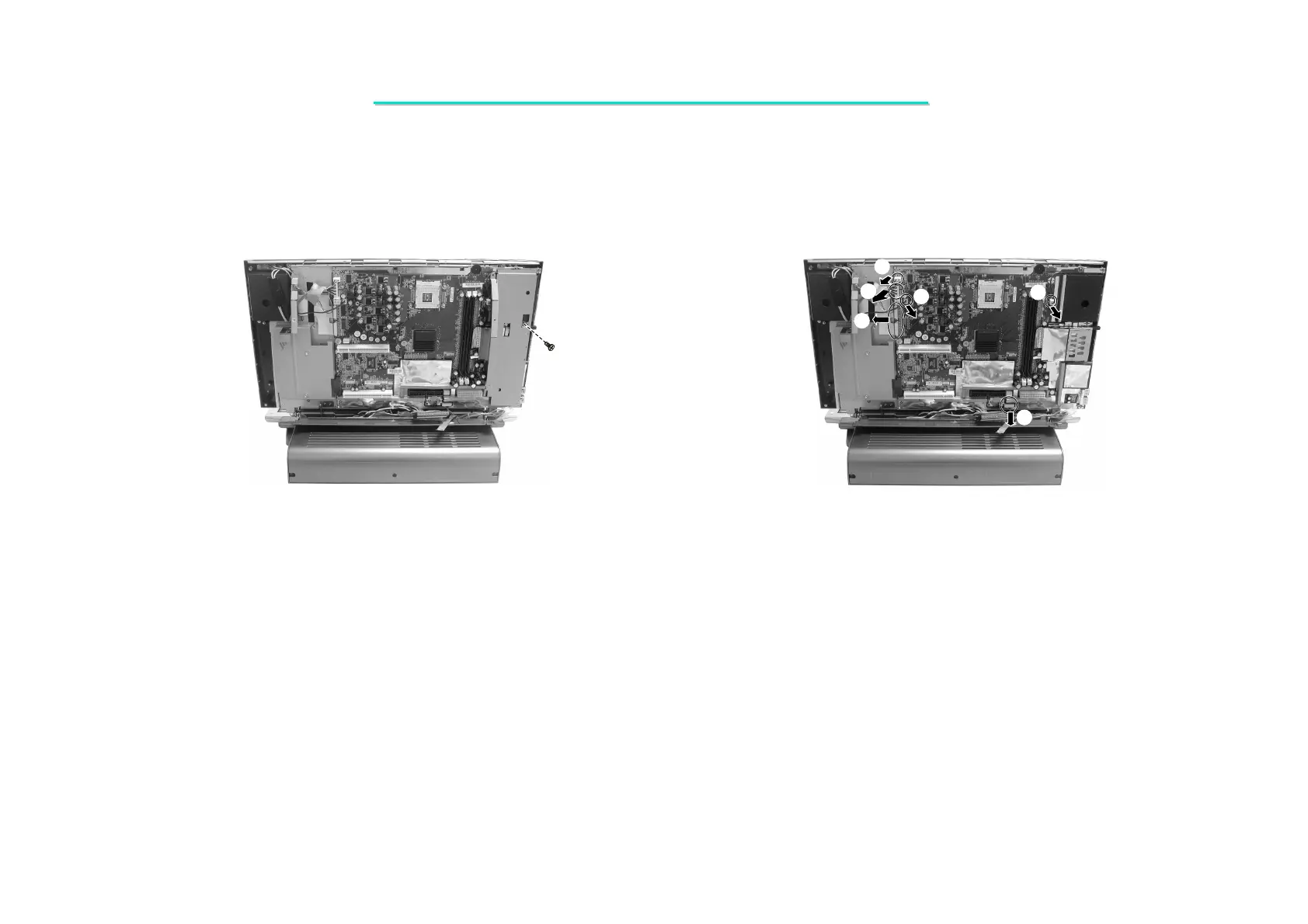

Figure 2-21 Disconnect all the cablesFigure 2-20 Remove the PCMCIA bracket
