21/1531-ASP11301 Uen B3 2016-02-17 8
I
NSTALLING BOARDS

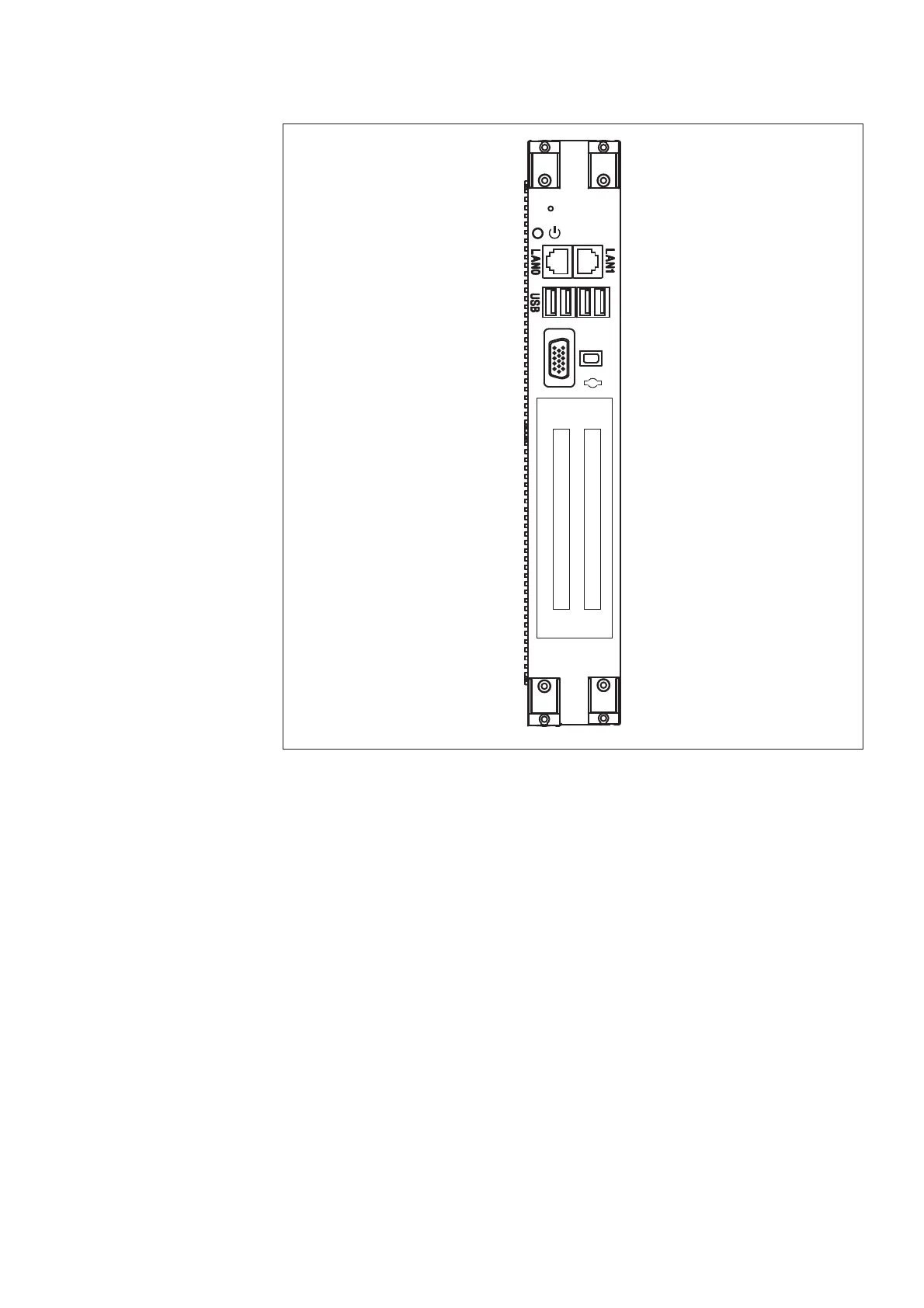

Figure 3: ASU Front Connectors
The SATA disks are located behind a cover. Two disks are used for RAID-1.
M0001172A
ASU-E
SATA 0 SATA 1 1
0
Connector no: 1
Connector no: 2
LED:
Green
Connector no: 3
15 pole
female D-sub
2 RJ 45 ports
4 USB Ports
