3-86 Operation of the origin and the brake screen
3Explanation of operation methods
4) Press function key continuously corresponding to "REL." to release the brake of the specified axis only
while the keys are pressed.
Only while the function key ([F1]) is pushing, the brake of the specified axis is released.
・ RH-3FH series, RV-2F/4F/7F series, RH-3FHR series:
The brake is released continuously.
・ RH-6FH/12FH/20FH series:
The brake is released in an off-and-on way.
(released → locked → released → locked →...)
・ RV-13F series, RV-20F series, RV-50F series:
J2 and J3 axis brakes are released in an off-and-on way.
(released → locked → released →locked →...)
The others are released continuously.
The brakes will activate when the function key or enabling switch is released.

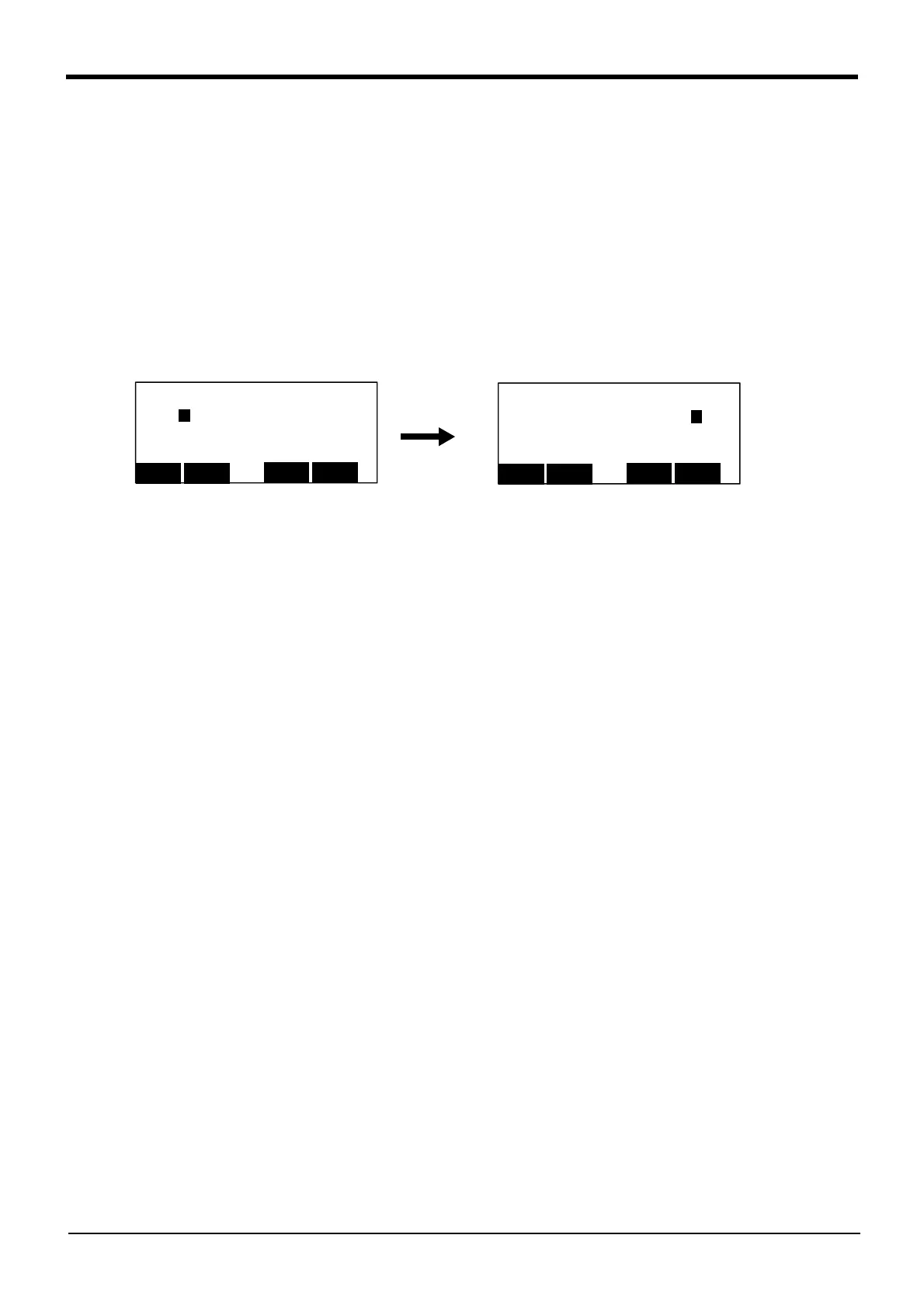

<BRAKE>
J1:( 0 )J2:( 0 )J3:( 0 )
J4:( 0 )J5:( 0 )J6:( 0 )
J7:( 0 )J8:( 0 )
CLOSE
123
REL.
<BRAKE>
J1:( 0 )J2:( 0 )J3:( 1 )
J4:( 0 )J5:( 0 )J6:( 0 )
J7:( 0 )J8:( 0 )
CLOSE
123
REL.
