Dimensions Annex
A - 2

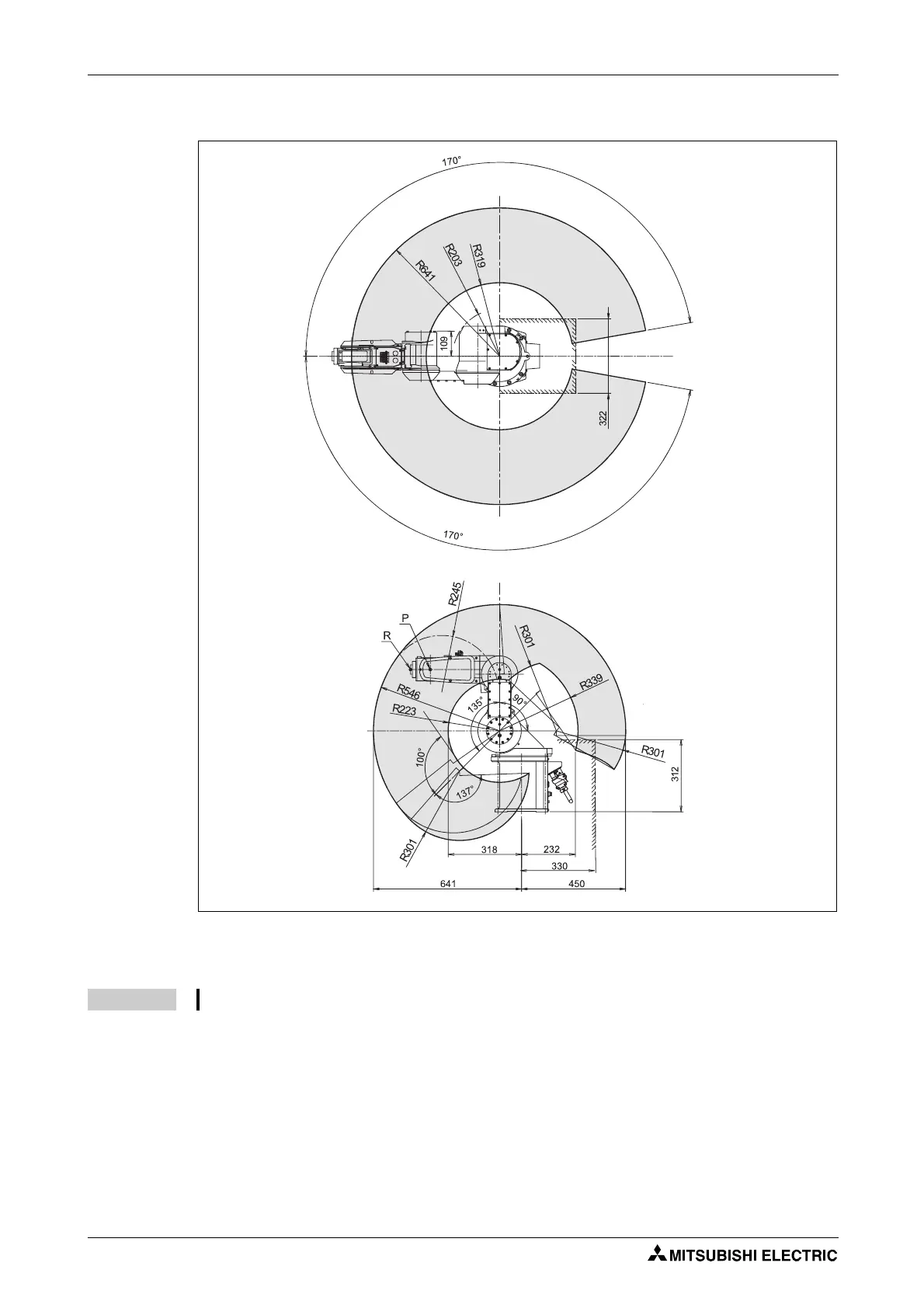

The following figure shows the range of motion of the 5-axis robot arms RV-3SDJB and RV-3SQJB.
R001498E
Fig. A-2:
Range of motion of robot arms RV-3SDJB and RV-3SQJB
NOTE
The working area stipulated refers to the P point of the robot arm without gripper hand.
Weight: 33 kg
All dimensions in mm
