Annex Dimensions
SD-/SQ series A - 3

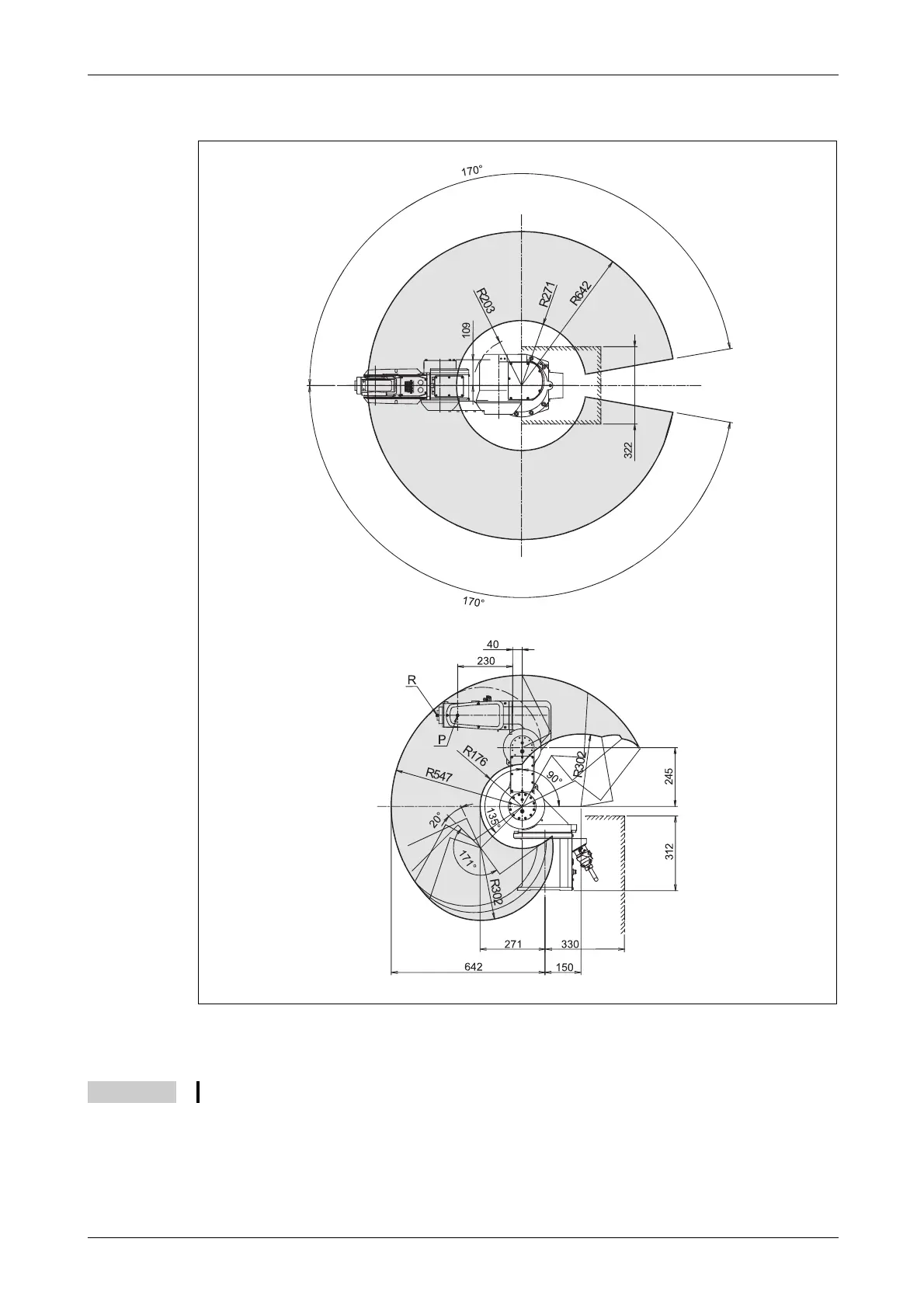

The following figure shows the range of motion of the 6-axis robot arms RV-3SDB and RV-3SQB.
R001499E
Fig. A-3:
Range of motion of robot arms RV-3SDB and RV-3SQB
NOTE
The working area stipulated refers to the P point of the robot arm without gripper hand.
Weight: 37 kg
All dimensions in mm
