Dimensions Annex
A - 4

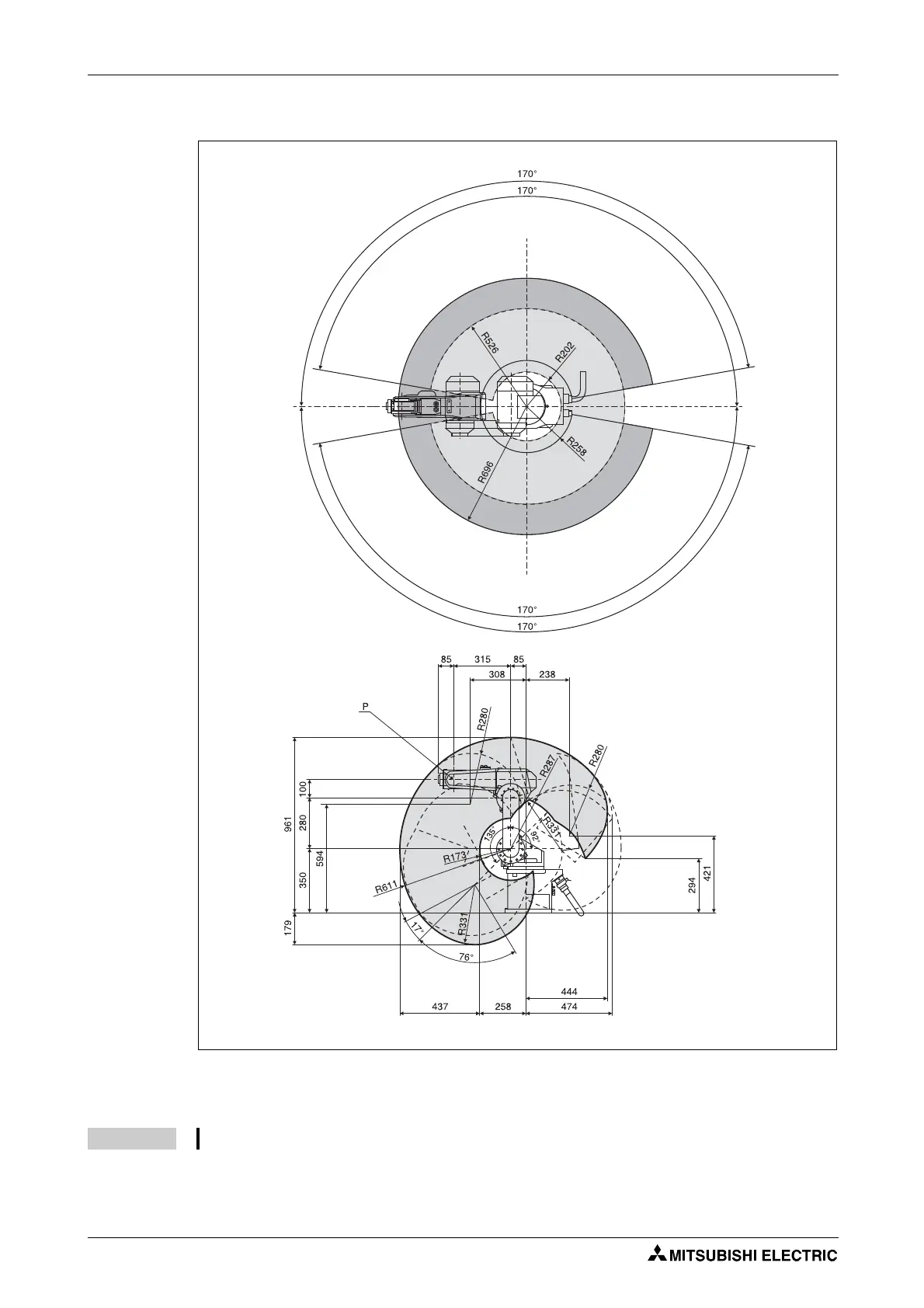

The following figure shows the range of motion of robot arms RV-6SD and RV-6SQ.
R001500E
Fig. A-4:
Range of motion of robot arms RV-6SD
and RV-6SQ
NOTE
The working area stipulated refers to the P point of the robot arm without gripper hand.
Weight: approx. 58 kg
All dimensions in mm
