Annex Dimensions
SD-/SQ series A - 5

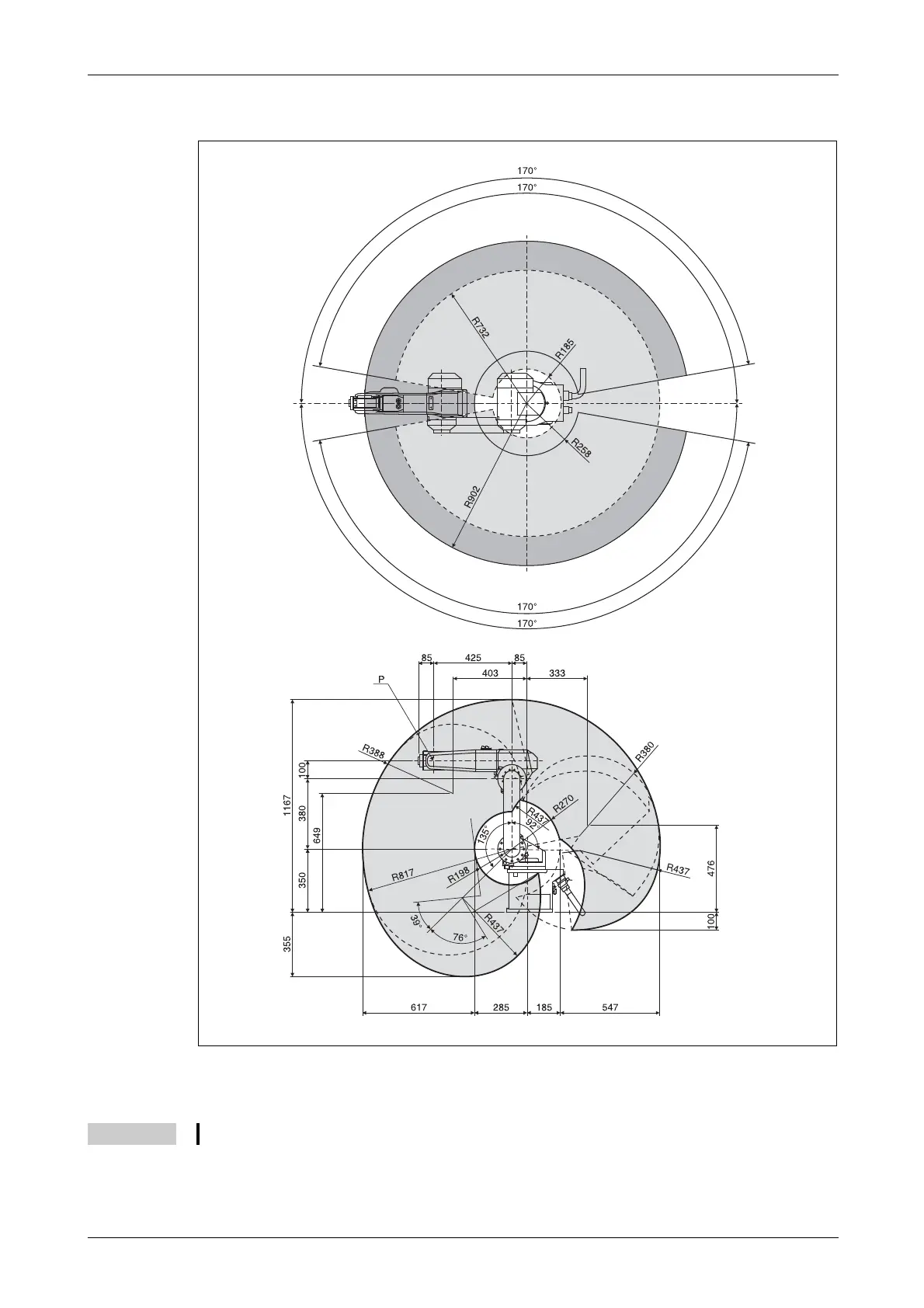

The following figure shows the range of motion of robot arms RV-6SDL and RV-6SQL.
R001501E
Fig. A-5: Range of motion of robot arms RV-6SDL and RV-6SQL
NOTE The working area stipulated refers to the P point of the robot arm without gripper hand.
Weight: approx. 60 kg
All dimensions in mm
