Annex Dimensions
SD-/SQ series A - 7

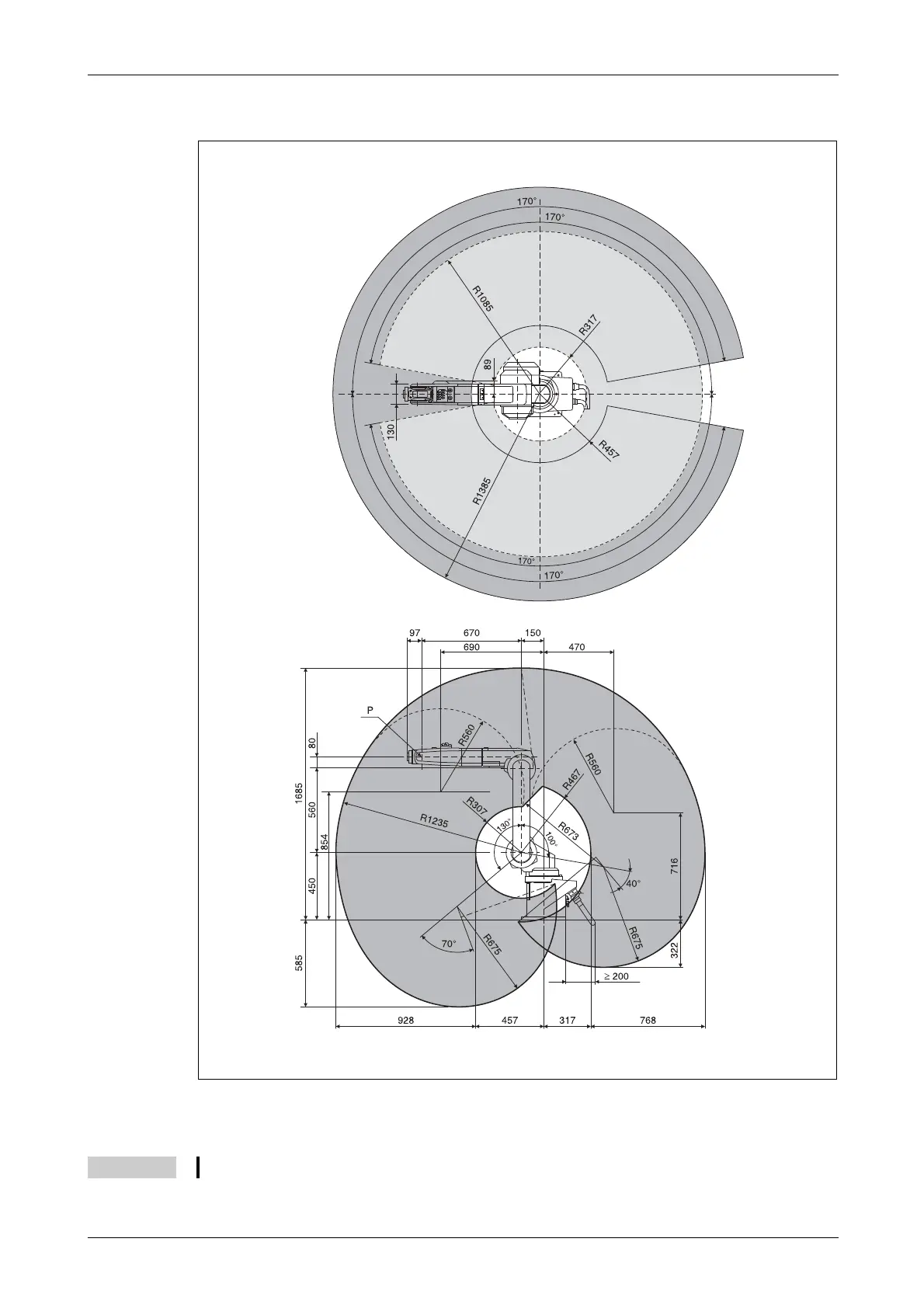

The following figure shows the range of motion of robot arms RV-12SDL and RV-12SQL.
R001160E
Fig. A-7:
Range of motion of robot arms RV-12SDL
and RV-12SQL
NOTE
The working area stipulated refers to the P point of the robot arm without gripper hand.
Weight: approx. 98 kg
All dimensions in mm
