Dimensions Annex
A - 10

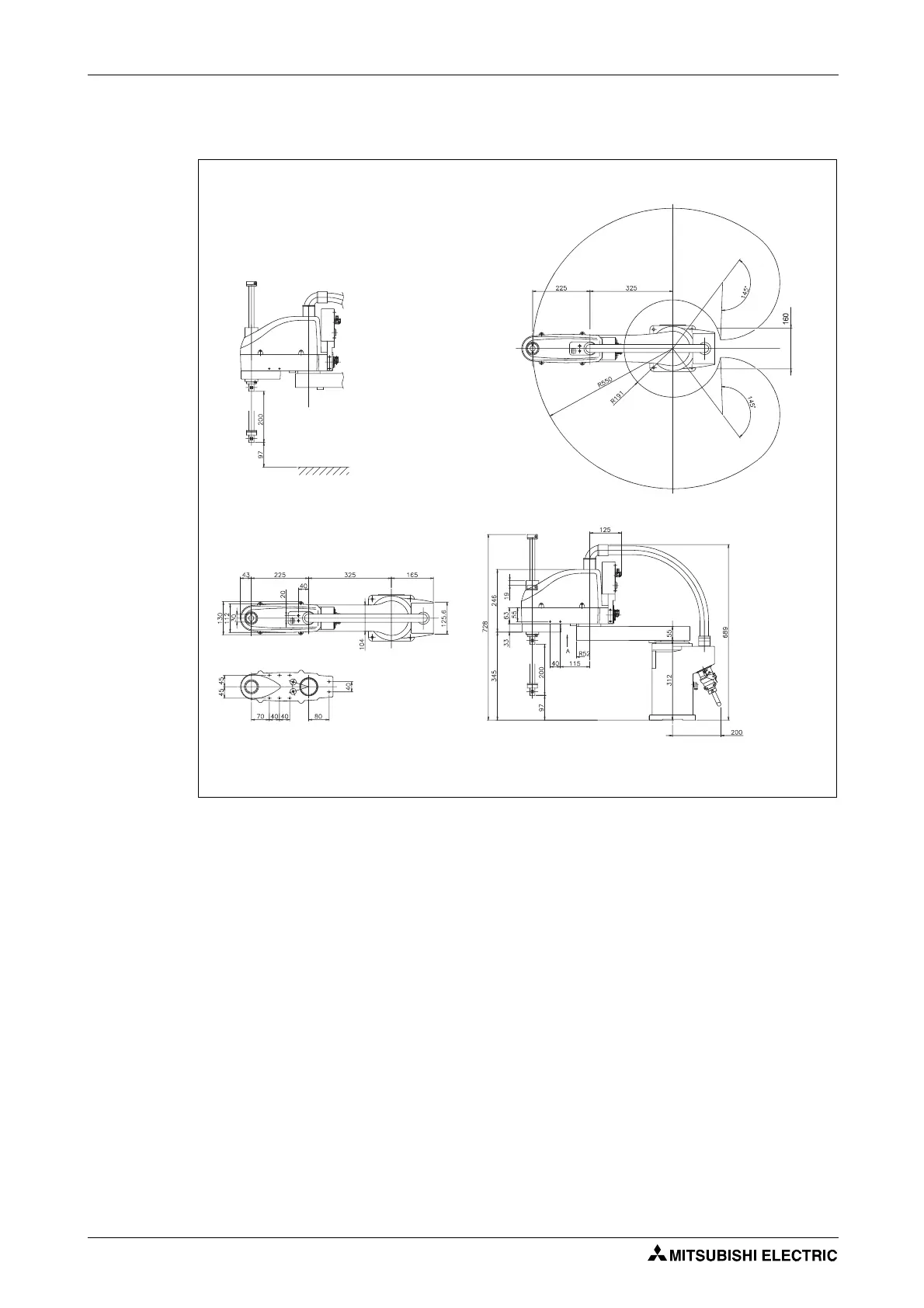

The following figure shows the external dimensions and the range of motion of robot arms
RH-6SDH5520 and RH-6SQH5520
.
R001391E
Fig. A-10:
External dimensions and range of motion of robot arms RH-6SDH5520
and
RH-6SQH5520
Limits of
range of motion
View A
Installation
surface
All dimensions in mm
Weight: 21 kg
