Annex Dimensions

SD-/SQ series A - 15

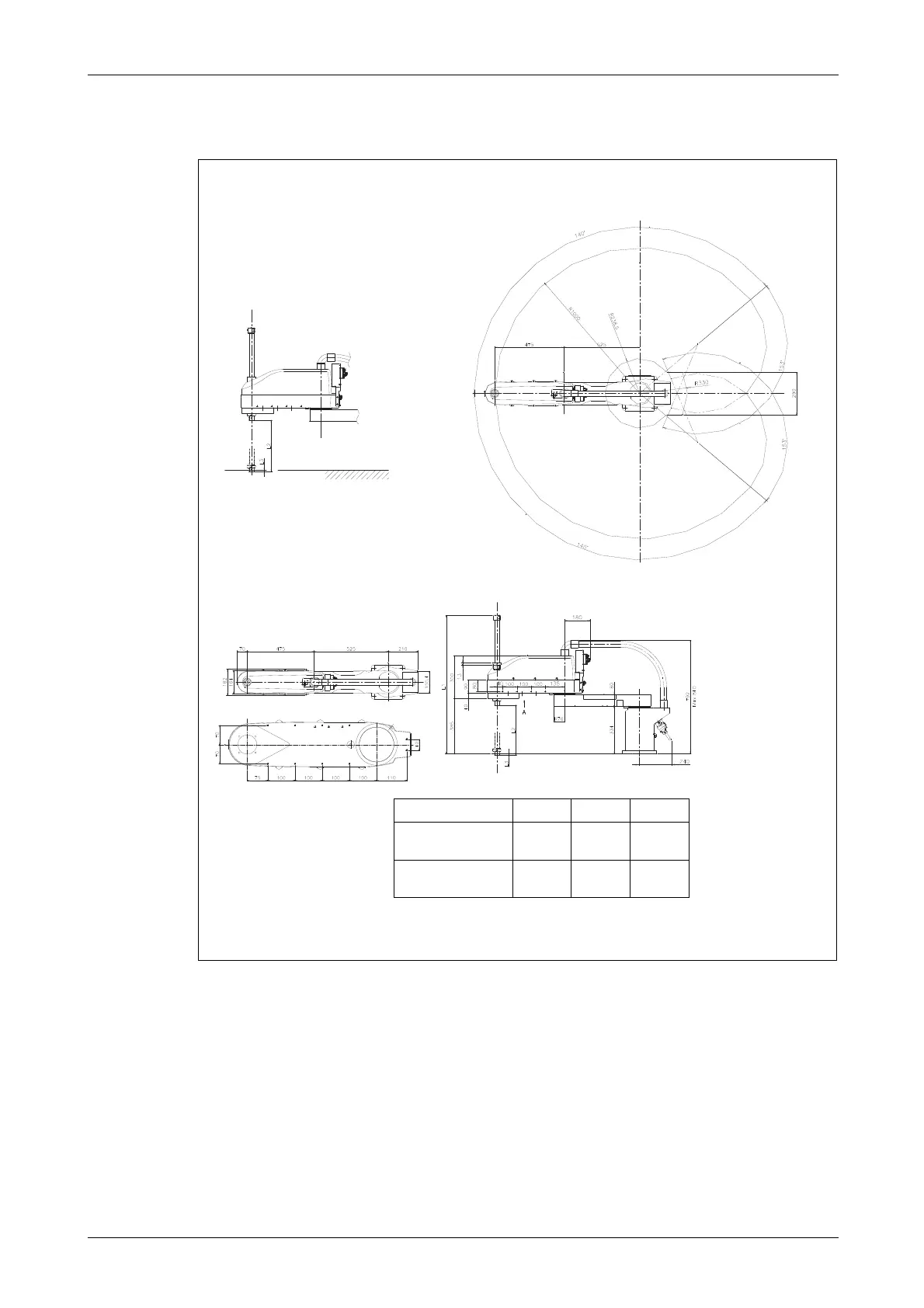

The following figure shows the external dimensions and the range of motion of robot arms

RH-20SDH10035, RH-20SDH10045, RH-20SQH10035 and RH-20SQH10045.

R001777E

Fig. A-15:

External dimensions and range of motion of robot arms RH-20SDH10035, RH-20SDH10045,

RH-20SQH10035 and RH-20SQH10045

All dimensions in mm

View A

Installation

surface

Weight:

RH-20SDH10035/20SQH10035: 50 kg

RH-20SDH10045/20SQH10045: 51 kg

Robots L1 L2 L3

RH-20SDH10035/

RH-20SQH10035

967 350 –10

RH-20SDH10045/

RH-20SQH10045

1067 450 –110

Limits of

range of motion
