Dimensions Annex
A - 14

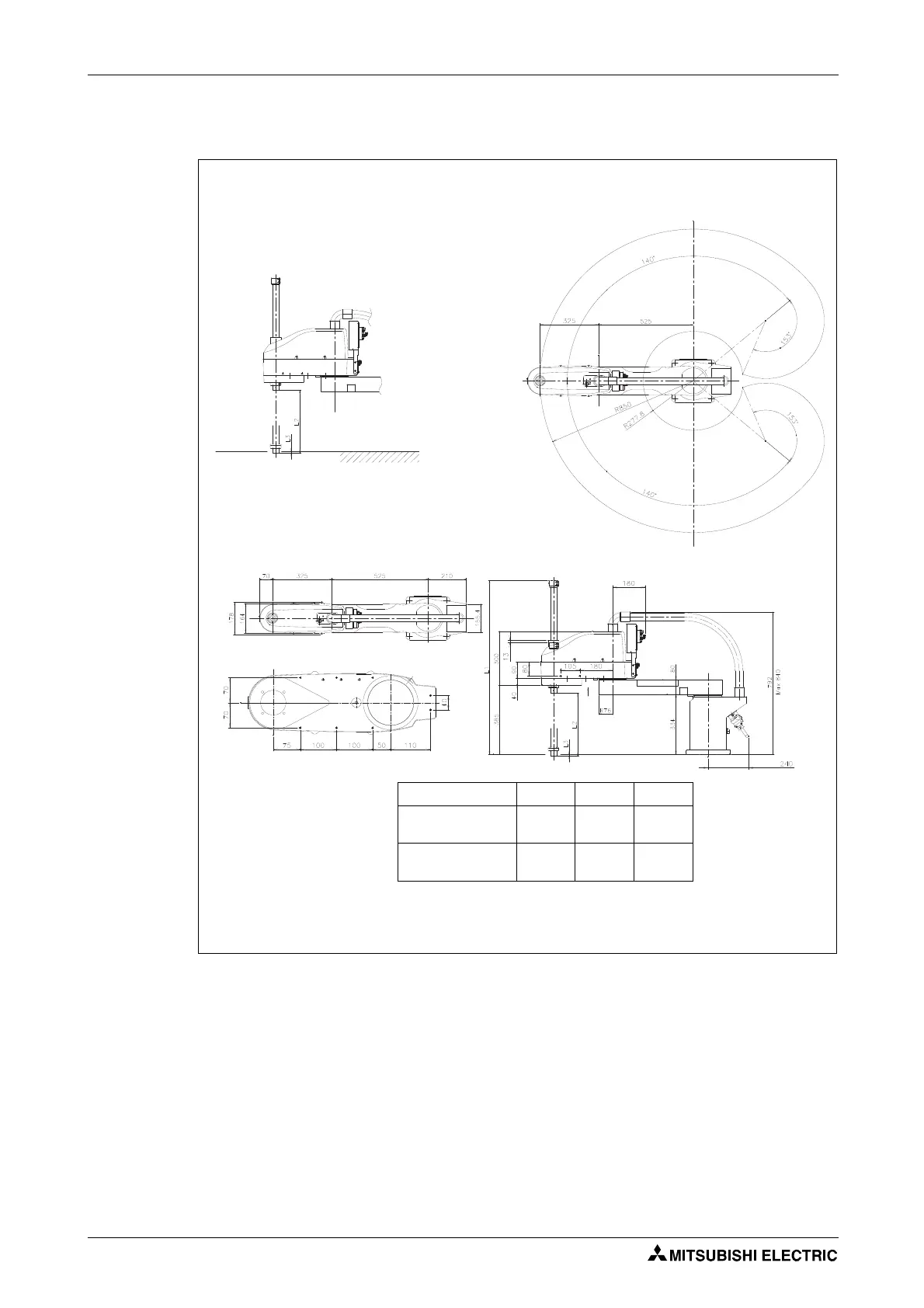

The following figure shows the external dimensions and the range of motion of robot arms
RH-20SDH8535, RH-20SDH8545, RH-20SQH8535 and RH-20SQH8545.
R001776E
Fig. A-14:
External dimensions and range of motion of robot arms RH-20SDH8535, RH-20SDH8545,
RH-20SQH8535 and RH-20SQH8545
A
All dimensions in mm
View A
Installation
surface
Weight:
RH-20SDH8535/20SQH8535: 47 kg
RH-20SDH8545/20SQH8545: 48 kg
Robots L1 L2 L3
RH-20SDH8535/
RH-20SQH8535
967 350 –10
RH-20SDH8545/
RH-20SQH8545
1067 450 –110
