Unpacking the robot system Installation
3 - 6
R001781E

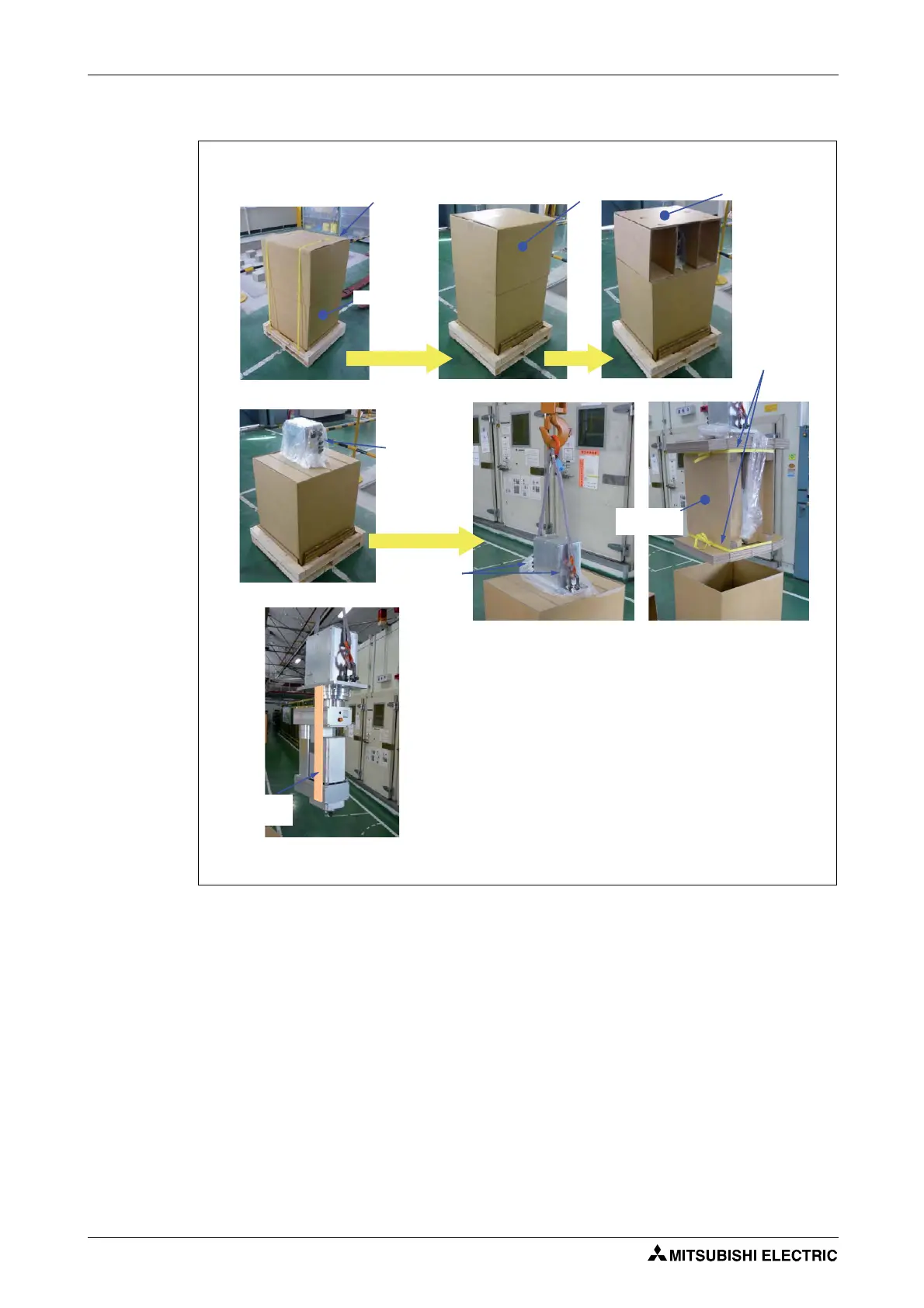

Fig. 3-5: Unpack SCARA robots RH-3SDHR and RH-3SQHR
Packing box
Tape
Upper cover
Packing material
(Cardboard)
Robot-arm
base section
Hanging
tools
Packing
material
Tape
Fixing plate
Cut the tape
Remove the upper cover.
Remove the packing material.
Open the vinyl.
Hang the hook of the crane. Hoist with crane and remove the
packing material.
Completion
