368
(c) Resetting the counter
The current counter value is not cleared even if the OUT C instruction is turned off.
To clear the current value and to turn off the contact of the counter, use the RST C instruction.
At the time of execution of the RST C instruction, the counter value is cleared, and the contact is also turned
off.
X0
RST C0
X0
OFF
OFF
ON
END END ENDRST C0 RST C0 RST C0

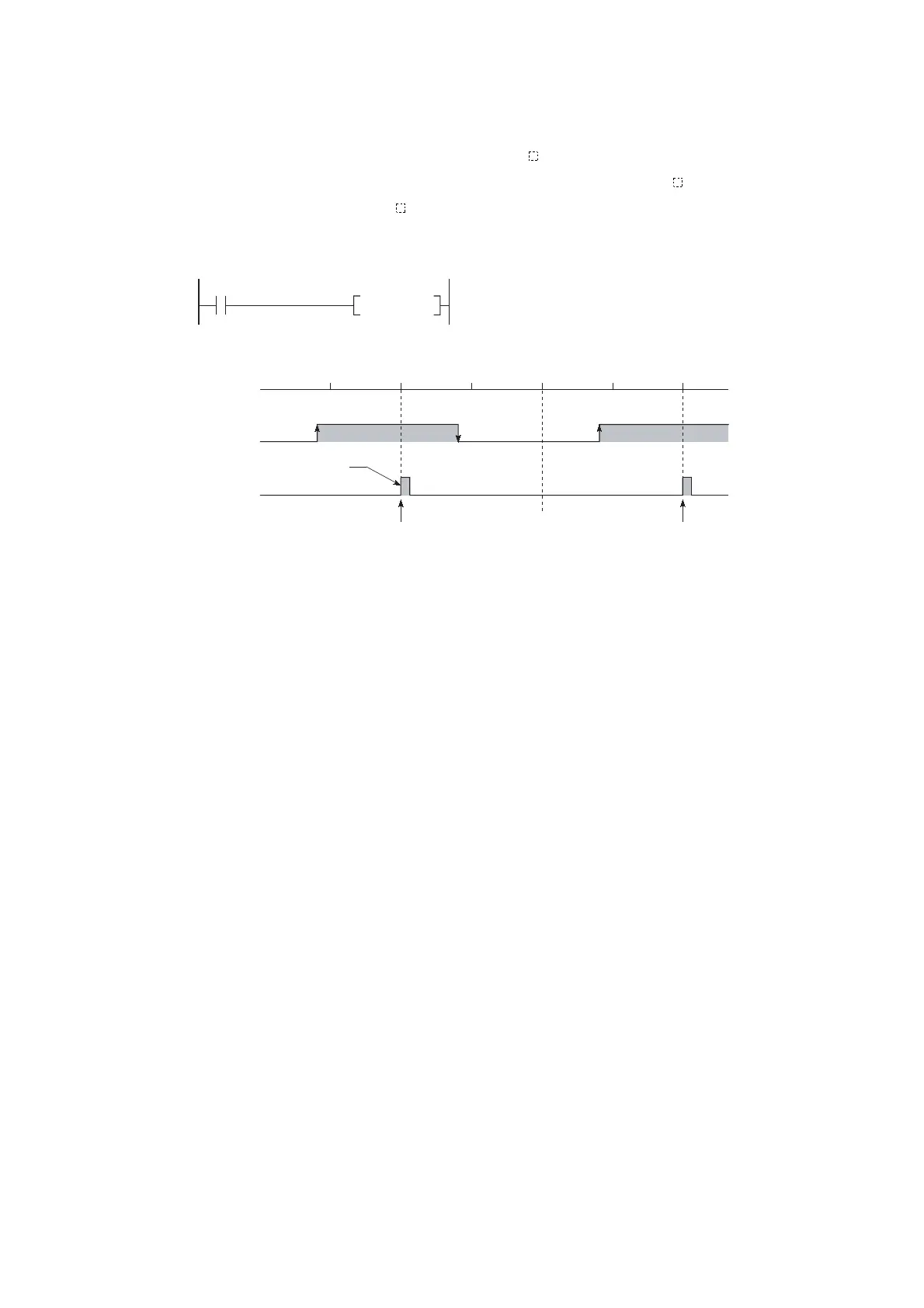

[Ladder example]
[Counter reset timing]
Sequence
program
Execution
Count value cleared,
the contact turned off
Count value cleared,
the contact turned off
RST C0
instruction
