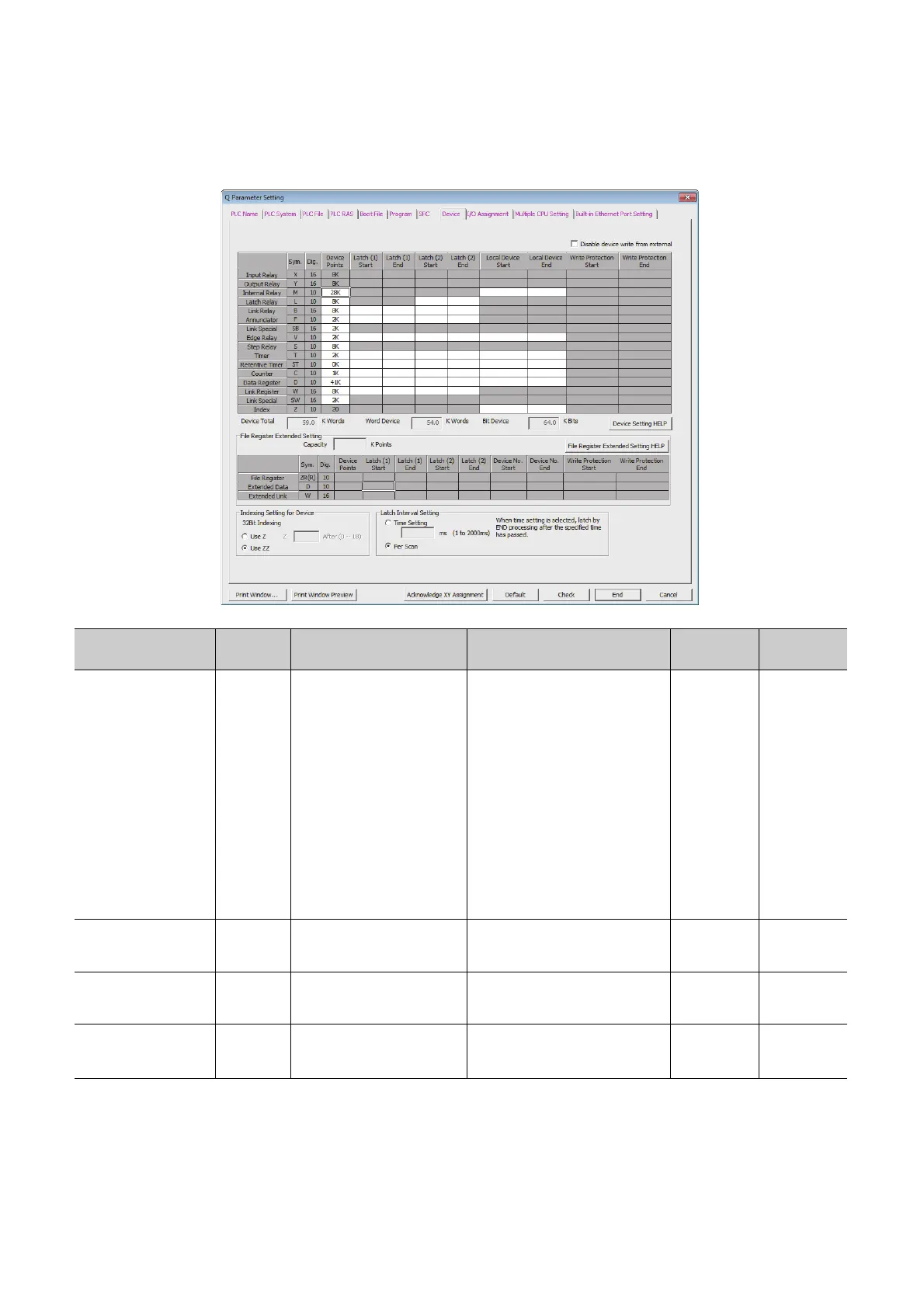

Appendix 1.2.8 Device
Number of points, latch range, and local device range are set for each device.
Item
Parameter
No.
Description Setting range Default Reference
Device Points
*1
2000
H
Set the number of device points
that is appropriate to the system.
X (8K), Y (8K), and S (8K)
*3
are fixed.
Setting is available within the range of
29K words
*8
in total, including the
above fixed points (1.5K words).
One device: Up to 32K points
*7
•X: 8K
•Y: 8K
•M: 8K
*9
•L: 8K
*2
•B: 8K
•F: 2K
•SB: 2K
•V: 2K
•S: 8K
*3
•T: 2K
•ST: 0K
•C: 1K
•D: 12K
*10
•W: 8K
•SW: 2K
Page 334,
Section 4.1
Latch (1) Start/End (Latch
clear valid)
*2
2001
H
Set a latch range (start and end
device numbers), which can be
cleared by a latch clear operation.
Setting is available for only one range
for each of B, F, V, T, ST, C, D, and W
devices.
Blank
Page 122,
Section 3.3
Latch (2) Start/End (Latch
clear invalid)
*2
2002
H
Set a latch range (start and end
device numbers), which cannot be
cleared by a latch clear operation.
Setting is available for only one range
for each of L, B, F, V, T, ST, C, D, and W
devices.
Blank
Page 122,
Section 3.3
Local Device Start/End
*6
2003
H
Set a range (start and end device
numbers), which is used for a
local device.
Setting is available for only one range
for each of M, V, T, ST, C, D, and Z
devices.
*5
Blank
Page 420,
Section 6.2
