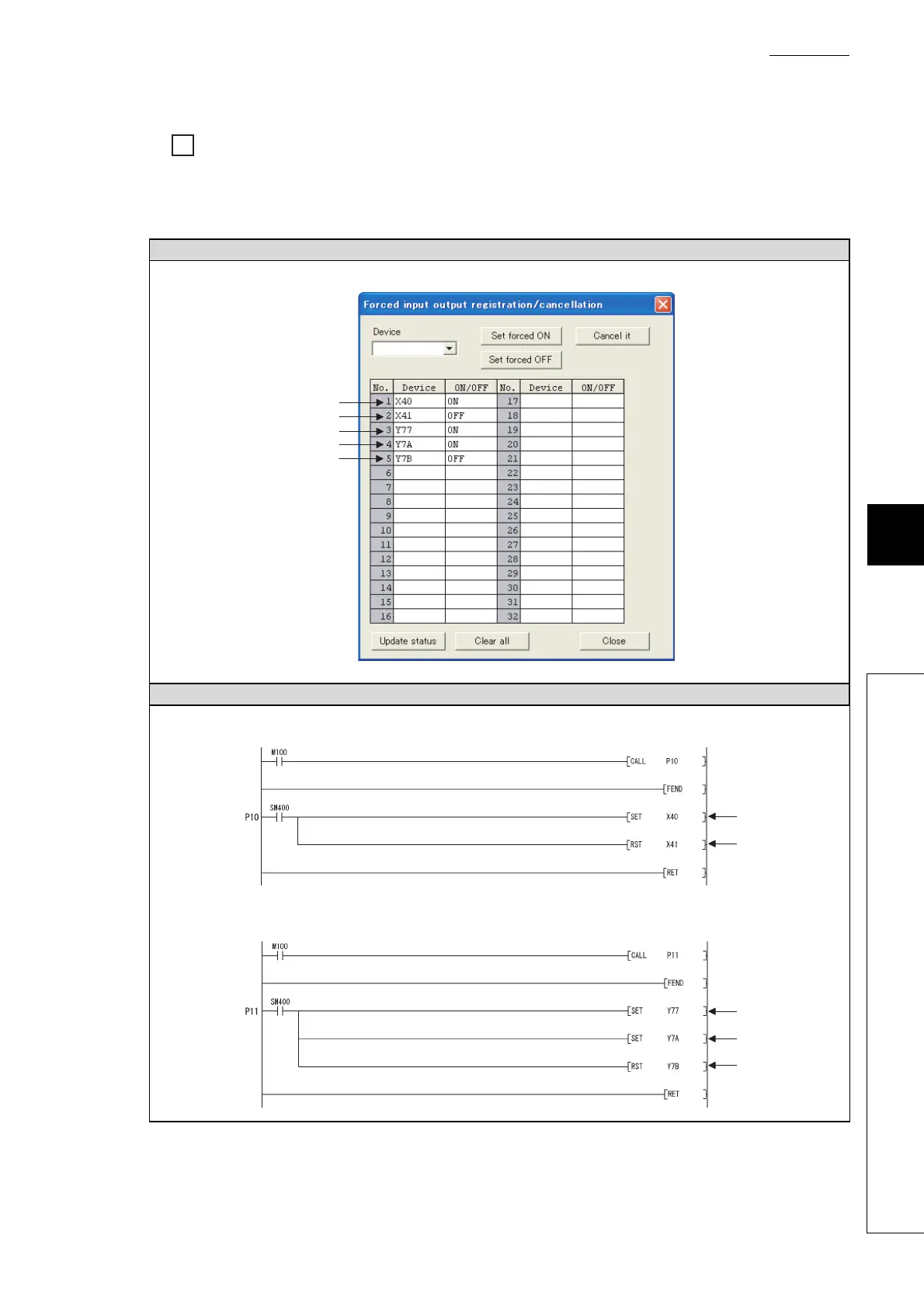

Appendix 5 Replacing Basic Model QCPU or Qn(H)CPU with QnUCPU Appendix 5.4 Functions
Ex.
Forcibly turning X40, X77, and X7A on, and X41 and Y7B off
The programs, "SETX" and "SETY", turns on or off the X and Y devices, which have been registered for forced
on/off using the external input/output forced on/off function, at each scan using the SET and RST instructions.
High Performance model QCPU
Universal model QCPU
• Program example of "SETX"
• Program example of "SETY"
(1)
(2)
(3)
(4)
(5)
(1)
(2)
(3)
(4)
(5)
