2 PART NAMES

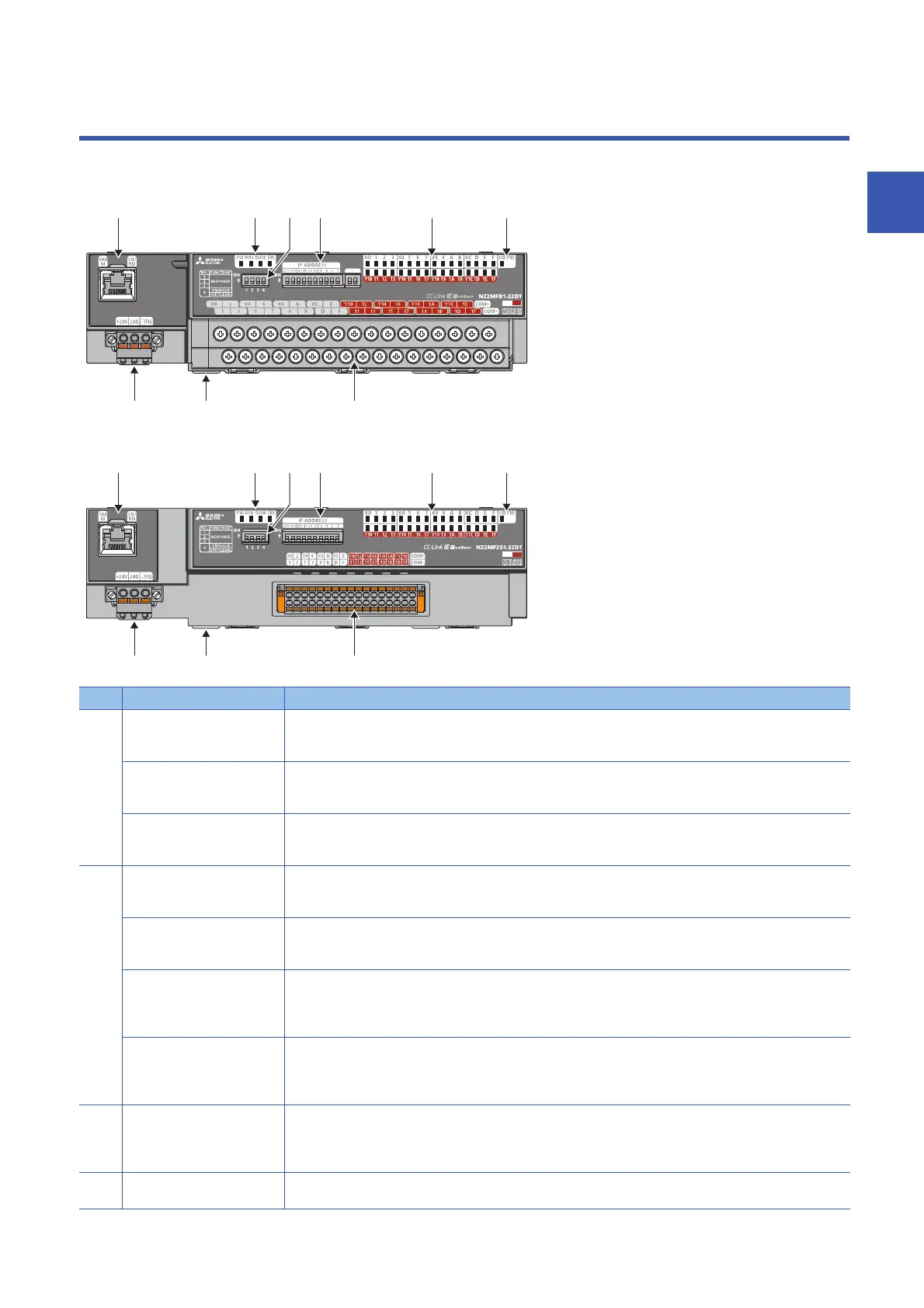

This chapter describes part names of the I/O module.
• Screw terminal block type
• Spring clamp terminal block type
No. Name Application
(1) Ethernet port Port connector for network connection. Connect an Ethernet cable.
For wiring method and precautions, refer to the following.
Page 83 Wiring of Ethernet cable
100M LED Indicates the link status.
On: Linkup in progress
Off: Linkdown in progress
SD/RD LED Indicates the status of data communication.
On: Data being sent or received
Off: Data not sent/received
(2) PW LED Indicates the power supply status of the I/O module.
On: Power supply ON
Off: Power supply OFF
RUN LED Indicates the operating status of the I/O module.
On: Operating normally.
Off: A major error has occurred.
D LINK LED Indicates the data link status of the I/O module.
On: Data link in operation. (cyclic transmission in progress)
Flashing: Data link stop (cyclic transmission stopped)
Off: Data link not performed. (disconnected)
ERR. LED Indicates the error status of the I/O module.
On: A moderate error or major error has occurred.
Flashing: A minor error has occurred.
Off: Operating normally.
(3) Function setting switch Used for the input response time setting function and output HOLD/CLEAR setting function.
For function details and setting method, refer to the following.
Page 90 Input Response Time Setting Function
Page 91 Output HOLD/CLEAR Setting Function
(4) IP address setting switch Switch for setting the fourth octet of IP address
Page 73 IP address setting switch setting
