7 PARAMETER SETTING

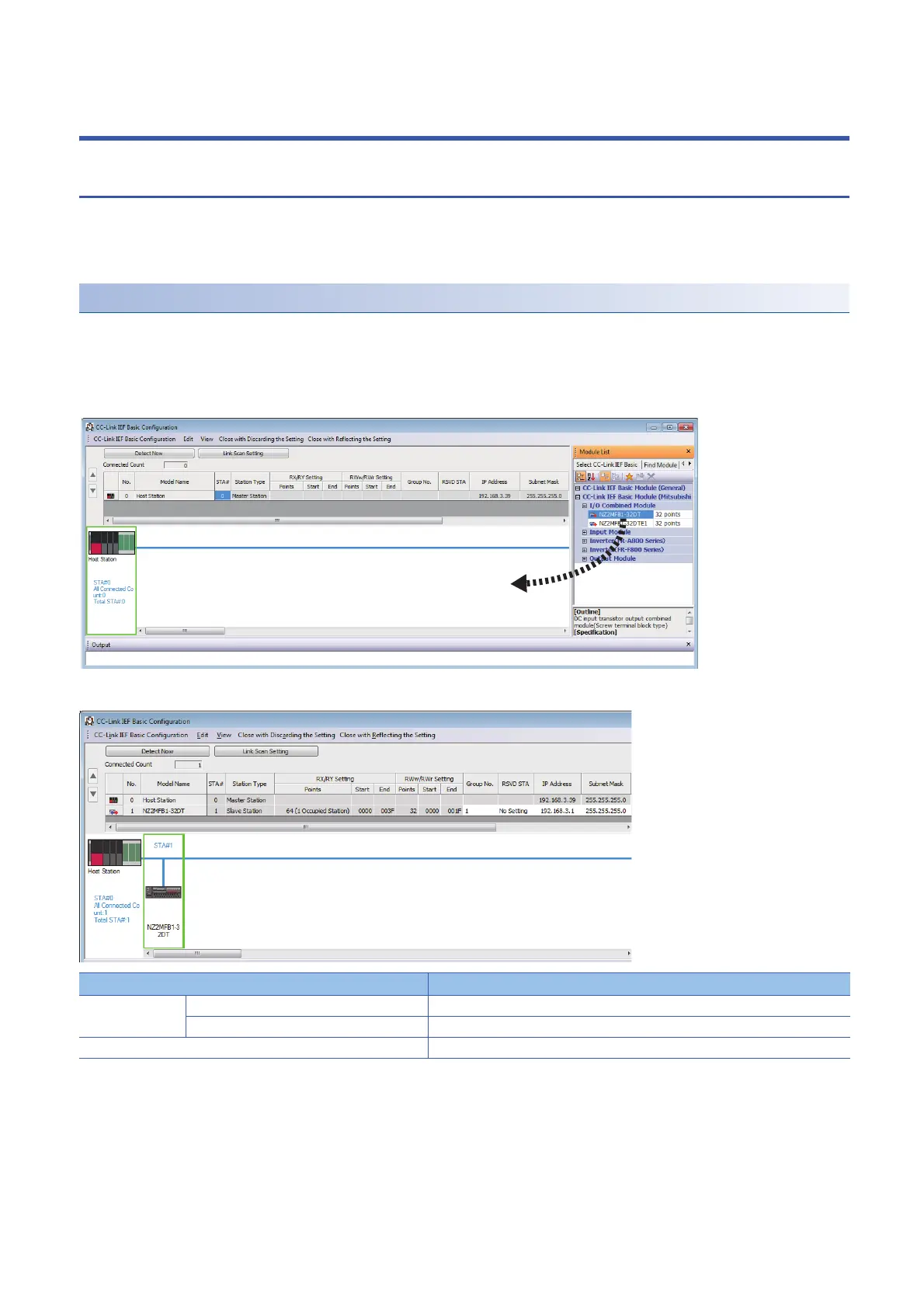

7.1 Network Configuration Setting
7 PARAMETER SETTING
7.1 Network Configuration Setting
Write the network configuration setting into the master station before starting the operation of I/O module.
For how to set the network configuration of the master station, refer to the following.
CC-Link IE Field Network Basic Reference Manual
Setting procedure
1. Display the network configuration setting window.
For how to display the network configuration setting window, refer to the following.
CC-Link IE Field Network Basic Reference Manual
2. Select the I/O module to be connected from the "Module List", and then drag and drop it.
3. After the I/O module appears, enter the IP address and subnet mask.
*1 The subnet mask for automatic setting of the first to third octet of IP address is 255.255.255.0 (fixed). If the subnet mask needs to be set
to the value other than 255.255.255.0, set the IP address and subnet mask manually. ( Page 125 Setting IP Addresses and Subnet
Masks)
The setting items of I/O module Setting details
IP Address First to third octet Same value as the first to third octet of the IP address of master station
Fourth octet Same as the value of IP address setting switch of I/O module
Subnet Mask 255.255.255.0
*1
To Next Page
