(3) Procedure before boot operation
The following explains the procedures to store the files to be booted in the standard ROM or memory card and
start boot operation.
(a) Creating a program
Create a program.
(b) Boot file setting
Set the files ("Type", "Data name", and "Transfer from") to be booted to the program memory in the Boot file tab
of the PLC parameter dialog box.
(c) Hardware setting for boot operation
Set the parameter-valid drive to a memory where parameters are to be stored with the DIP switches.
For boot operation, set the storage location of the parameters to the standard ROM or memory card.
( (6)(a) in this section)

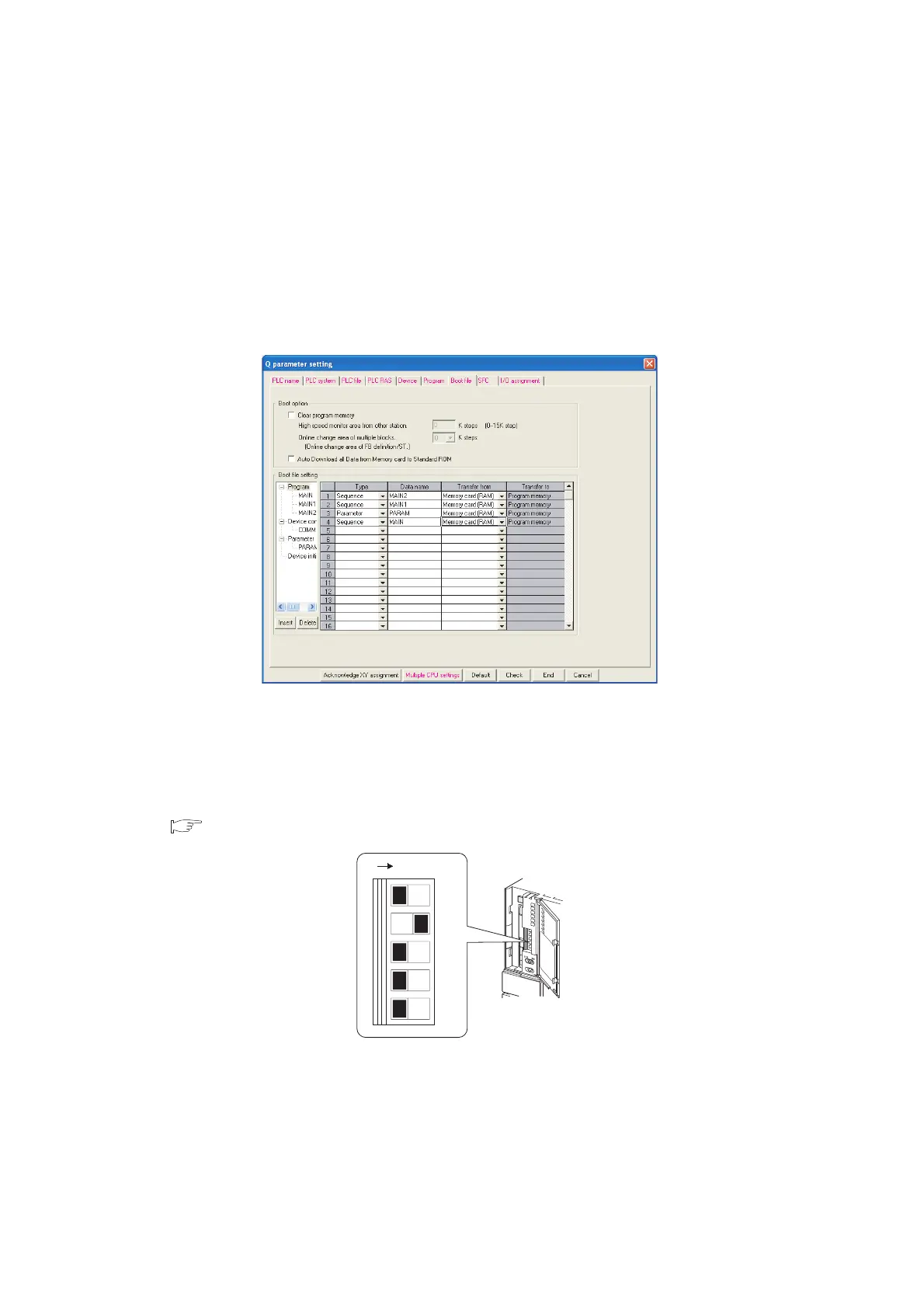

Figure 5.34 Boot file tab
Figure 5.35 When setting the parameter-valid drive to the SRAM card with the DIP switches
1
2
3
4
5
ON SW
