6 - 82
(c) Setting trace data
Set trace data on the screen opened by clicking the button on the screen shown in
Figure 6.59.
Table6.23 shows the devices can be set as trace data.

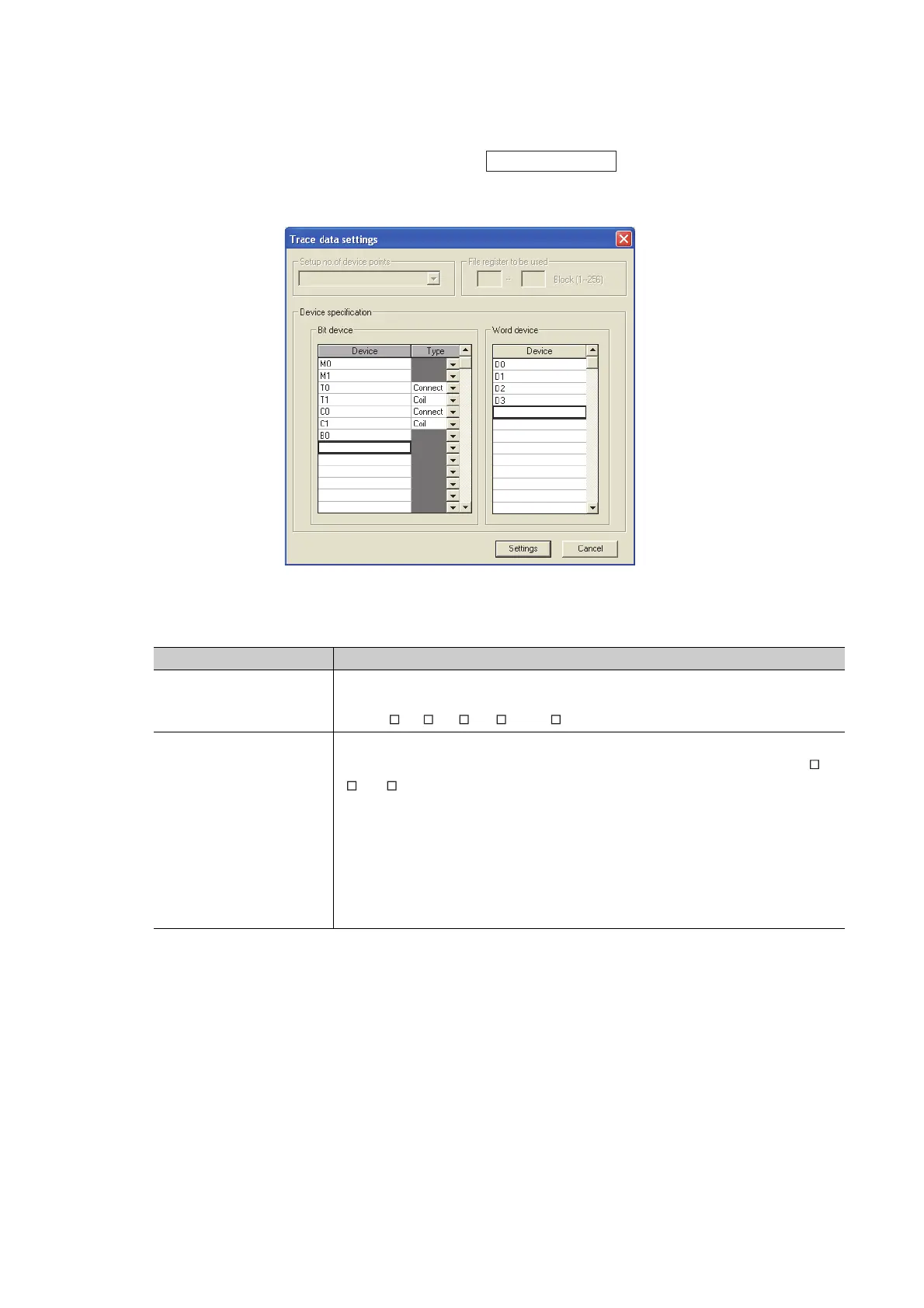

Figure 6.62 Trace data settings screen
Table6.23 Devices can be set as trace data
Item Description
Bit device
The following bit devices can be set up to 50 points.
X, DX, Y, DY, M, L, F, SM, V, B, SB, T(contact), T(coil), ST(contact), ST(coil), C(contact),
C(coil), J X, J \Y, J \B, J \SB, BL \S
Word device
The following word devices can be set up to 50 points.
T (current value), ST (current value), C (current value), D
*1
, SD, W
*2
,SW, R, Z, ZR, U \G,
J\W, J\SW
The following modifications are available for the above devices.
• Digit specification of bit device
• Bit specification of word device
• Index modification
Indirectly-specified devices cannot be set.
