(9) Detailed information of power supply module
This screen displays "ON/OFF status", "Error existence", and "Number of momentary power failures" of the power
supply module.
This screen can be displayed when using the power supply module supporting a redundant base unit and this
screen.
● In multiple CPU systems, the Detailed information of power supply module screen can be displayed only:
• when GX Developer is connected to CPU No. 1, or
• when serial numbers of all CPU modules (first five digits) are "07032" or later.
● Double-clicking the area of power supply module in "Installed status" can also display the screen.

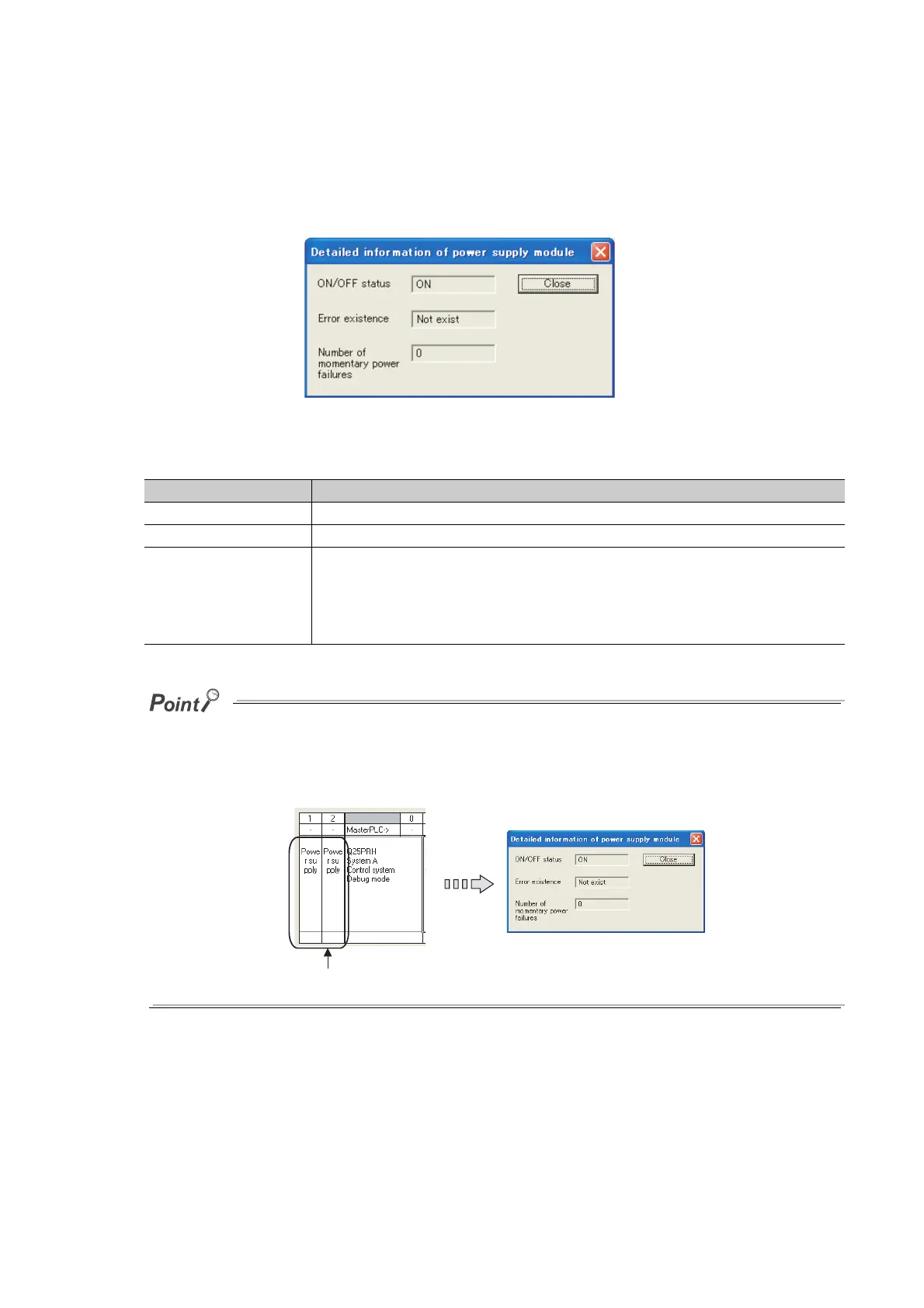

Figure 6.80 Detailed information of power supply module screen
Table6.32 Description of the Detailed information of power supply module screen
Item Description
ON/OFF status Displays the status of an input power supply to the redundant power supply module.
Error existence Displays whether a failure (error) occurs in the redundant power supply module.
Number of momentary
power failures
• When the redundant power supply module of redundant main base unit is selected Displays
the number of momentary power failures of the redundant power supply module on the
redundant main base unit (display range: 0 to 65535).
• When the redundant power supply module of redundant extension base unit is selected
Displays "-" and the number of momentary power failures is not counted.
Double-click
Displays the detailed screen
of power supply module
