8.1 PLC Parameters
8.1.1 Basic model QCPU
(7) SFC
The mode and conditions for starting an SFC program, and the output mode in the case of a block stop are set.

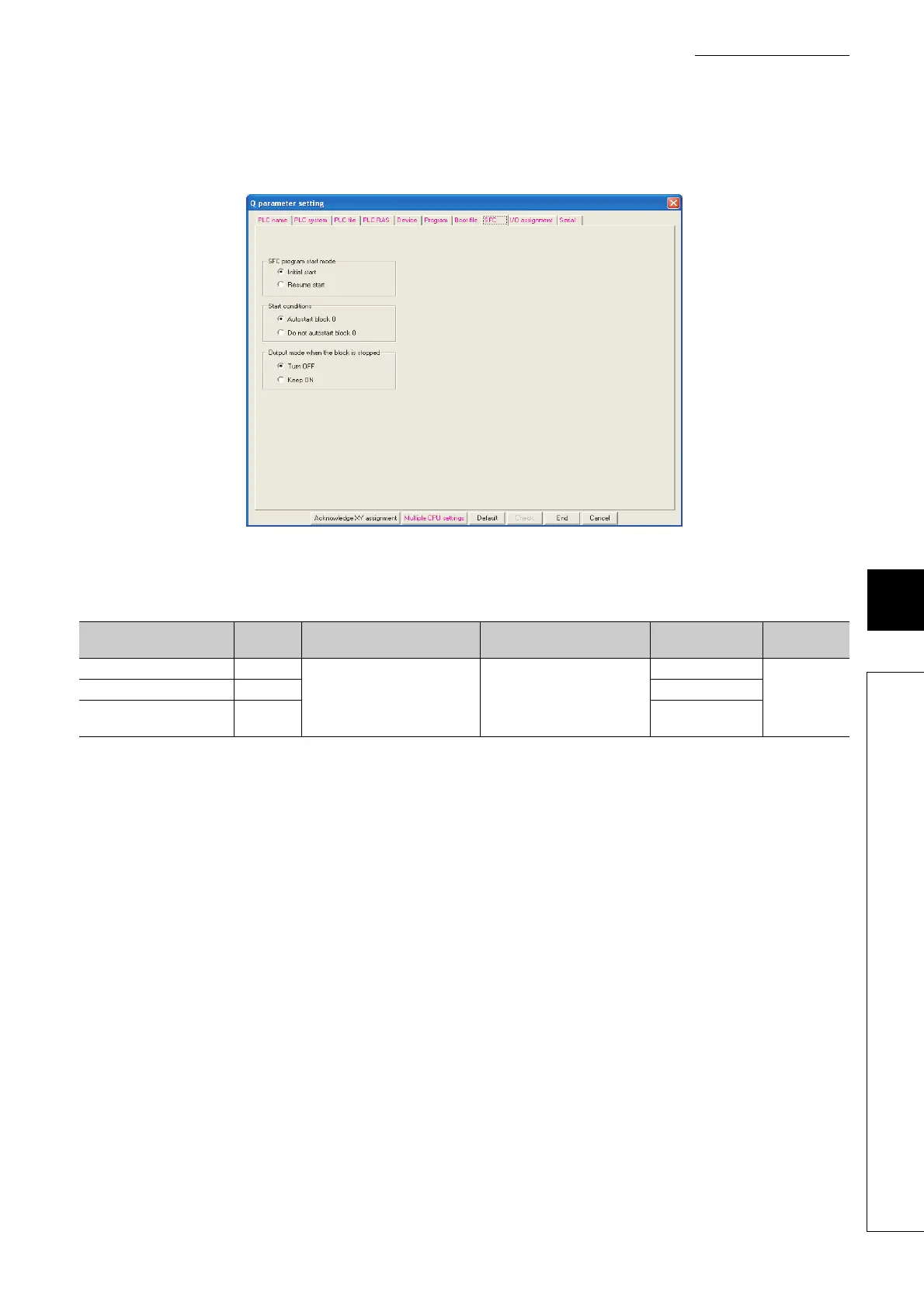

Figure 8.7 SFC
Table8.7 SFC setting list
Item
Parameter
No.
Description Setting range Default Reference
SFC program start mode 8002
H
Set the mode and conditions for
starring an SFC program, and also
set the output mode in case a
program block is stopped.
Refer to the MELSEC-Q/L/QnA
Programming Manual (SFC).
Initial start
-
Start conditions 8003
H Autostart block 0
Output mode when the block
is stopped
8006
H Turn OFF
