8 - 9
(8) I/O assignment
The mounting status of each module in the system is set.
(To the next page)

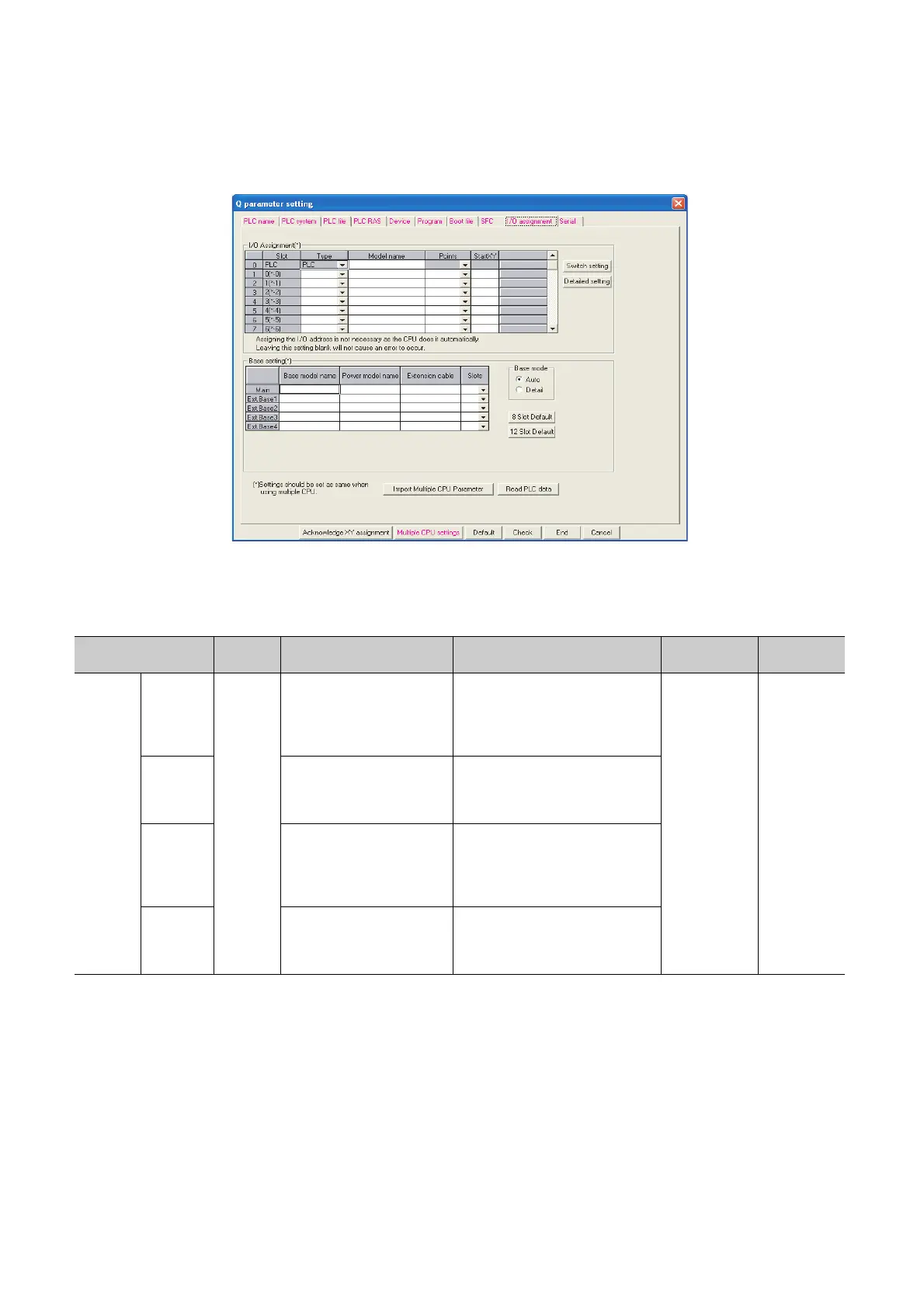

Figure 8.8 I/O assignment
Table8.8 I/O assignment setting list
Item
Parameter
No.
Description Setting range Default Reference
I/O assign-
ment
Type
0400
H
Set the type of the mounted
module.
• CPU No.2 and No.3: No.n/Empty (Set
"CPU (Empty)" for the slot where no
CPU module is mounted.)
• Empty, Input, Hi input, Output, Intelli.,
I/O mix, or Interrupt
Blank Section 4.2
Model name
Set the model name of the
mounted module. (Entered at
user's discretion. Do not use the
one for the CPU module.)
Up to 16 characters
Points
Set the number of points
assigned to each slot.
[Q00JCPU]
0, 16, 32, 48, 64, 128, or 256 points
[Q00CPU and Q01CPU]
0, 16, 32, 48, 64, 128, 256, 512, or 1024
points
Start XY
Set the start I/O number of each
slot.
[Q00JCPU]
0
H to F0H
[Q00CPU and Q01CPU]
0
H to 3F0H
