8 - 19
(6) Device
Number of points, latch range, and local device range are set for each device.
*1: When changing the device points, new setting must not exceed the refresh ranges of network modules or the auto refresh ranges of
intelligent function modules.
If a new device point setting exceeds the corresponding device range, the data may be written to another device or an error may occur.

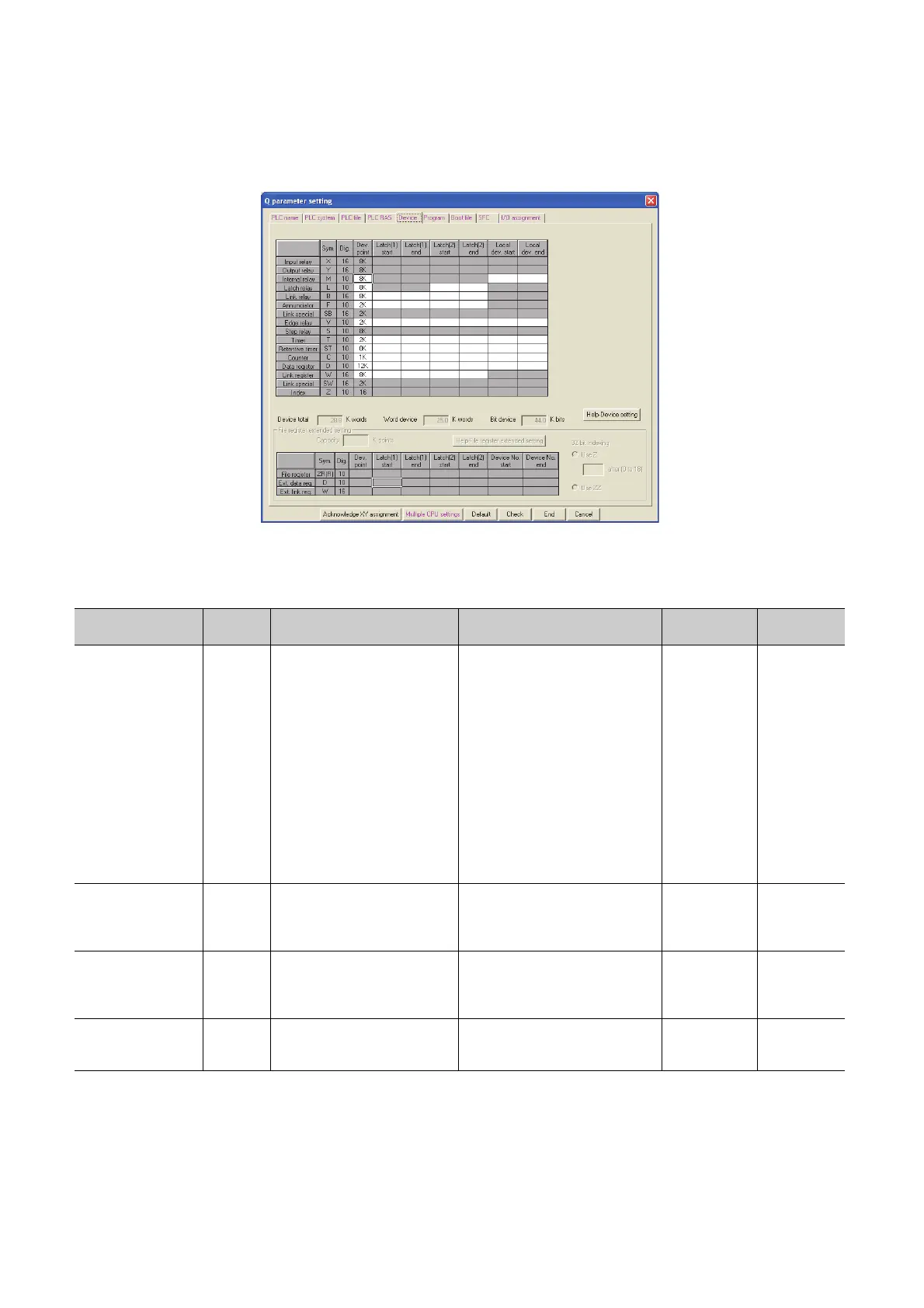

Figure 8.17 Device
Table8.17 Device setting list
Item
Parameter
No.
Description Setting range Default Reference
Device points
*1
2000H
Set the number of device points that
is appropriate to the system.
X(8K), Y(8K), S(8K), SB(2K), and
SW(2K) are fixed.
Setting is available within the range of
29K words in total, including the above
fixed points (3.7K words).
• One device: Up to 32K points
• Total bit device points: Up to 64K
points
•X: 8K
•Y: 8K
•M: 8K
•L: 8K
•B: 8K
•F: 2K
•SB: 2K
•V: 2K
•S: 8K
•T: 2K
•ST: 0K
•C: 1K
• D: 12K
•W: 8K
•SW: 2K
Section 9.1
Latch (1) start/end
(Latch clear valid)
2001
H
Set a latch range (start and end
device numbers), which can be
cleared by the RESET/L.CLR switch
or remote latch clear operation.
Setting is available for only one range
for each of B, F, V, T, ST, C, D, and W
devices.
Blank
Section 3.4,
Section 6.3
Latch (2) start/end
(Latch clear invalid)
2002
H
Set a latch range (start and end
device numbers), which cannot be
cleared by the RESET/L.CLR switch
or remote latch clear operation.
Setting is available for only one range
for each of L, B, F, V, T, ST, C, D, and W
devices.
Blank
Section 3.4,
Section 6.3
Local device start/end 2003
H
Set a range (start and end device
numbers), which is used for a local
device.
Setting is available for only one range
for each of M, V, T, ST, C and D
devices.
Blank Section 9.13.2
