8.1 PLC Parameters
8.1.2 High Performance model QCPU, Process CPU, and Redundant CPU
(9) SFC
The mode and conditions for starting an SFC program, and the output mode in the case of a block stop are set.

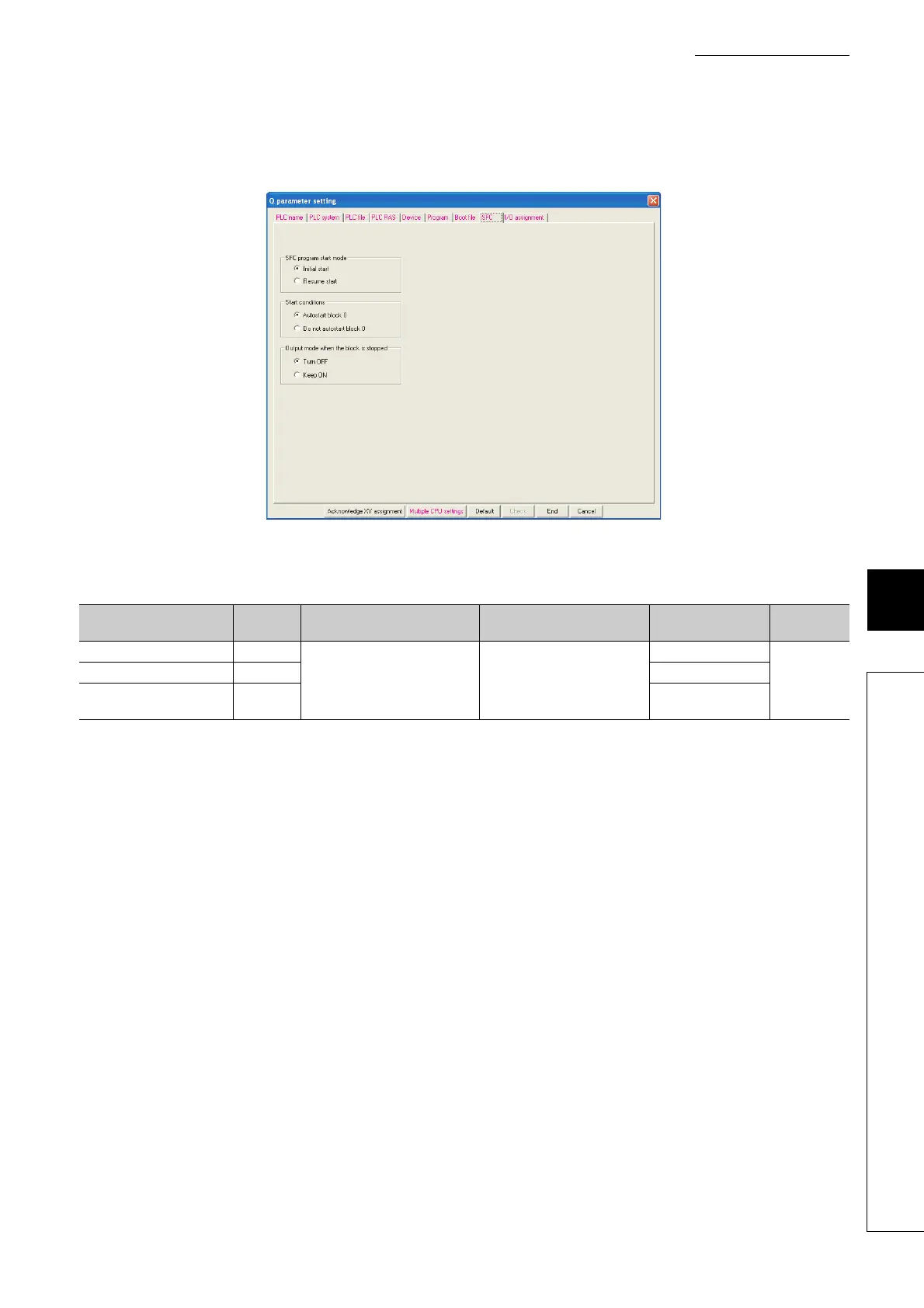

Figure 8.20 SFC
Table8.20 SFC setting list
Item
Parameter
No.
Description Setting range Default Reference
SFC program start mode 8002
H
Set the mode and conditions for
starring an SFC program, and also
set the output mode in case a
program block is stopped.
Refer to the MELSEC-Q/L/QnA
Programming Manual (SFC).
Initial start
-
Start conditions 8003
H Autostart block 0
Output mode when the block
is stopped
8006
H Turn OFF
To Next Page
