(2) MELSECNET/H setting
Network parameters for MELSECNET/H are set.
*1: Available only for the Redundant CPU.
*2: Available only for the Process CPU or Redundant CPU.

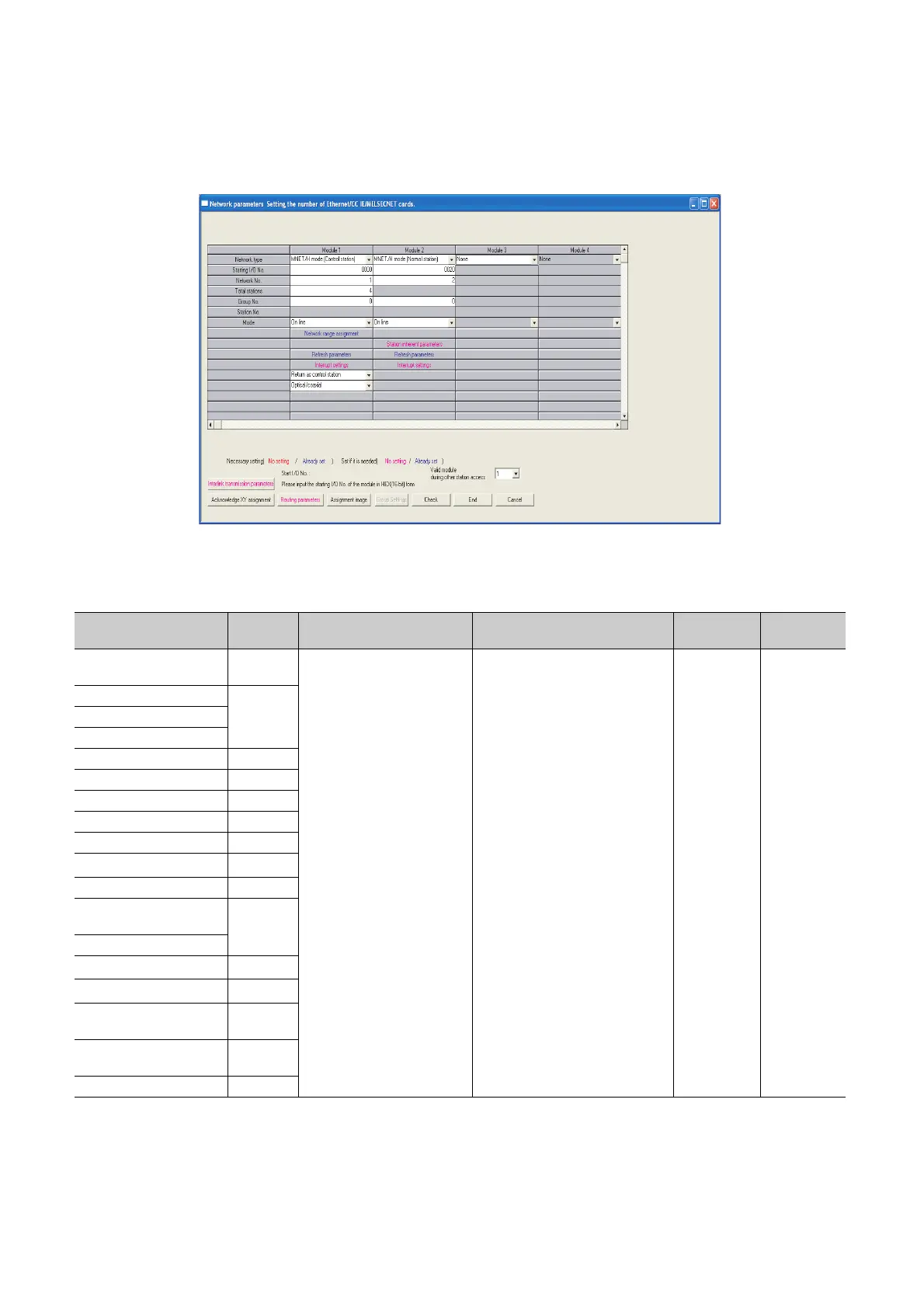

Figure 8.27 Setting the number of Ethernet/CC IE/MELSECNET cards (MELSECNET/H setting)
Table8.30 MELSECNET/H setting list
Item
Parameter
No.
Description Setting range Default Reference
Number of modules on
MELSECNET/H
5000
H
Set MELSECNET/H network
parameters.
Refer to the manual for the Q series-
compatible MELSECNET/H.
--
Starting I/O No.
5NM0
HNetwork No.
Total stations
Group No. 05mn
H
Mode 5NM0H
Refresh parameters 5NM1H
Common parameters 5NM2H
Station inherent parameters 5NM3H
Sub-master parameters
*2
5NM5H
Common parameters 2 5NMAH
Station inherent parameters
2
5NMB
H
Interrupt settings
Group settings
*1
D004H
Redundant settings
*1
D5**H
Valid module during other
station access
5001
H
Interlink transmission
parameters
5002
H
Routing parameters 5003H
