CHAPTER2 SEQUENCE PROGRAMS

2.3 Settings When Program is Divided

2.3.4 Stand-by type program

(b) Changing the program execution type using instructions

Use the PSCAN, PSTOP, or POFF instruction to change a program execution type.

1) Changing the execution type (in the case of scan execution type program)

• Set the programs "ABC" and "GHI" as scan execution type programs and the program "DEF" as a stand-

by type program.

• When the condition is established (the internal relay (M0) in Figure 2.36 turns on), the program "DEF" is

changed to a scan execution type program and the program "ABC" to a stand-by type program.

[Before execution of the PSCAN and PSTOP instructions]

[After execution of the PSCAN and PSTOP instructions]

Scan execution type program: ABC

• The PSCAN instruction changes the program "DEF"

to a scan execution type program.

• The PSTOP instruction changes the program "ABC"

to a stand-by type program.

Stand-by type program: DEF Scan execution type program: GHI

Stand-by type program: ABC

Scan execution type program: DEF Scan execution type program: GHI

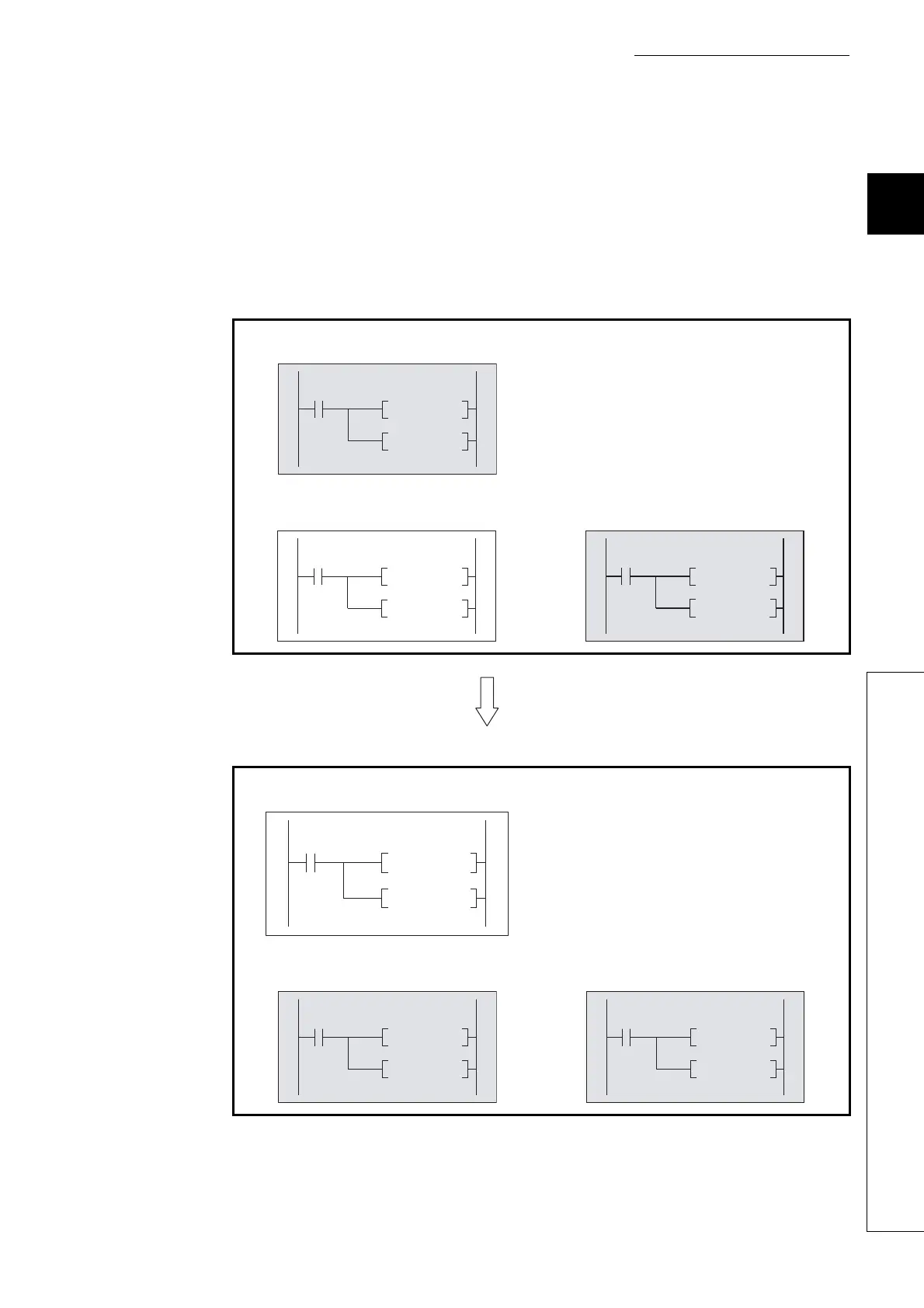

Figure 2.36 Example of changing the execution type (in the case of scan execution type program)

PSCAN "DEF"

PSTOP "ABC"

PSCAN "GHI"

PSTOP "DEF"

PSCAN "ABC"

PSTOP "GHI"

When M0 turns on

PSCAN

"DEF"

PSTOP "ABC"

PSCAN "GHI"

PSTOP "DEF"

PSCAN "ABC"

PSTOP "GHI"
