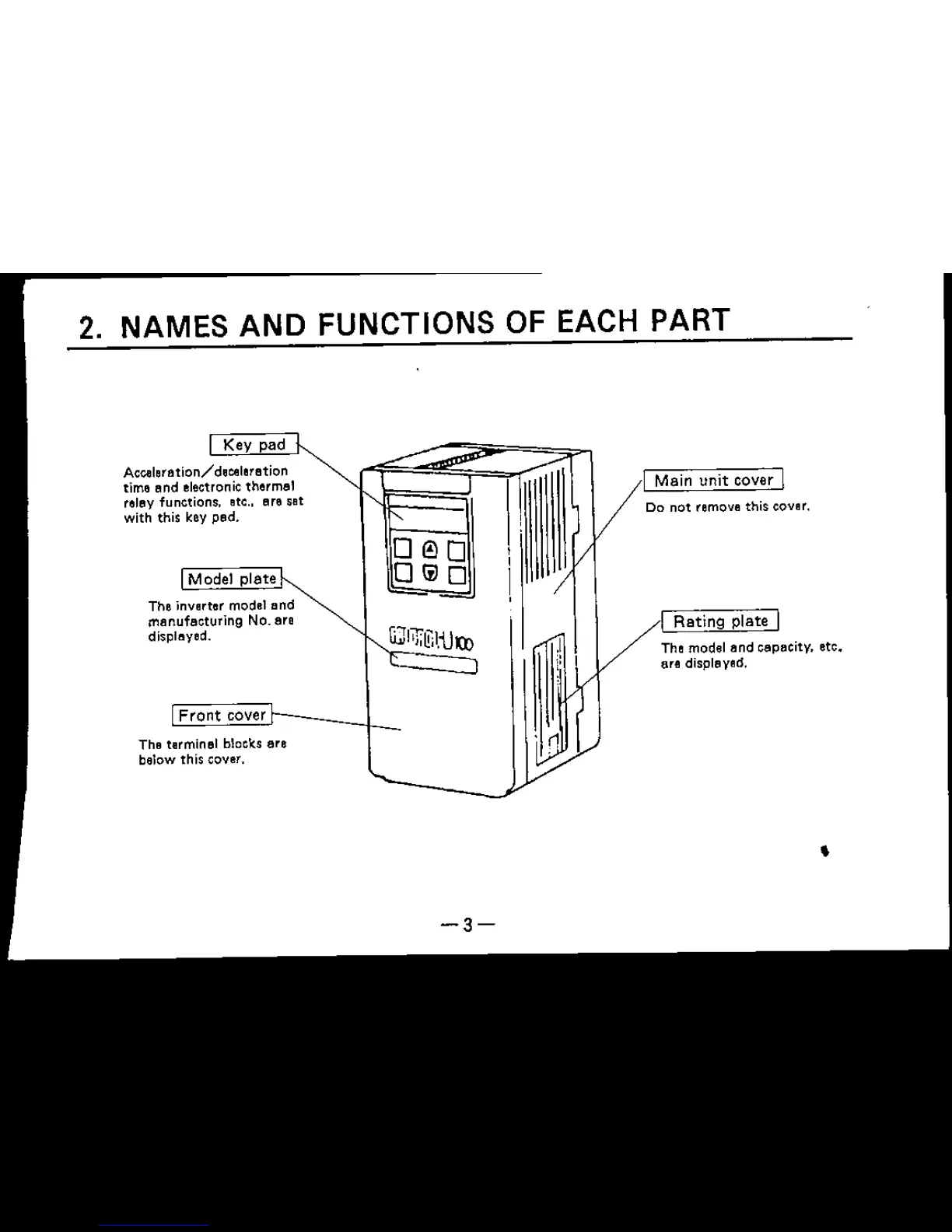

2. NAMES AND FUNCTIONS OF EACH PART
Key pad
Acceleration/deceleration
time and electronic thermal
relay functions. etc.. are set
with this key pad.
Model plate
The inverter model lind
manufacturing No. are
displayed.
Front
cover
The terminal blocks are
below this cover.
-3-
'n
I Main
unit
cover I
Do not remove this cover.
I
Rating
plate I
The model and cepecitv, etc.
lire dlspleved.
•
