• To reset the stall memory externally, the MC4 contacts
are used.
• Use a micro signal switch commensurate with DC8V
4 mA as the input contact.
• If the stall memory reset input MC4 and MCC are
short-circuited, the stall output is always the same as
the stall setting value.
• If a signal interlocked with the reel shaft release signal
and shaft removal signal is connected to the MC4
contacts, the stall memory can be reset automatically
when changing the material.
----------------A special use of stall function
• In addition to the method by the manual torque controller, following two methods are available to enter
the stall setting value.
• Setting by key input on the operator screen
• Setting by external analog input
• To change the stall setting value by key input on the operator screen, use the "STALL MD." screen with
”SWITCH" on the initial setting screen or the engineer screen.
• To enter the stall setting value by key input on the operator screen, use the "STALL SET" screen.
• To change the stall setting value input by the external analog input setting, refer to page 40.
-------- A special use of stall function
• The system can be set so as to reset the stall memory value only by the MC4 contacts without using
the output on/off switch.
• Use the "STALL RST" screen within "SWITCH" on the initial setting screen or the engineer screen.

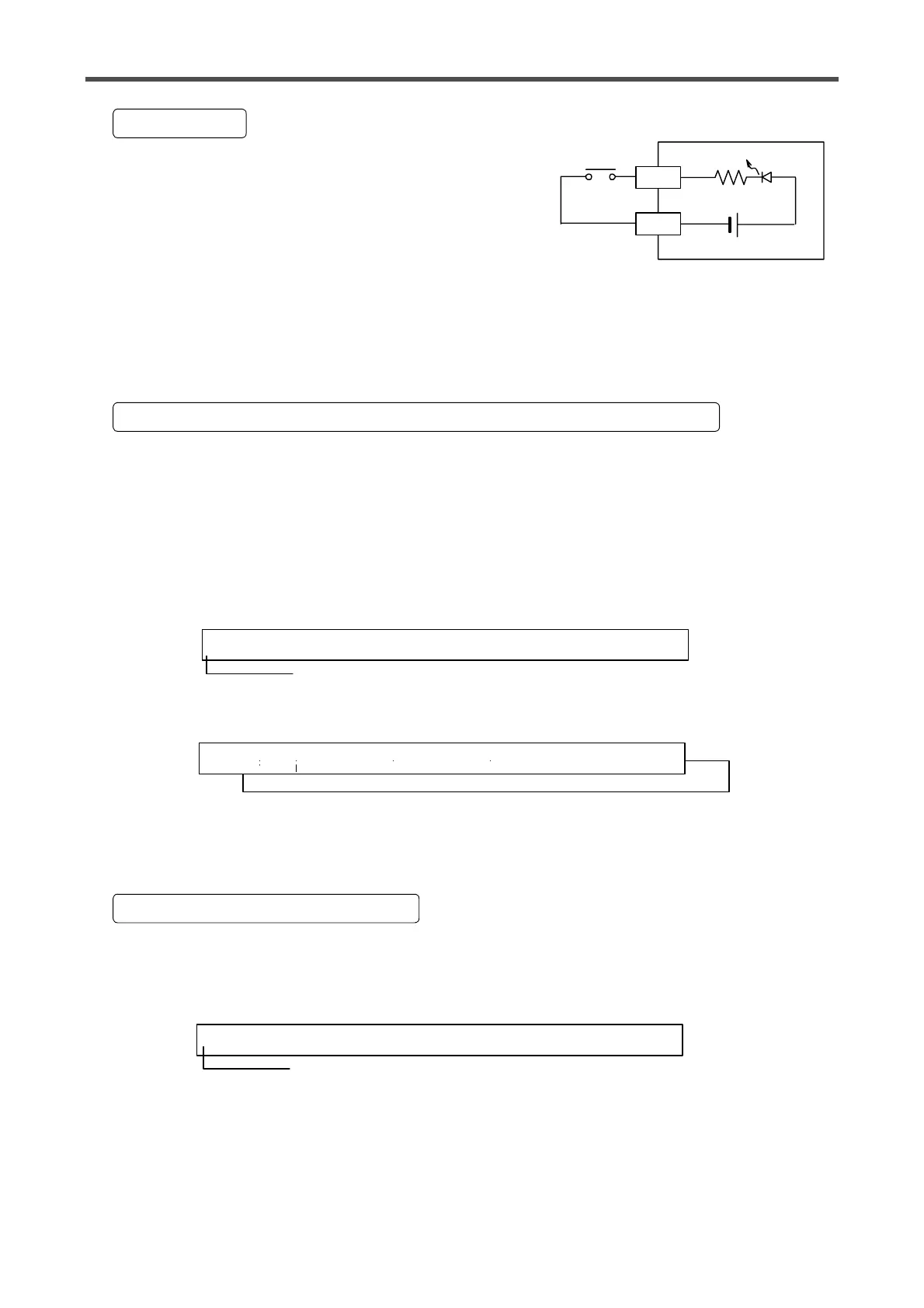

3. Connection
MC4
MCC
Stall memory reset
1.6kΩ
8V
Photo coupler
4. Method of entering stall setting value without using manual torque controller
S A L L M D . S E L E C T S T A L L S E T T N G M O D E
K E Y S E T : M A N . V O L .
T
Select "KEY SET ".
S A L L S E T
S E T → # # # % O U T P U T → # # # %
T
S A L L S E T
S E T → # # # % T N S N . → # # # # N
T
5. Resetting stall memory only by MC4
S A L L R S T S E L E C T S T A L L M E M O R Y R E S E T M O D E
M C 4 o n l y : M C 4 + O U T S W .
T
Select "MC4 only".
To Next Page
