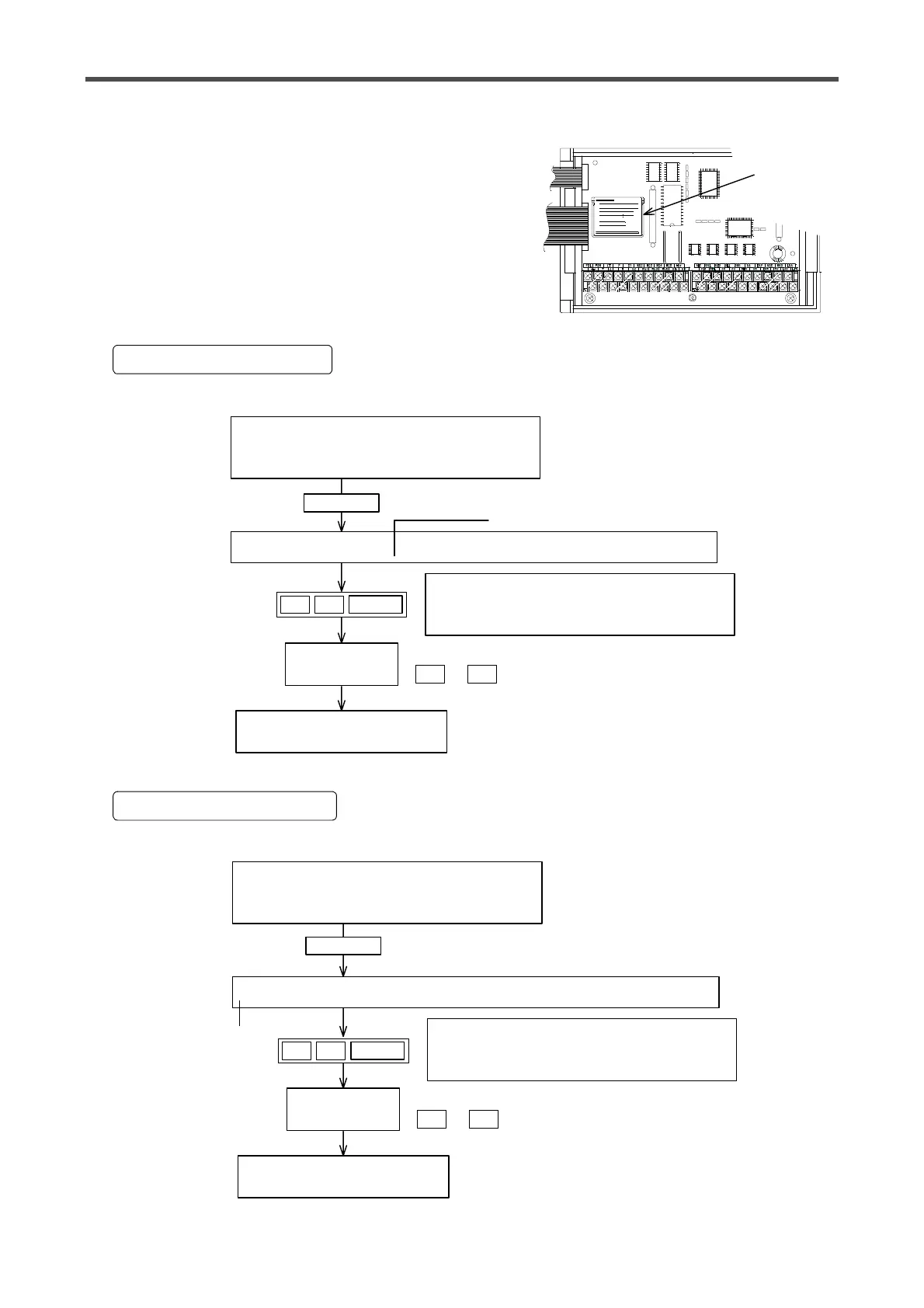

9.4 Copies data settings to other controller
• All the set data saved in the tension controller except the
external input from the trimmer or others and internal mon-
itor values can be written, read and compared between the
memory cassette FX-EEPROM - 4 (or FX-EEPROM-8).
• By transferring the data from the memory cassette in
which the operation constants and parameters in accor-
dance with each material to the tension controller, the unit
can be activated easily at a local site.
Read the data from the original controller to copy the settings.
Writes the settings of the original controller on the new controller.
Memory
cassette.
1. Storing data on cassette
M M . C A S S . C A S S E T T E D A T A T R A N S F E R
 C A S S → L E - 4 0 :  L E - 4 0 → C A S S  C A S S = L E - 4 0:
E
Turn off the power supply. Load the memory
cassette. Before writing on the memory
cassette, turn off the memory protect switch.
Select " LE - 40→CASS "
If the model name does not agree or the write
protect switch is turned on,"DATA ERROR"
message is displayed.
"Completed" is
displayed
After completion, switching items by the
or key is not possible.
WX
Turn off the power. Remove or
replace the memory cassette
When executing other operation after completing
this process, turn on the power supply again.
Power ON
No control output will be generated
while the memory cassette is loaded.
WX
ENTER
2. Writing data on cassette
M M . C A S S . C A S S E T T E D A T A T R A N S F E R
 C A S S → L E - 4 0 :  L E - 4 0 → C A S S  C A S S = L E - 4 0:
E
Turn off the power supply. Load the memory
cassette. Turn on the memory protect switch
on the memory cassette.
Select " CASS → LE - 40"
If the model name does not agree or the write
protect switch is turned on,"DATA ERROR"
message is displayed.
"Completed" is
displayed
After completion, switching items by the
or key is not possible.
WX
Turn off the power. Remove or
replace the memory cassette
This completes copying the data.
Adjust the zero and span and set the password
again before starting the trial operation and
adjustment.
Note that, if the data is transferred from
the cassette to the main system, the data
having been established will disappear.
WX
ENTER
Power ON
