38
8.3 Varies stall
• Given 0 to 5V input, the stall setting value becomes 0 to 100%
output. Connect this signal to the terminal A12 or A13.
• When the stall memory reset input [ MC4 ] is turned ON or the
output on/off switch on the panel changes from ON to OFF, this
value is preset in the stall memory value.
• This input is valid if it is greater than the internal stall settings.
See the notes on the page 37.
• To change the stall setting input to the setting by the external analog input, use the "A12" or "A13” set-
ting screen within "SWITCH" on the initial setting screen or the engineer screen.
8.4 Varies taper ratio
• Given 0 to 5V input by, for example, an external controller, the
taper ratio setting value becomes 0 to 80% when the reel diam-
eter is set internally or 0 to 100% when the reel diameter is set
externally.
Connect this input to the terminal A12 or A13.
• This input is valid if it is greater than the taper ratio setting value
by the key entry. See the notes on the page 37.
• To change the stall setting value input to the setting by the external analog input, use the "A12" or "A13”
setting screen within "SWITCH" on the initial setting screen or the engineer screen.

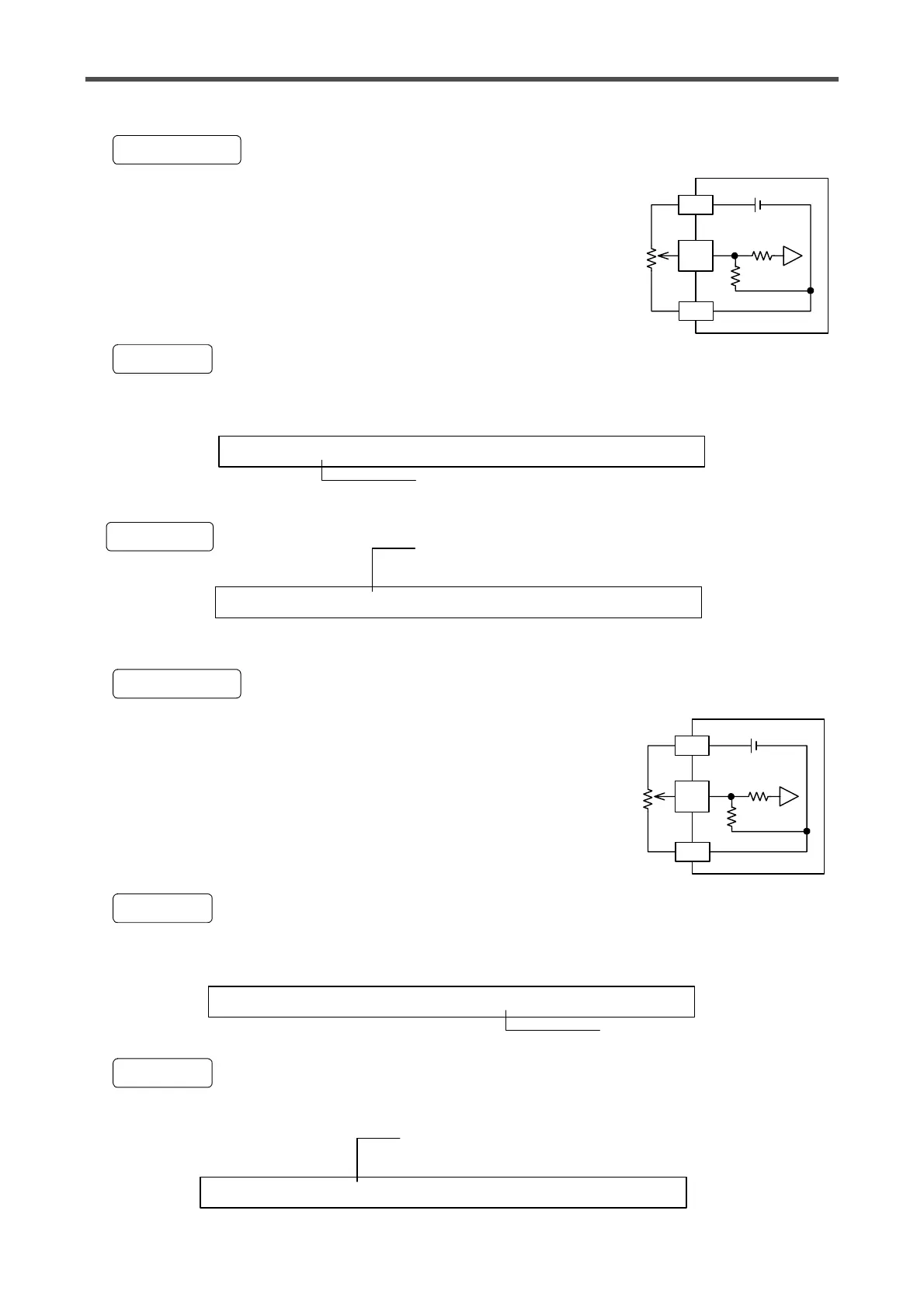

1. Connection
AIC
100kΩ
Stall
+5V
AI2
AI3
2. Setting
A 2 S E L E C T A I 2 A N A L O G I N P U T
D I A . : S T A L L : N E W R . : T A P E R : T N S N .
I
Select "STALL"
T N S N . → # # # # N
S A L L S E T E X T .
S E T → # # # %
T
When the external analog input is valid, message "EXT."
appears on the "Stall set" screen as shown below. If "EXT." is
gone, the key setting value is greater and is therefore valid.
3. Display
1. Connection
AIC
100kΩ
+5V
AI2
AI3
Taper
ratio
2. Setting
A 2 S E L E C T A I 2 A N A L O G I N P U T
D I A . : S T A L L : N E W R . : T A P E R : T N S N .
I
Select "TAPER"
3. Display
T N S N . → # # # # N
T P E R S E T E X T .
S E T → # # # %
A
When the external analog input is valid, message "EXT."
appears on the "Taper set" screen as shown below. If "EXT."
is gone, the key setting value is greater and is therefore valid.
