4.8 Display Unit [M80]
4.8.1 8.4-type (FCU8-DU121-12)

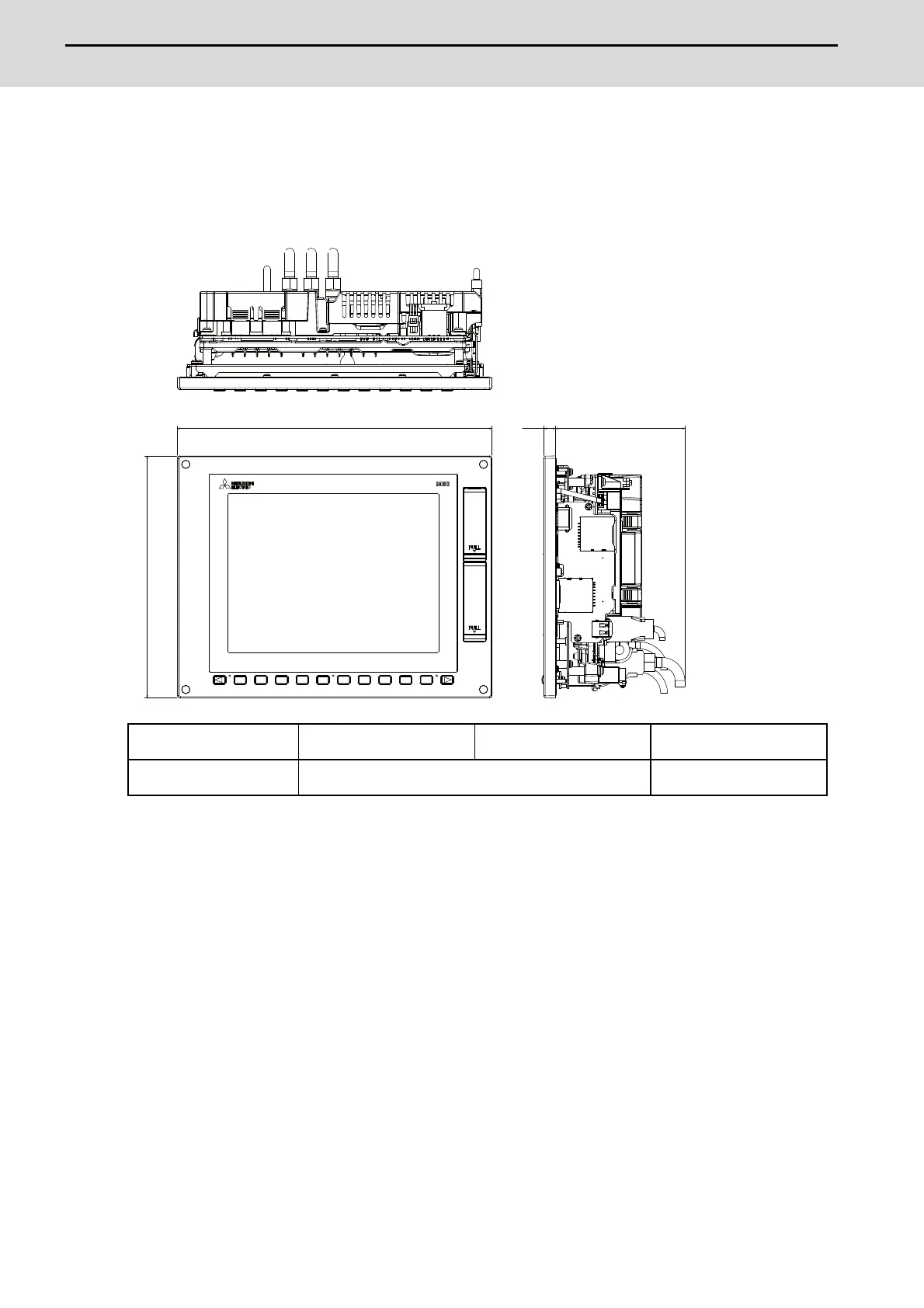

[Outline dimension]
(Note 1) The 8.4-type display unit is incompatible with the touchscreen.
(Note 2) The figure above shows the state with the control unit mounted.
Option relay unit
not mounted
Option relay unit,
FCU8-EX702 mounted
Option relay unit,
FCU8-EX703 mounted
A
(Space required for wiring)
110 114
260
200
9.5
[mm]
A
(Space required for wiring)
