M800S/M80/E80 Series Connection and Setup Manual
7 Connection of Control Unit
230
IB-1501269-J

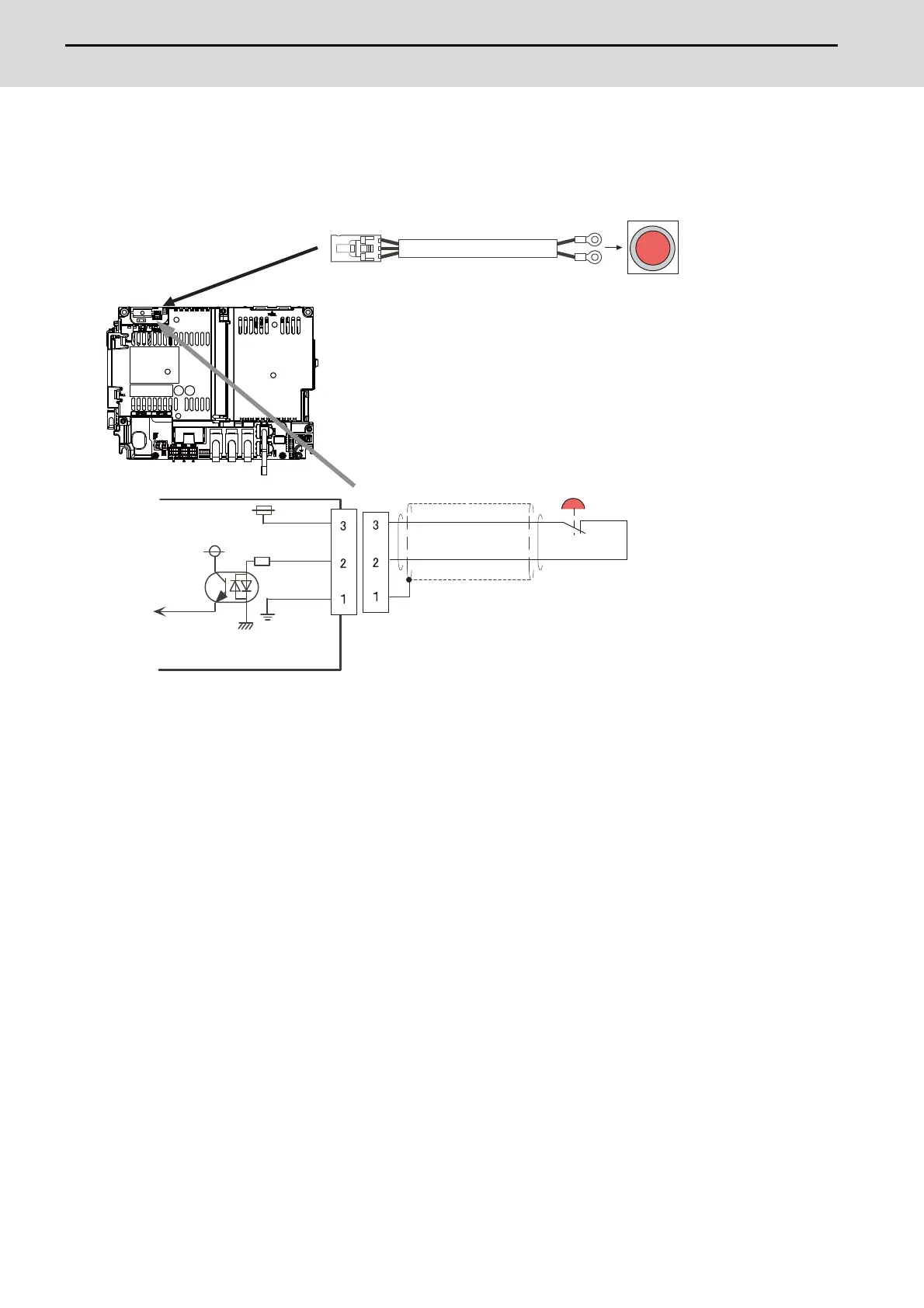

7.3 Connecting with Emergency Stop Signal
Connect the emergency stop switch to EMG connector of the control unit.
<Related items>
Cable drawing: "Cable: J120 Cable"
Connector pin assignment: "General Specifications: Control Unit" (EMG connector)
J120
+24V
EMGIN
LG
R
FG
EMG
Control unit
Control unit
Emergency stop input circuit
Emergency
stop switch
Emergency
stop switch
