M800S/M80/E80 Series Connection and Setup Manual

15 Cable

355

IB-1501269-J

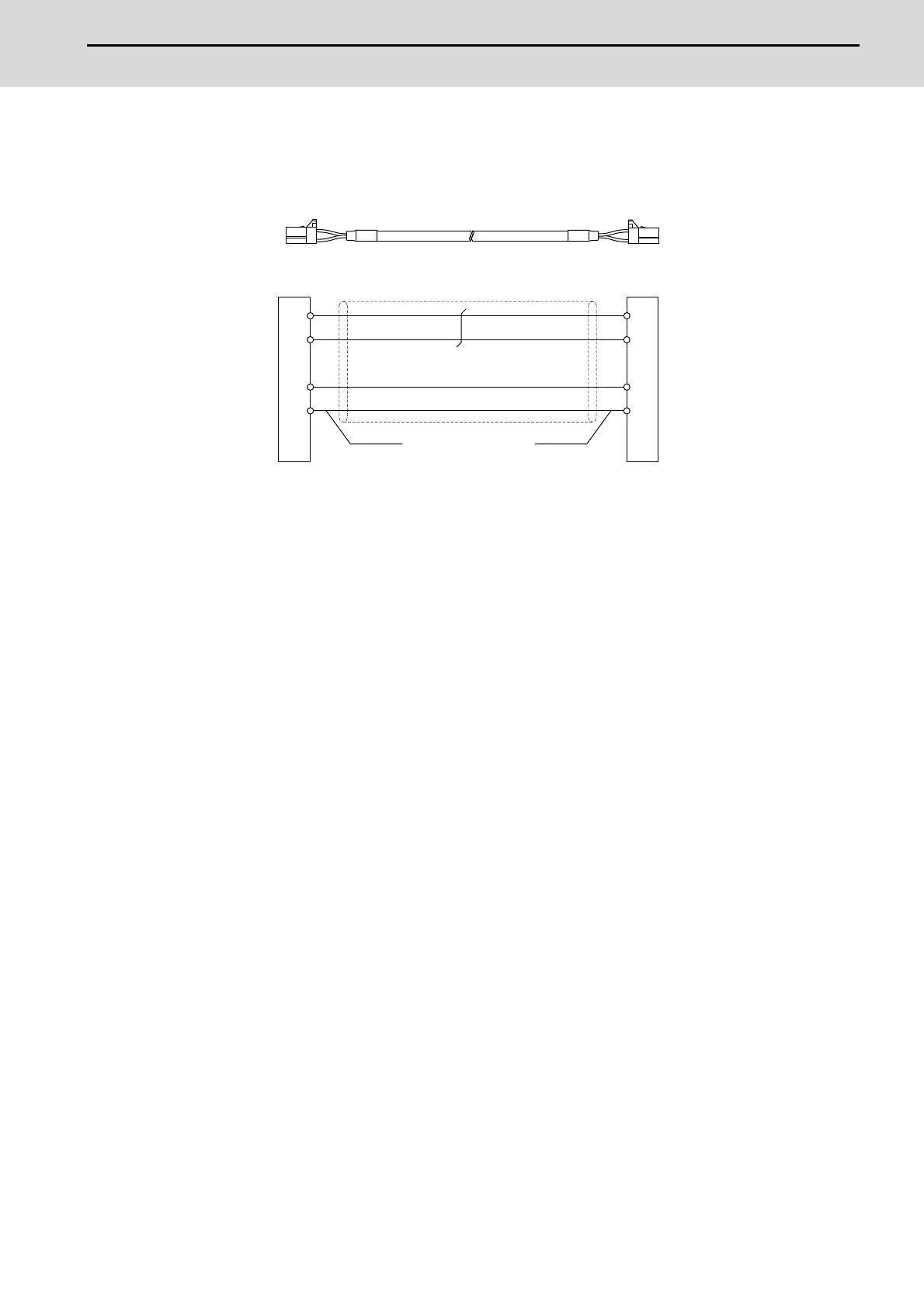

15.2.16 J210 Cable

Max. cable length: 50m

Application: Remote I/O 2.0 communication cable

(Note 1) Use the wire material of which impedance characteristics is 110Ω.

[RIO]

Connector : 1-1318119-3

Contact : 1318107-1

Recommended manufacturer :

Tyco Electronics

Wire material : HK-SB/20276XL Black LF 2P × 22AWG

Recommended manufacturer :

Taiyo Cabletec

RIO RIO

TXRXD

TXRXD*

TXRXD

TXRXD*

AWG22

×2P

Drain wire

(With shield / drain wire)

Drain wire

Table of Contents30
