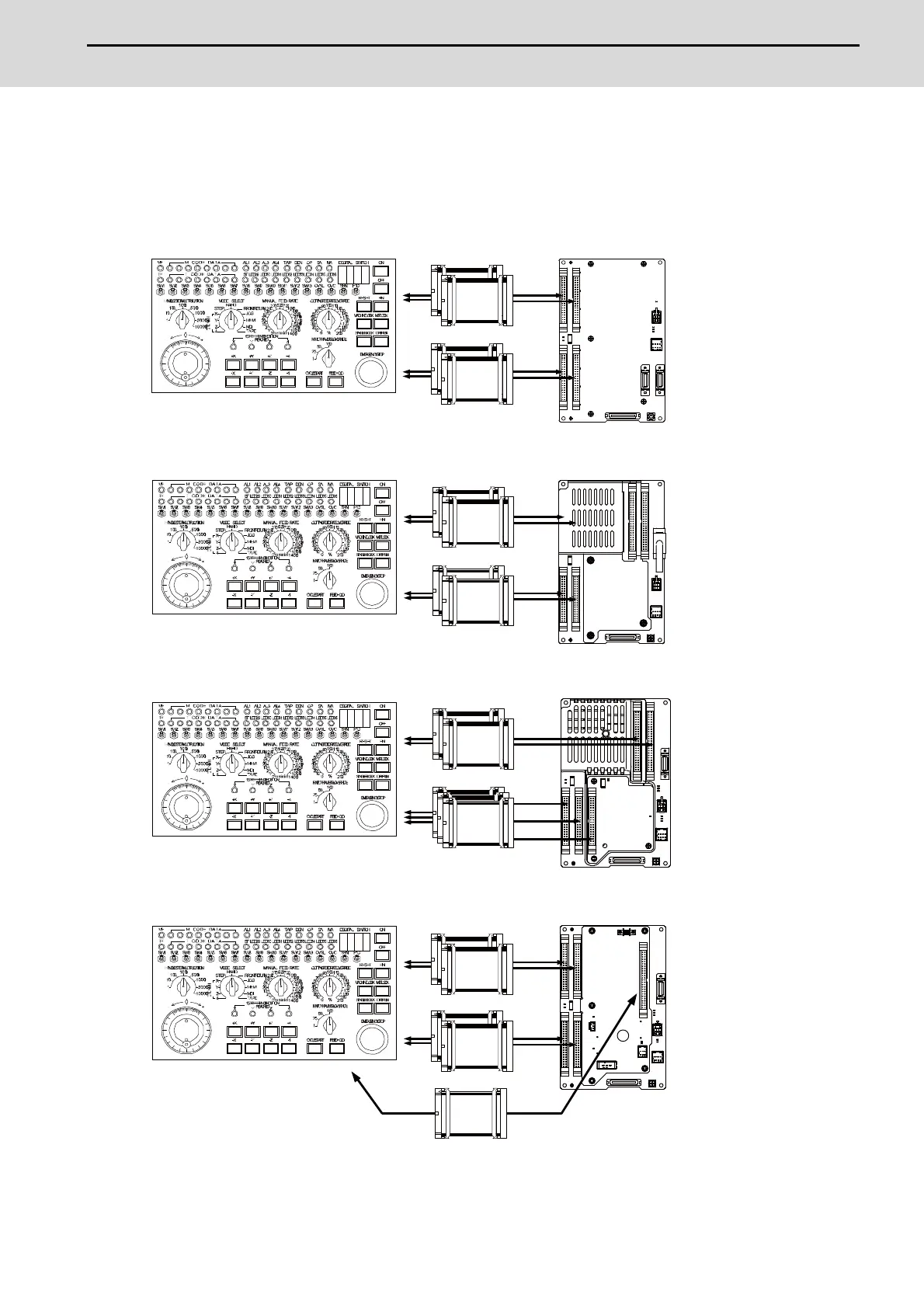

9.8 Connecting with Machine Operation Panel
Connect the machine operation panel to CG31/CG32/CG35/CG36/CJ37/CJ38/CJ39/CJ40/CJ42/OPKB connector of the
operation panel I/O unit.
[FCU8-DX731]
[FCU8-DX750/DX761]
[FCU8-DX760]
[FCU8-DX834]
<Related items>
Cable drawing: "Cable: J350 Cable", "Cable: J460 Cable"
Connector pin assignment: "General Specifications: Operation Panel I/O Unit" (CG31/CG32/CG35/CG36/CJ37/
CJ38/CJ39/CJ40/CJ42/OPKB connector)
CG31
CG32
CG35
CG36
J350
J350
FCU8-DX731
Machine operation panel (example)
CJ37
CJ38
CJ39
CJ40
J350
J460
FCU8-DX750/DX761
Machine operation panel (example)
J350
J460
FCU8-DX760
CJ37
CJ39
CJ38
CJ40
CJ42
Machine operation panel (example)
CG31
CG32
CG33
CG34
OPKB
J350
J350
J460
FCU8-DX834
Machine operation panel (example)
