M800S/M80/E80 Series Connection and Setup Manual
13 Connection of MITSUBISHI CNC Machine Operation Panel
329
IB-1501269-J

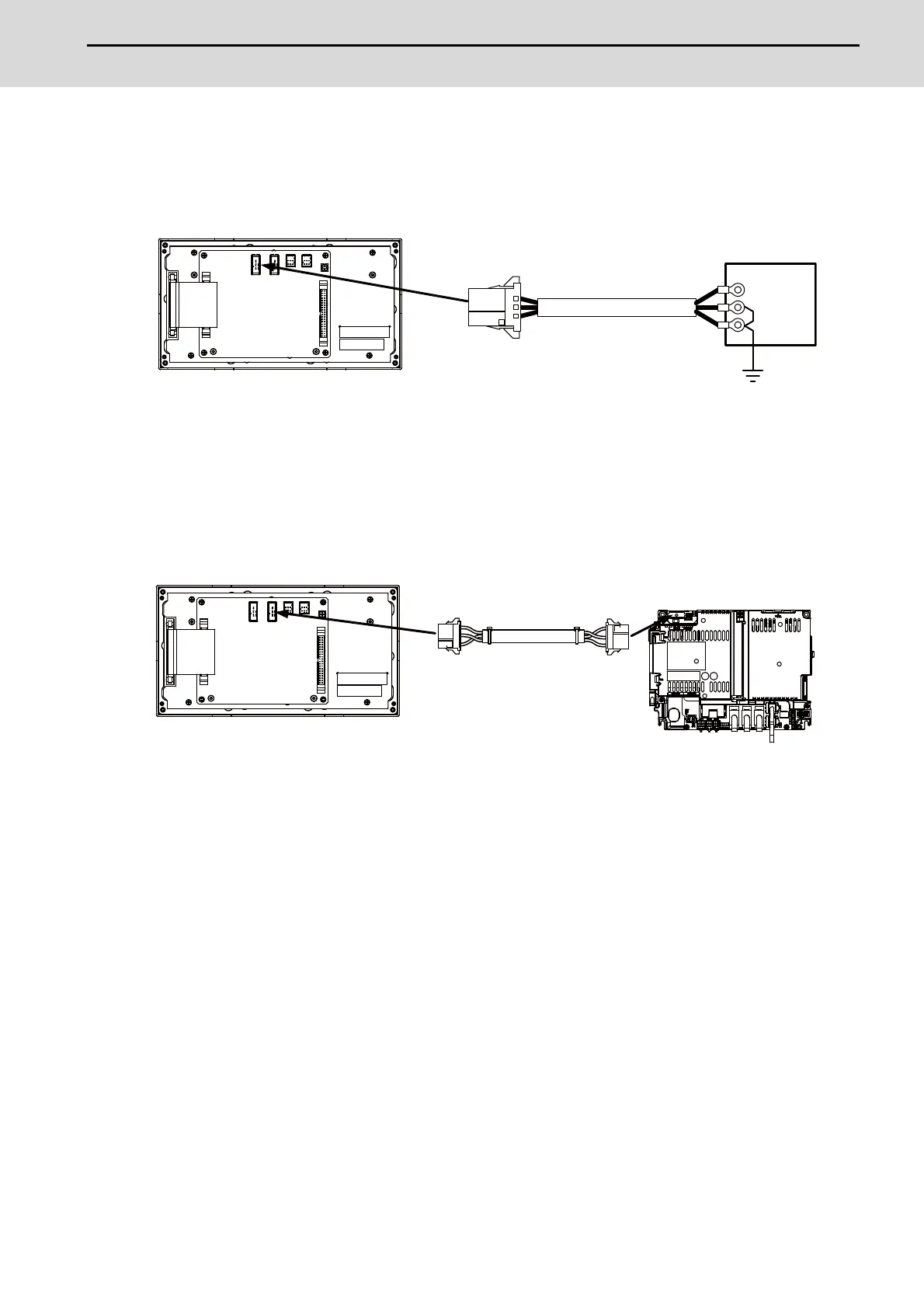

13.2 Connecting with Power Supply
Connect 24VDC power supply (general-purpose stabilized power supply) to the main panel of the machine operation
panel.
[FCU8-KB921/KB922/KB923/KB924/KB925/KB926]
<Related items>
Cable drawing: "Cable: J070/J071 Cable"
Connector pin assignment: "General Specifications: MITSUBISHI CNC Machine Operation Panel: Main Panel A,B"
(DCIN connector)
When sharing the 24VDC power supply with the control unit, connect a 24VDC relay cable.
[FCU8-KB921/KB922/KB923/KB924/KB925/KB926]
<Related items>
Cable drawing: "Cable: G071 Cable"
Connector pin assignment: "General Specifications: MITSUBISHI CNC Machine Operation Panel: Main Panel A,B"
(DCOUT connector)
DCIN
J070/J071
1 2 3
Y
0V
FG
24VDC(+)
Stabilized power supply
G071
DCOUT
DCIN
Y
Y
Control unit
To Next Page
