M800S/M80/E80 Series Connection and Setup Manual
4 General Specifications
66
IB-1501269-J
4.8.2 10.4-type (FCU8-DU141-32)

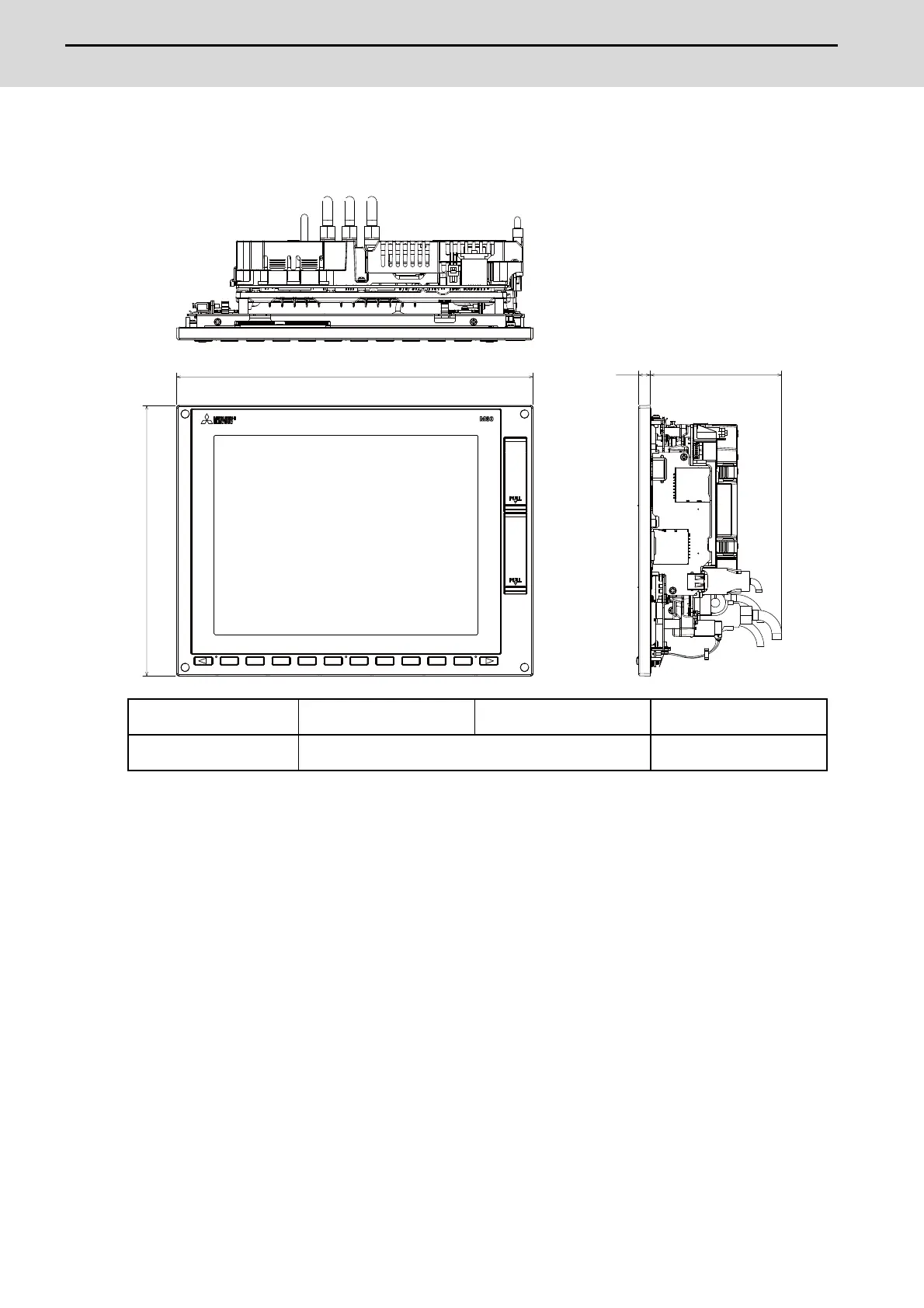

[Outline dimension]
(Note) The figure above shows the state with the control unit mounted.
Option relay unit
not mounted
Option relay unit,
FCU8-EX702 mounted
Option relay unit,
FCU8-EX703 mounted
A
(Space required for wiring)
110 114
290
220
9.5
[mm]
A
(Space required for wiring)
