M800S/M80/E80 Series Connection and Setup Manual
5 Installation
201
IB-1501269-J
5.3 Unit Installation
5.3.1 Display Unit
Mount the display unit with the prescribed number of fixing screws.
(Note) Refer to "General Specifications: Display Unit" for the panel cut dimension drawing and the screw hole
position.

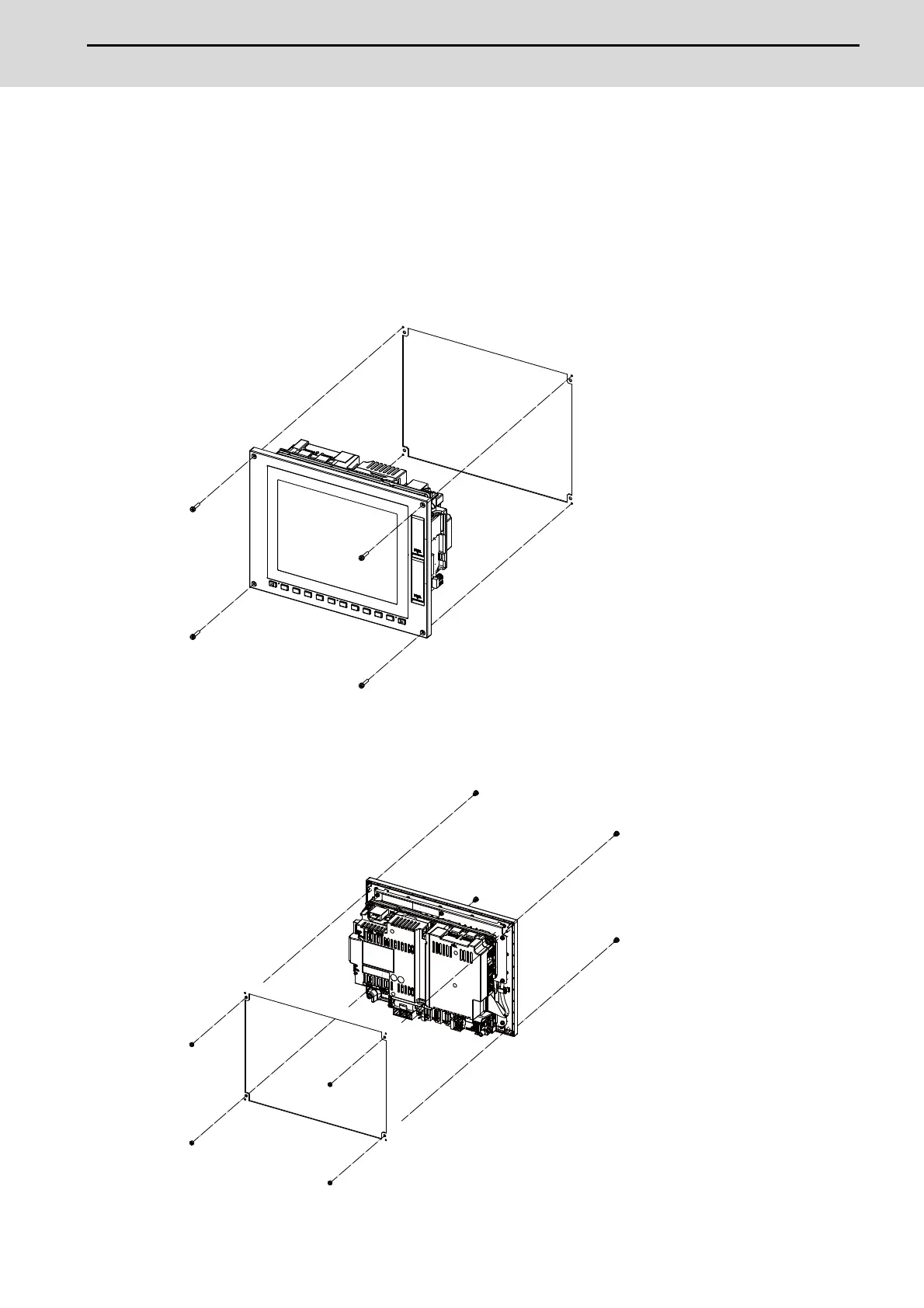

[FCU8-DU121 (8.4-type display unit)]
- Fixed on the front side
Fixing screw: Cheese head screw M3 (4 pcs).
(Fixing screws are provided with the unit.)
- Fixed on the back side
Fixture: M3 nut (4 pcs).
(4 pcs of the screw caps (a) are provided with the unit.)
(a)
